Tormach 1300PL Operator's Manual

Hide thumbs Also See for 1300PL:
Table of Contents

Advertisement

Quick Links

Download this manual
Original Instructions
OPERATOR'S MANUAL
Version 0820B

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1300PL and is the answer not in the manual?

Questions and answers

Related Manuals for Tormach 1300PL

Summary of Contents for Tormach 1300PL

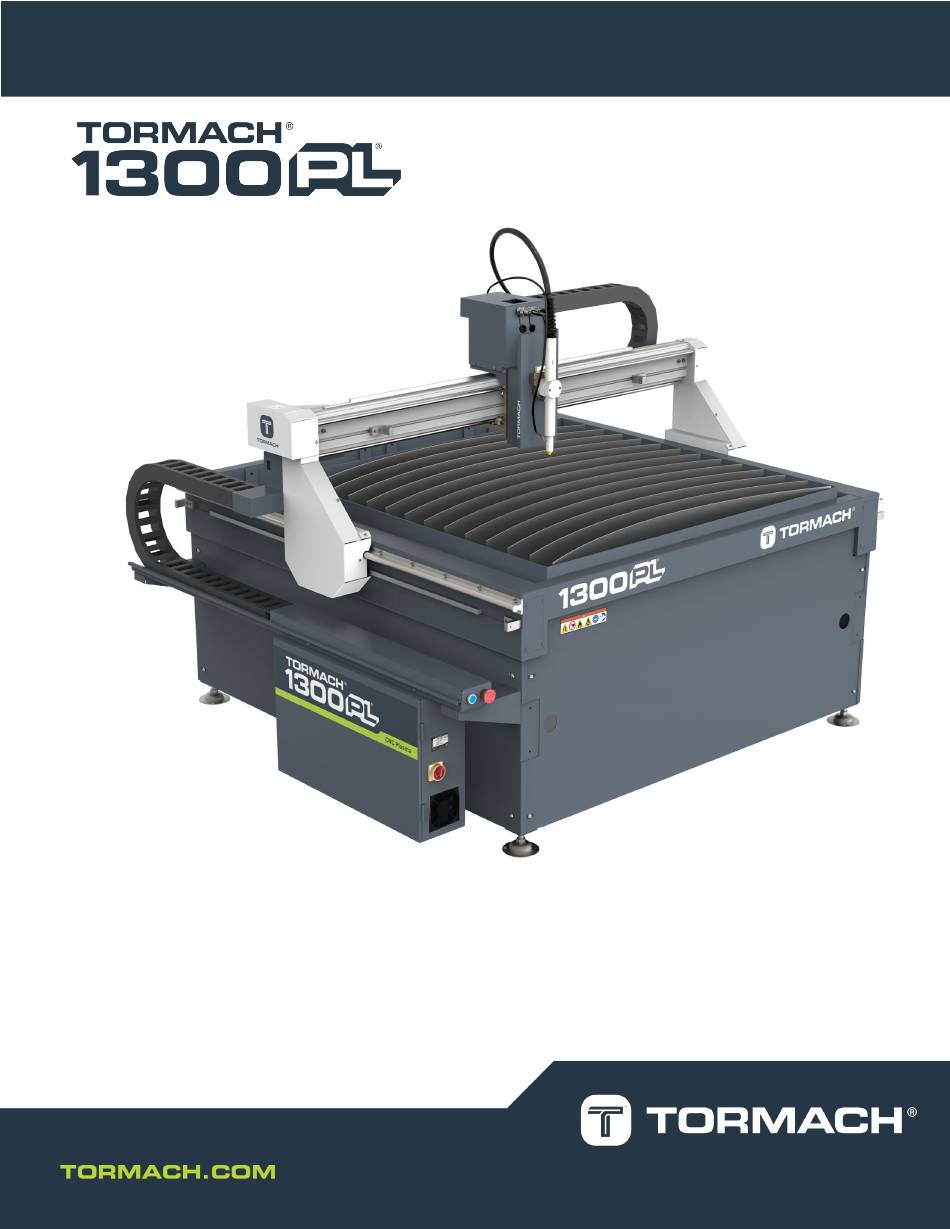

  • Page 1 Original Instructions OPERATOR'S MANUAL Version 0820B...
  • Page 2 Copyright Notice Information is subject to change without notice by Tormach, Inc. For the most recent version of this document, see tormach.com/support. You're welcome to make copies of this document for evaluating, learning about, and/or using the machine. You may not charge for any copies you make beyond the cost of printing.
  • Page 3 Any accessories that you have for your machine. implied. All information provided is on an as is basis. The authors, publisher, and Tormach, Inc. ("we", "us", and so on) A clear and concise description of the issue. shall not have any liability for, or responsibility to, any person...
  • Page 4 ©Tormach® 2020 Page 4 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 5: Table Of Contents

    3.2.1 Electrical Requirements 3.2.2 Power Requirements 3.2.3 Plasma Source Power Requirements 3.2.4 Options for Non-Conforming Sites 3.3 Air Requirements ©Tormach® 2020 Page 5 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 6 4.14.3 Configure the Optional Touch Screen Kit SYSTEM BASICS 5.1 System Reference 5.1.1 Water Table 5.1.2 Z Torch Head ©Tormach® 2020 Page 6 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 7 8.2.3 Monthly 8.2.4 Semi-Annually 8.2.5 As Needed 8.3 Adjust Belt Tension 8.4 Adjust Rack and Pinion Preload ©Tormach® 2020 Page 7 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 8 11.5 Plasma Source Control 11.6 Machine Control Board 11.7 Torch Limit and Breakaway Switches 11.8 Accessory and Auxiliary Power ©Tormach® 2020 Page 8 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 9 TABLE OF CONTENTS 11.9 Grounds ©Tormach® 2020 Page 9 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 11: Safety

    SAFETY IN THIS SECTION, YOU'LL LEARN: About the standards and safety precautions associated with this machine. Before operating the machine in any way, you must read and understand this section. Safe operation of the machine depends on its proper use and the precautions you take. Only trained personnel —...

  • Page 12: Intended Use

    ANSI B11.TR3-2000 Risk Assessment and Risk injury. Reduction — A Guideline to Estimate, Evaluate, and Reduce Risks Associated with Machine Tools ©Tormach® 2020 Page 12 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 13: Property Damage

    Do not remove any safety decals. If any safety lockout/tagout device to secure the Main Disconnect decals become worn or damaged, contact Tormach Technical switch in the OFF position. Points in the electrical Support for guidance on receiving replacement decals.

  • Page 14: On The Gantry And The Plasma Head

    Wear closed-toed safety shoes. ©Tormach® 2020 Page 14 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 15: Operational Safety

    Never modify, defeat, or bypass safety devices or Become familiar with all physical and software controls. interlocks. ©Tormach® 2020 Page 15 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 16: Workholding

    — require access to or modification of wiring inside of the electrical cabinet. Only qualified electrical machinery technicians shall perform these procedures. ©Tormach® 2020 Page 16 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 17: About Your Machine

    ABOUT YOUR MACHINE IN THIS SECTION, YOU'LL LEARN: About this machine's specifications. CONTENTS 2.1 Performance Expectations Reference 2.2 Specifications Reference...

  • Page 18: Performance Expectations Reference

    Note: The resolution of motion is the minimum discrete positional move. Repeatability ±0.001" (±0.0254 mm) Positional Accuracy ≤0.005 in./ft (130 micron / 300 ©Tormach® 2020 Page 18 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 19: Specifications Reference

    Guideways Precision Linear Guideway Power Transmission Planetary Gear (X Axis) 5mm HTD Belt (Y Axis) Machine Construction ©Tormach® 2020 Page 19 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 20 Resolution 0.0005" (.0127 mm) Repeatability ±0.001" (±0.0254 mm) Positional Accuracy ≤0.005 in./ft (130 micron / 300 mm) ©Tormach® 2020 Page 20 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 21: Site Requirements

    SITE REQUIREMENTS IN THIS SECTION, YOU'LL LEARN: About the site requirements of this machine (including electrical and power requirements). Before operating the machine in any way, you must read and understand this section. CONTENTS 3.1 General Site and Space Requirements 3.2 Electrical and Power Requirements 3.3 Air Requirements 3.4 Plasma Source Requirements...

  • Page 22: General Site And Space Requirements

    For example, when using 220V ©Tormach® 2020 Page 22 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 23: Options For Non-Conforming Sites

    3.4 PLASMA SOURCE REQUIREMENTS Tormach recommends either the Hypertherm Powermax 45 XP or the Powermax 65 plasma sources for use with the 1300PL. Plasma sources ordered directly from Tormach will include the correct CNC control interface and cables. If you would like to use your own plasma source, the minimum requirements are as follows: Blowback style arc-start.

  • Page 25: Installation

    INSTALLATION IN THIS SECTION, YOU'LL LEARN: About the installation process required for this machine. Before operating the machine in any way, you must read and understand this section. CONTENTS 4.1 Before You Begin 4.2 Move the Pallet 4.3 Unpack the Machine Crate 4.4 Remove Frame from Crate 4.5 Level the Machine Frame and Water Table 4.6 Install Side Panels and Cable Carriers...

  • Page 26: Before You Begin

    Verify the received goods against the packing list. If there is any damage or shortages, you must contact Tormach within 30 days of receipt. Email support@tormach.com to contact Tormach Technical Support for guidance on how to proceed.

  • Page 27: Open The Crate

    If there is any damage or shortages, you must contact confident in its safe operation. Tormach within 30 days of receipt. Email support@tormach.com to contact Tormach Technical 4.4.1 Lifting Frame Support for guidance on how to proceed.
  • Page 28 Use a pry bar to push the lower leg mounting pockets off of the crate mounting bosses. ©Tormach® 2020 Page 28 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 29: Installing Legs And Righting Machine

    The water table can be leveled at any time, but it is easiest to do before the side panels have been installed. ©Tormach® 2020 Page 29 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 30: Level The Machine Frame

    1. Examine the level on the water table to determine if you must make adjustments. The water table on the 1300PL is supported on two adjustable rails, one on each side of the table.

  • Page 31: Install Side Panels And Cable Carriers

    ©Tormach® 2020 Page 31 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 32: Attach The Cable Guard

    ©Tormach® 2020 Page 32 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 33: Install Plasma Torch And Lead

    Only tighten these screws enough to securely hold the torch, do not overtighten. ©Tormach® 2020 Page 33 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 34: Make Electrical Connections

    1. Bolt your machine arm to the mounting pad on either the left or right hand leg of the machine. ©Tormach® 2020 Page 34 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 35 Accessory Power in "Connectors Reference" (page 45). Repeat for the display's power cable. ©Tormach® 2020 Page 35 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 36: Fill Water Table

    A properly filled water table is critical for safe operation of the 1300PL. The water table traps a majority of the metal particulates released in the cutting process and keeping it filled is important for maintaining good air quality in your shop space.
  • Page 37 7. Follow the on-screen instructions to configure the PathPilot operating system and PathPilot controller. When configuration is complete, the PathPilot operating system launches. ©Tormach® 2020 Page 37 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 38: Power Off The Machine

    On the operator box, the blue Reset LED goes off. From the PathPilot interface, on the Status tab, the Machine OK light goes off. ©Tormach® 2020 Page 38 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 39: Testing Plasma Source Control

    5. While the pilot arc is active, watch the "Torch Voltage" readout at the bottom of your control screen. ©Tormach® 2020 Page 39 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 40: Testing Ohmic Probing

    4.13 CALIBRATE INITIAL HEIGHT SENSING 4.13.1 Set Ohmic Probing Sensitivity The ohmic probing system on the 1300PL relies on a calibrated resistance value between the torch cap and the workpiece. If you do not calibrate your ohmic probe, you may find that it is triggered by water on the work piece or inside the torch cap.

  • Page 41: Set Physical Touch Switch Trigger Depth

    Note: Detailed information on configuring and using the PathPilot controller is provided in the PathPilot The torch lifter head on the 1300PL contains a spring-loaded manual at tormach.com/support.. switch to serve as a backup for ohmic probing or to be used when ohmic probing is inconvenient.

  • Page 42: Configure The Optional Touch Screen Kit

    1. From the PathPilot interface, on the Main tab, in the MDI Line DRO field, type ADMIN TOUCHSCREEN. Then select the Enter key. 2. Follow the on-screen instructions. ©Tormach® 2020 Page 42 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 43: System Basics

    SYSTEM BASICS IN THIS SECTION, YOU'LL LEARN: About the main components of the machine and how it moves. Before operating the machine in any way, you must read and understand this section. CONTENTS 5.1 System Reference 5.2 Basic Controls Reference 5.3 Connectors Reference 5.4 Plasma Source Control 5.5 Plasma Settings Reference...

  • Page 44: System Reference

    This can be useful in situations like cutting painted metal, where no continuity with the workpiece is possible. ©Tormach® 2020 Page 44 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 45: Basic Controls Reference

    3. Ohmic Cap Connector Input for the ohmic probing circuit. Also connects machine grounds to the cabinet ground. ©Tormach® 2020 Page 45 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 46 (and the cable that connects to it) sends all communication between the PathPilot interface and the machine. ©Tormach® 2020 Page 46 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 47: Plasma Source Control

    5: SYSTEM BASICS 5.4 PLASMA SOURCE CONTROL The 1300PL uses a 7-pin connector for controlling the plasma source. A 7-pin to 14-pin cable is included with your machine to control Hypertherm plasma sources. The pin-out of the 7-pin connector on the electrical cabinet is as follows:...

  • Page 48: Plasma Settings Reference

    5.5 PLASMA SETTINGS REFERENCE LED. Very slowly, jog downwards until the LED comes on. PathPilot for the 1300PL has several machine-specific settings that you might need to adjust after setting up your machine. Note: For a full overview of how to use PathPilot, refer to the PathPilot manual at tormach.com/support.

  • Page 49: Enable Ohmic Touchoff

    Disable this setting if your plasma source does not supply an arc-ok signal. ©Tormach® 2020 Page 49 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 51: Basic Operations

    BASIC OPERATIONS IN THIS SECTION, YOU'LL LEARN: About the basic operations required for most projects, organized as a suggested project workflow. CONTENTS 6.1 Selecting a Method for Initial Height Sensing (IHS) 6.2 Making Your First Cuts 6.3 Use the AutoFS Material Picker...

  • Page 52: Selecting A Method For Initial Height Sensing (Ihs)

    IHS system. This guarantees a consistent pierce height, which prolongs consumable life. M200 (AutoFS) The 1300PL has two methods of detecting the Z location of the G15 (probe) workpiece before a cut. Choose which method to use based on G16 (pierce) your workpiece, cutting situation, and machine setup.

  • Page 53: Running The Test Program

    6.3 USE THE AUTOFS MATERIAL PICKER test cut in. PathPilot on the 1300PL is designed so that you do not need to 2. Place the metal on the cutting table and connect the manually program feeds and speeds in your G-code. Instead, ground clamp to it.

  • Page 54: Using Autofs

    DRO fields. 2. Select Save. The values are stored as a new preset for that material. ©Tormach® 2020 Page 54 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 55: Programming

    PROGRAMMING IN THIS SECTION, YOU'LL LEARN: About the languages that are understood and interpreted by PathPilot. CONTENTS 7.1 Plasma Specific G-Codes 7.2 Plasma Specific M-Codes...

  • Page 56: Plasma Specific G-Codes

    7: PROGRAMMING 7.1 PLASMA SPECIFIC G-CODES Note: For information on all other supported G- and M-codes, refer to the PathPilot manual at tormach.com/support. G-Code Name Description Workpiece Probe vertically downwards towards the end of travel until the ohmic cap contacts the work piece.
  • Page 57 M01 break to allow the user to set the specified Automatic. air pressure. ©Tormach® 2020 Page 57 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 59: Machine Maintenance

    MACHINE MAINTENANCE IN THIS SECTION, YOU'LL LEARN: About the required maintenance procedures that you must do so that this machine operates as designed. Before operating the machine in any way, you must read and understand this section. CONTENTS 8.1 Maintenance Safety 8.2 Maintenance Schedules 8.3 Adjust Belt Tension 8.4 Adjust Rack and Pinion Preload...

  • Page 60: Maintenance Safety

    Tools and Items Required 8.1.2 Swarf Maintenance Procedures Allen Key Set Wear work gloves. The drive belts on the 1300PL should be checked for wear and tensioned several times a year to avoid lost motion and 8.2 MAINTENANCE SCHEDULES reduced machine accuracy.

  • Page 61: Adjust Rack And Pinion Preload

    Allen Key Set Crescent Wrench The rack and pinion gear drive on the 1300PL uses a spring preload to allow the pinion gear to self adjust to compensate wear on the rack and reduce backlash. It is preset at the factory and will not need frequent adjustment.

  • Page 62: X-Axis

    1/4" (6 mm) from its fully slack position. 3. Reinstall all belt covers and guards. ©Tormach® 2020 Page 62 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 63: Troubleshooting

    TROUBLESHOOTING IN THIS SECTION, YOU'LL LEARN: About common causes of failure in this machine, and our recommendations for diagnosing and correcting them. WARNING! Electrocution Hazard - Electrical Cabinet: Do not make or disconnect connections under power. Before operating the machine in any way, you must read and understand this section. CONTENTS 9.1 Ohmic Probing 9.2 Touch Off...

  • Page 64: Ohmic Probing

    How to test ohmic probing: Open the electrical cabinet and locate the Tormach THCT Board (PN 39096). Have a helper touch the ground clamp to the torch cap and watch LED D8 on the bottom left of the board. If the LED lights up when the ground clamp contacts the torch cap, the THCT board is measuring contact between the cap and ground as intended.
  • Page 65 Probability How-To Steps Need More? Sensitivity is adjustable to account for 1. Open the electrical cabinet and locate the Tormach THCT board (PN different workpiece materials and 39096). situations (wet metal). 2. Adjust the "RV1" potentiometer clockwise to increase the sensitivity, until See "Calibrate Initial Height Sensing"...

  • Page 66: Ohmic Probe Triggers Early Or Between Cuts

    2. Open the electrical cabinet and locate the Tormach THCT board (PN 39096). 3. Adjust the "RV1" potentiometer counterclockwise to decrease the sensitivity until the ohmic probe is not triggered by the water but is still triggered if you lift the workpiece to touch the torch cap.

  • Page 67: Touch Off

    ©Tormach® 2020 Page 67 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 68: Voltage Feedback

    If you do read a voltage, proceed to checking THCT communication with the Machine Control Board. ©Tormach® 2020 Page 68 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 69: Torch Height Control

    P value in your G-Code is appropriate for the feed rate, cut current and consumables you are using according to the manufacturer's cut charts. ©Tormach® 2020 Page 69 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 70: Torch Drags On The Material When Cutting

    Control may not be able to activate and take over control of the Z axis because of safety limits on torch voltage. ©Tormach® 2020 Page 70 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 71: Servo Drives

    How-To Steps Need More? High Check for loose wires between the power supply and backfeed clamp (PN The servos used in the 1300PL feed a 39102). significant amount of energy back into the power supply when braking. This Power off the main breaker.
  • Page 72 If you see no activity from the CLAMP LED and either axis faults during the test, replace your backfeed clamp. ©Tormach® 2020 Page 72 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 73: Diagrams And Parts Lists

    DIAGRAMS AND PARTS LISTS IN THIS SECTION, YOU'LL LEARN: About this machine’s components. NOTICE! Only use Tormach-approved parts when making replacements. If you don't replace parts with those listed in this section, you may void your warranty. CONTENTS 10.1 Base Machine Exploded View 10.2 Base Machine Parts List...

  • Page 74: Base Machine Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.1 BASE MACHINE EXPLODED VIEW ©Tormach® 2020 Page 74 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 75: Base Machine Parts List

    Water Table Assembly (PN 50003) Y-Axis Gantry Assembly (PN 50004) X-Axis Carriage Assembly (PN 50005) Z-Axis Lifter Assembly (PN 50006) ©Tormach® 2020 Page 75 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 76: Frame Assembly Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.3 FRAME ASSEMBLY EXPLODED VIEW ©Tormach® 2020 Page 76 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 77: Frame Assembly Parts List

    Screw, Socket Head Cap, M04 × 0.7 × 006 (PN 20001) Machine Foot, Leveling, M16 × 2 Thread (PN 50119) ©Tormach® 2020 Page 77 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 78 Energy Chain Link, Wide (PN 50017) Energy Chain End Link, Wide, Internal Tabs (PN 50819) Energy Chain End Link, Wide, External Tabs (PN 50820) ©Tormach® 2020 Page 78 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 79: Water Table Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.5 WATER TABLE EXPLODED VIEW ©Tormach® 2020 Page 79 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 80: Water Table Assembly Parts List

    Water Table Roller Axle (PN 50118) Water Table Roller Spacer (PN 50034) Washer, Flat, M8 (PN 30531) ©Tormach® 2020 Page 80 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 81: Y-Axis Gantry Assembly Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.7 Y-AXIS GANTRY ASSEMBLY EXPLODED VIEW ©Tormach® 2020 Page 81 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 82: Y-Axis Gantry Assembly Parts List

    Y-Axis Drive Lock Washer (PN 50065) Plasma Y-Axis Servo, Clearpath CPM-SDSK-3411S-ELN (PN 39104) Y-Axis Pulley Mount Plate X- Mirrored (PN 50038) ©Tormach® 2020 Page 82 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 83 Screw, Socket Head Cap, M4 × 0.7 - 6 (PN 20001) Screw, Shoulder, M6 × 1 - 10 (PN 35926) Nut, Hex, M10 (PN 36008) ©Tormach® 2020 Page 83 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 84 Screw, Socket Head Cap, M4 × 0.7 - 10 (PN 30924) Washer, Flat, M8 (PN 50821) Screw, Socket Head Cap, M8 × 1.25 - 20 (PN 31895) ©Tormach® 2020 Page 84 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 85: X-Axis Carriage Assembly Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.9 X-AXIS CARRIAGE ASSEMBLY EXPLODED VIEW ©Tormach® 2020 Page 85 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 86: X-Axis Carriage Assembly Parts List

    X-Axis Tensioner Bracket (PN 50116) Z-Axis Compression Spring (PN 50122) Screw, Socket Head Cap, M4 × 0.7 - 10 (PN 30924) ©Tormach® 2020 Page 86 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 87 10: DIAGRAMS AND PARTS LISTS Description Quantity Screw, Socket Head Cap, M10 × 1.5 - 60 (PN 20001) ©Tormach® 2020 Page 87 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 88: Z-Axis Lifter Assembly Exploded View

    10: DIAGRAMS AND PARTS LISTS 10.11 Z-AXIS LIFTER ASSEMBLY EXPLODED VIEW ©Tormach® 2020 Page 88 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 89: Z-Axis Lifter Assembly Parts List

    Screw, Socket Head Cap, M4 × 0.7 - 16 (PN 37751) Screw, Socket Head Cap, M5 × 0.8 - 30 (PN 31602) ©Tormach® 2020 Page 89 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
  • Page 90 Screw, Socket Head Cap, M6 × 1 - 16 (PN 33117) Screw, Cone Point Set, M4 × 16 90° (PN 20001) ©Tormach® 2020 Page 90 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 91: Electrical Schematics

    ELECTRICAL SCHEMATICS IN THIS SECTION, YOU'LL LEARN: About the electrical schematics for this machine’s electronics. CONTENTS 11.1 230 Vac Power 11.2 24 Vdc Controls 11.3 Axis Drive Control 11.4 A Axis Driver 11.5 Plasma Source Control 11.6 Machine Control Board 11.7 Torch Limit and Breakaway Switches 11.8 Accessory and Auxiliary Power 11.9 Grounds...

  • Page 92: Vac Power

    11: ELECTRICAL SCHEMATICS 11.1 230 VAC POWER ©Tormach® 2020 Page 92 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 93: Vdc Controls

    11: ELECTRICAL SCHEMATICS 11.2 24 VDC CONTROLS ©Tormach® 2020 Page 93 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 94: Axis Drive Control

    11: ELECTRICAL SCHEMATICS 11.3 AXIS DRIVE CONTROL ©Tormach® 2020 Page 94 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 95: A Axis Driver

    11: ELECTRICAL SCHEMATICS 11.4 A AXIS DRIVER ©Tormach® 2020 Page 95 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 96: Plasma Source Control

    11: ELECTRICAL SCHEMATICS 11.5 PLASMA SOURCE CONTROL ©Tormach® 2020 Page 96 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 97: Machine Control Board

    11: ELECTRICAL SCHEMATICS 11.6 MACHINE CONTROL BOARD 24V DC Control ECM Power Turret Control ©Tormach® 2020 Page 97 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 98: Torch Limit And Breakaway Switches

    11: ELECTRICAL SCHEMATICS 11.7 TORCH LIMIT AND BREAKAWAY SWITCHES ©Tormach® 2020 Page 98 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 99: Accessory And Auxiliary Power

    11: ELECTRICAL SCHEMATICS 11.8 ACCESSORY AND AUXILIARY POWER ©Tormach® 2020 Page 99 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...

  • Page 100: Grounds

    11: ELECTRICAL SCHEMATICS 11.9 GROUNDS ©Tormach® 2020 Page 100 UM10720: 1300PL Operator's Manual (Version 0820B) Specifications subject to change without notice. For the most recent version, see tormach.com/support...
