ShoreTel ST100DA Quick Install Manual

Introduction
The ShoreTel ST100DA Voice Switch Package Contains:
•
ShoreTel 100DA Voice Switch
•
Power cord
• Stick-on feet for surface installation
• Mounting Ears – attachable installation brackets
•
Cable retainer for the Telco cable (metal bracket with a Velcro Strap)
About the ST100DA
The ST100DA Voice Switches connect enterprise telephone extensions through an internal IP
network, or to any central office (CO) analog trunk line.
The switch provides connectivity through:
• Two RJ-45 10/100/1000 Mbps LAN connectors
• One DB-9 (female), RS-232C maintenance port (115,200 bps, 8 bits, no parity, 1
stop bit, no handshake) for serial communications
• One audio input port (3.5 mm stereo) for connecting to a music-on-hold source
• One audio output port (3.5 mm stereo) for connecting to a corporate paging
system or night bell. This port is grounded. ShoreTel provides an optional paging
adapter to provide a balanced output as well as a contact closure ideal for
overhead paging systems. Refer to the ShoreTel Paging Adapter Quick Install
Guide for information about the Paging Adapter.
• USB port for logging/troublesooting
• RJ-48C Telco port(s) for connecting the switch to a telephone company line.
• RJ-21X port for connections to analog devices

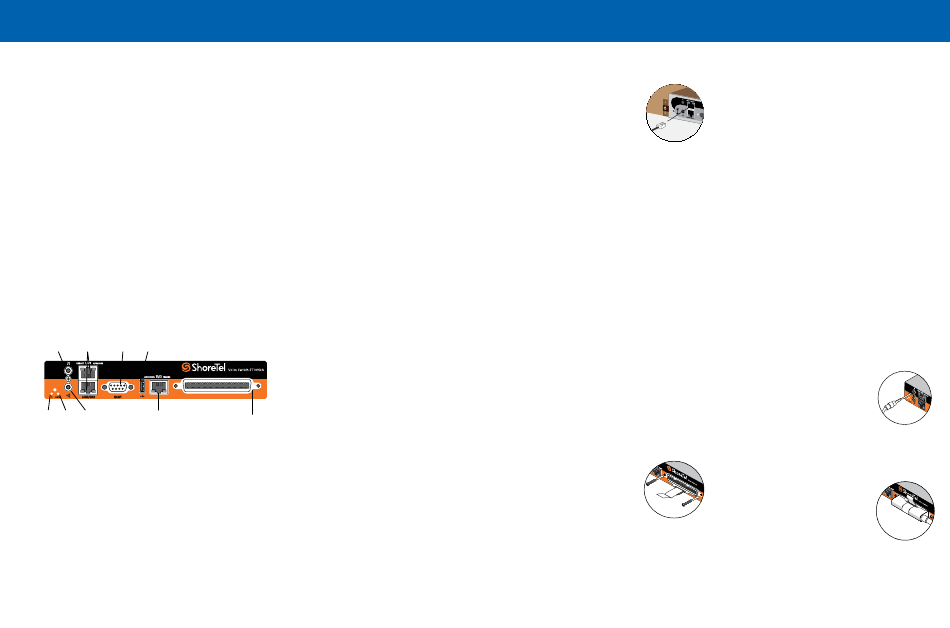

Audio 10/100/1000 RS-232C
input Mbps Ethernet maintenance USB
port ports port port
Power Audio RJ-48C
Status
LED output Telco
LED
port port
Installation Equipment
To install the switch, you need the following equipment:
• AC surge protector for the power connection
• RJ-45 cable for connecting the switch to the local area network
• Music-on-hold source with a standard mini-headphone Y-adapter (optional)
• Permanent earthing connector for grounding the device
• RJ-21 telephone cable (female connector on end that is connected to the ShoreTel
voice switch) for analog port connections
• RJ-21 to RJ-11 patch panel for connecting telephones and trunk lines
• #1 Phillips screwdriver
Installation Location Requirements
To ensure optimum operating conditions for the ST100DA voice switch, verify the
operating environment is adequately ventilated, free of gas or airborne particles, and
isolated from electrical noise.
Installation and Servicing
Installing the ST100DA in a 19-inch Rack
The ST100DA is placed in a 19-inch rack only by mounting a ShoreTel Dual Tray into the rack,
then installing the voice switch into the Tray.
Refer to the Quick Install Guide for the ShoreTel Dual Tray for Tray installation instructions and
information on using the Tray.
Installing the ST100DA on a Wall Mount
The ST100DA is placed on a wall mount by attaching the wall mount to the wall, and then
attaching the appliance to the mount. Refer to the ShoreTel Dual Tray: Wall Mount Kit Quick
Install Guide for more information.
Mounting the ShoreTel Voice Switch on a Flat Surface
If you plan to mount the switch on a flat surface, first attach the provided rubber feet to the
bottom corners of the device. You can stack up to three switches in a surface installation.
German: Das ShoreTel Voice-Schaltgerät auf einer ebenen Oberfläche
montieren
Wenn Sie planen, das Gerät auf einer ebenen Oberfläche zu montieren, befestigen Sie
zunächst die mitgelieferten Gummifüße an den unteren Ecken des Geräts. (Bei einer
Oberflächeninstallation können Sie bis zu drei Schaltgeräte übereinander stapeln.)
Attaching an Earthing Connector
To meet electrical safety requirements for proper grounding, you must connect a permanent
earthing protector between the ShoreTel voice switch and the wiring system ground.
1.
Connect a ground wire (#14 AWG wire or larger) to the screw on the back of the unit and to
the right of the product label.
2.
Connect the other end of the ground wire to the wiring system ground.
CAUTION: Always connect the permanent earthing connector before attempting to connect the
switch to a LAN segment and telecommunication lines.
German: Einen Erdungsleiter anschließen
Um den elektrischen Sicherheitsanforderungen für eine korrekte Erdung nachzukommen,
müssen Sie einen permanenten Erdungsschutz zwischen dem ShoreGear-Gerät und der Erde
des Kabelsystems installieren.
RJ-21X
port 1. Schließen Sie ein Erdungskabel (Nr. 14 AWG oder größer) an die Schraube an der Rückseite
des Geräts an, die sich rechts neben dem Produktetikett befindet.
2. Schließen Sie das andere Ende des Erdungskabels an die Erde des Kabelsystems an.
VORSICHT: Schließen Sie immer zuerst den permanenten Erdungsschutz an, bevor Sie ver-
suchen, das Gerät an ein LAN-Segment und Telekommunikationsleitungen anzuschließen.
Servicing Procedures
WARNING: The ST100DA contains no internal field serviceable parts. Return the equipment to
ShoreTel for any required service procedures.
CAUTION: Internal fuses should be serviced only by qualified ShoreTel personnel. If internal fuses
are blown and require replacement, return the ST100DA to ShoreTel for service.
WARTUNGSVERFAHREN
ACHTUNG: Der ST100DA enthält keine internen Teile, die vor Ort gewartet werden können.
Senden Sie das Gerät an ShoreTel, falls Wartungsarbeiten erforderlich sein sollten.
VORSICHT: Interne Sicherungen dürfen nur von qualifizierten ShoreTel-Mitarbeitern gewartet
werden. Wenn interne Sicherungen ausgetauscht werden müssen, senden Sie den ST100DA zur
Wartung an ShoreTel. "
Connections
Connecting the ShoreTel Voice Switch to the Network
Once the ST100DA Voice Switch is secured to a rack or surface-mounted, you can
connect it to the data network.
Use an RJ-45 Ethernet cable to connect one or both of the LAN
ports to the network subnet.
While both ports can detect and respond to link status, the switch
uses only one LAN port at a time.
Powering on the ShoreTel Voice Switch
After connecting the switch to the network, power on the device by connecting it to
an AC power source.
1. Plug an AC surge protector (not provided) into a grounded AC power source.
2. Plug one end of the provided power cord into the receptacle on the back of the
switch, then plug the other end into the AC surge protector.
The power LED flashes momentarily, and remains lit.
• If the LED is not lit, make sure the power cord is plugged into the switch and the
power source.
• If the LED continues flashing, there is an internal error. Unplug the switch to power
it off, then power it back on. Refer to the "Configuring Switches" chapter in the
ShoreTel Administration Guide for information on flash patterns, or contact the
ShoreTel Support Services at http://www.shoretel.com.
The LAN ports auto-sense the network transport rate. When the network connection
is established, the network LED indicates a transport rate of 10/100/1000 Mbps, and
whether the switch is receiving and transmitting data.
Optional Connections
After connecting the voice switch to the LAN, you can make optional connections,
including input from a music-on-hold source or output to an internal paging system.
1. Connect a music-on-hold source (CD player or other audio
source) to the audio input port.
2. Connect your site's paging system to the audio output port.
Connecting Trunk and Telephone Lines
Use the provided cable retainer to connect the voice switch to the telephone
company's punch-down block or patch panel.
1. Use a #1 Phillips screwdriver to remove the two screws on
either side of the RJ-21X port, then place the retainer on
the port and re-attach the screws.
2. Plug the Telco cable into the port, then pull the Velcro strap
tightly around the cable connector and fasten it.
3. Connect the other end of the Telco cable to the punch-down block or patch panel.
CAUTION: To reduce risk of fire, use only No. 26 AWG or larger (e.g. 24 AWG) UL Listed or
CSA certified telecommunication line cord.
VORSICHT: Um das Brandrisiko zu verringern, verwenden Sie nur Telekommunikationslei-
tungen Nr. 26 AWG oder größer (z.B. 24 AWG) mit UL- oder CSA-Zulassung
For detailed information on switch port and trunk configuration, see the "Configuring
Switches" and "Configuring Trunks" sections in the ShoreTel Administration Guide.
