ShoreTel 200 Quick Install Manual

Introduction
The ShoreTel ST200 or ShoreTel ST500 (ST200/ST500) Voice Switch Package Contains:
•
ShoreTel 200 or ShoreTel 500 Voice Switch
•
Power cord
•
Stick-on feet for surface installation
•
Mounting Ears – attachable installation brackets
About the ST200/ST500
The ST200/ST500 Voice Switch connects enterprise telephone extensions through an internal IP
network, or to any central office (CO) analog trunk line.
The switch provides connectivity through:
•
Two RJ-45 local area network (LAN) connectors
•
One DB-9 (female), RS-232C maintenance port (115,200 bps, 8 bits, no parity, 1 stop bit, no
handshake) for serial communications
•
One audio input port (3.5 mm stereo) for connecting to a music-on-hold source
•
One audio output port (3.5 mm stereo) for connecting to a corporate paging system or night
bell. This port is grounded. ShoreTel provides an optional Paging Adapter to provide a balanced
output as well as a contact closure ideal for overhead paging systems. Refer to the ShoreTel
Paging Adapter Quick Install Guide for information about the Paging Adapter
•
USB port for logging/troublesooting

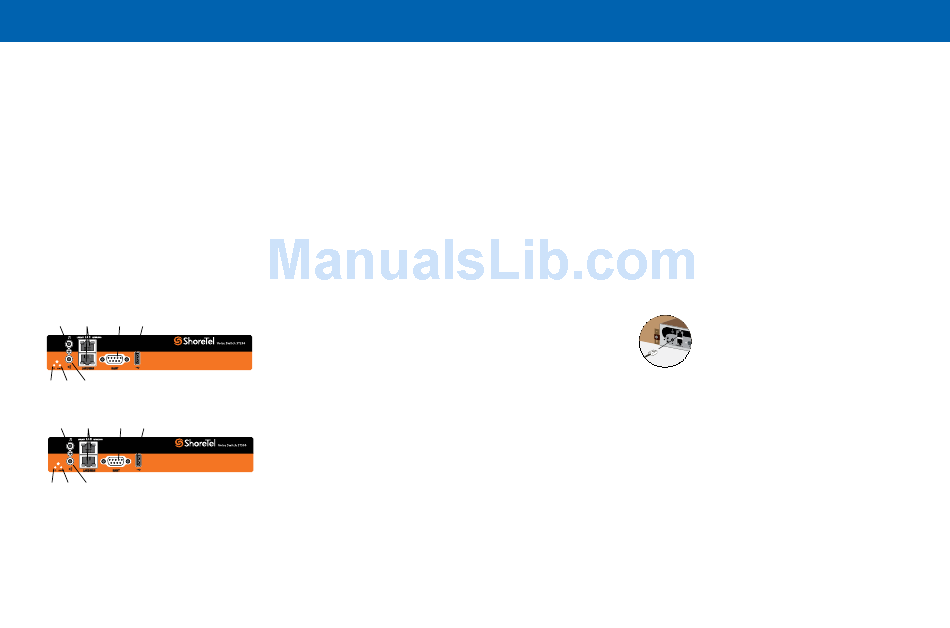

Audio 10/100/1000 RS-232C
input Mbps Ethernet maintenance USB
port ports port port
Power Status Audio
LED LED output
port
Audio 10/100/1000 RS-232C
input Mbps Ethernet maintenance USB
port ports port port
Power Status Audio
LED LED output
port
Installation and Servicing
Installation Equipment
To install the switch, you need the following equipment:
•
AC surge protector for the power connection
•
RJ-45 cable for connecting the switch to the local area network
•
Music-on-hold source with a standard mini-headphone Y-adapter (optional)
•
Permanent earthing connector for grounding the device
•
#1 Phillips screwdriver
Installation Location Requirements
To ensure optimum operating conditions for the ST200/ST500 voice switch, verify the operating
environment is adequately ventilated, free of gas or airborne particles, and isolated from electrical
noise.
Installing the ST200/ST500 in a 19-inch Rack
The ST200/ST500 is placed in a 19-inch rack only by mounting a ShoreTel Dual Tray into the rack,
then installing the voice switch into the Tray.
Refer to the Quick Install Guide for the ShoreTel Dual Tray for Tray installation instructions and
information on using the Tray.
Mounting the ShoreTel Voice Switch on a Flat Surface
If you plan to mount the switch on a flat surface, first attach the provided rubber feet to the
bottom corners of the device. You can stack up to three switches in a surface installation.
Installing the ST200/ST500 on a Wall Mount
The ST200/ST500 is placed on a wall mount by attaching the wall mount to the wall, and then
attaching the appliance to the mount. Refer to the ShoreTel Dual Tray: Wall Mount Kit Quick
information on using the tray
Install Guide for
German: Das ShoreTel Voice-Schaltgerät auf einer ebenen Oberfläche
montieren
Wenn Sie planen, das Gerät auf einer ebenen Oberfläche zu montieren, befestigen Sie
zunächst die mitgelieferten Gummifüße an den unteren Ecken des Geräts. (Bei einer
Oberflächeninstallation können Sie bis zu drei Schaltgeräte übereinander stapeln.)
Attaching an Earthing Connector
To meet electrical safety requirements for proper grounding, you must connect a permanent
earthing protector between the ShorteTel voice switch and the wiring system ground.
1. Connect a ground wire (#14 AWG wire or larger) to the screw on the back of the unit and to
the right of the product label.
2. Connect the other end of the ground wire to the wiring system ground.
CAUTION: Always connect the permanent earthing connector before attempting to connect the
switch to a LAN segment and telecommunication lines.
Connections
German: Einen Erdungsleiter anschließen
Um den elektrischen Sicherheitsanforderungen für eine korrekte Erdung nachzukommen, müssen Sie
einen permanenten Erdungsschutz zwischen dem ShoreGear-Gerät und der Erde des Kabelsystems
installieren.
1. Schließen Sie ein Erdungskabel (Nr. 14 AWG oder größer) an die Schraube an der Rückseite des
Geräts an, die sich rechts neben dem Produktetikett befindet.
2. Schließen Sie das andere Ende des Erdungskabels an die Erde des Kabelsystems an.
VORSICHT: Schließen Sie immer zuerst den permanenten Erdungsschutz an, bevor Sie versuchen, das
Gerät an ein LAN-Segment und Telekommunikationsleitungen anzuschließen.
Servicing Procedures
WARNING: The ST200/ST500 contains no internal field serviceable parts. Return the equipment to
ShoreTel for any required service procedures.
CAUTION: Internal fuses should be serviced only by qualified ShoreTel personnel. If internal fuses are
blown and require replacement, return the ST500 to ShoreTel for service.
WARTUNGSVERFAHREN
ACHTUNG: Der ST200/ST500 enthält keine internen Teile, die vor Ort gewartet werden können.
Senden Sie das Gerät an ShoreTel, falls Wartungsarbeiten erforderlich sein sollten.
VORSICHT: Interne Sicherungen dürfen nur von qualifizierten ShoreTel-Mitarbeitern gewartet werden.
Wenn interne Sicherungen ausgetauscht werden müssen, senden Sie den ST200/ST500 zur Wartung
an ShoreTel. "
Connecting the ShoreTel Voice Switch to the Network
Once the ST200/ST500 Voice Switch is secured to a rack or surface-mounted, you can connect it to the
data network.
Use an RJ-45 Ethernet cable to connect one or both of the LAN ports to
the network subnet.
While both ports can detect and respond to link status, the switch uses
only one LAN port at a time.
Powering on the ShoreTel Voice Switch
After connecting the switch to the network, power on the device by connecting it to an AC power
source.
1. Plug an AC surge protector (not provided) into a grounded AC power source.
2.
Plug one end of the provided power cord into the receptacle on the back of the switch, then
plug the other end into the AC surge protector.
The power LED flashes momentarily, and remains lit.
•
If the LED is not lit, make sure the power cord is plugged into the switch and the power source.
•
If the LED continues flashing, there is an internal error. Unplug the switch to power it off, then
power it back on. Refer to the "Configuring Switches" chapter in the ShoreTel Administration
Guide for information on flash patterns, or contact the ShoreTel Support Services at http://www.
shoretel.com.
The LAN ports auto-sense the network transport rate. When the network connection is established,
the network LED indicates a transport rate of 10, 100, or 1000 Mbps, and whether the switch is
receiving and transmitting data.
