Manufacturer is not responsible for negligent use of vehicle with mud flaps installed, including
over-tightening of screws and bolts causing damage to vehicle or mud flaps.
TOOLS REQUIRED-
Electric or Rechargeable
Drill
5/16" Open Wrench or
Socket Wrench
FLAPS
(1)Flap Assembly,
Front, DS
PARTS BAG # 768189
a) (6) Washer, Flat
0.203" x 1.5",Blk Oxid.
Part #018072
d) (4) Screw, Machine
18-8SS,10-24x1,Hex Hd
Part #012022
g) (4) Washer, Lock
18-8SS, Helicoil
Part #024001
¼" Drill
Bit
b) (4) Washer, Flat
.
0.281" x 1", Blk Oxid.
Part # 018069
e) (6) Screw, Sheet Metal, SS
#10-12 x 1-1/4" Phillips Head
Part # 010027
h) (2) Washer, Lock
1/4", Helicoil, SS
Part #024000
2005-2020 Nissan Frontier

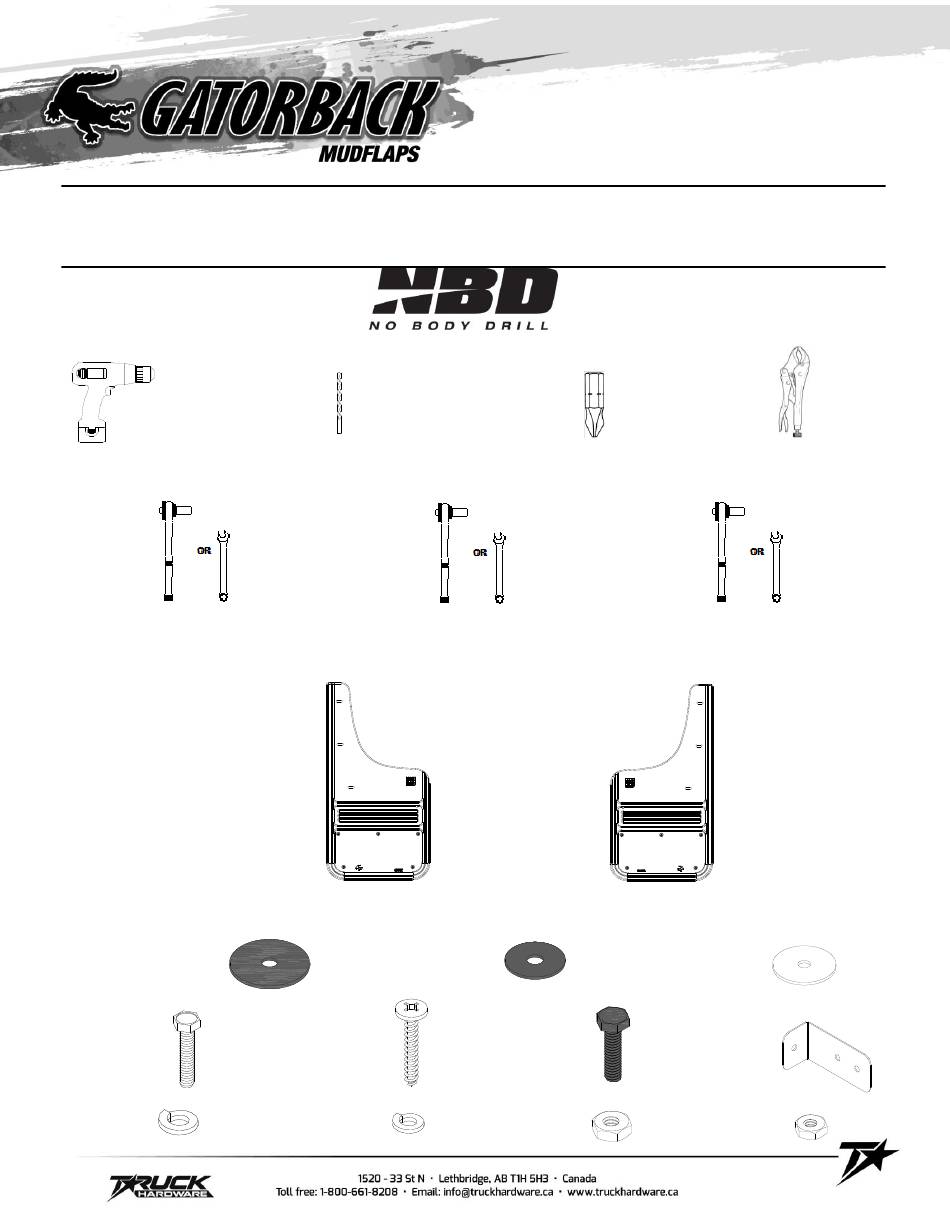

Mounting Diagram & Instructions
IMPORTANT:
Phillips Head
Bit
3/8" Open Wrench or
Socket Wrench
(1)Flap Assembly
Front, PS
f) (2) Capscrew
1/4"-20 x 1", Blk Oxid.
Part # 014073
i) (4) Nut, Hex
#10-24, SS
Part #025003
Mud Flap Set, Front
GCR53F
Kit#
Vice Grips
7/16" Open Wrench or
Socket Wrench
c) (8) Washer, Flat
0.203" x 0.781" SS
Part # 018018
g) (2) "L" Bracket
Front
Part #768187
j) (2) Nut, Hex
1/4-20, SS
Part #025000
