Gatorback Mudflaps 756683 Mounting Instructions

Manufacturer is not responsible for negligent use of vehicle with mud flaps installed, or
over-tightening of screws and bolts causing damage to vehicle or mud flaps.

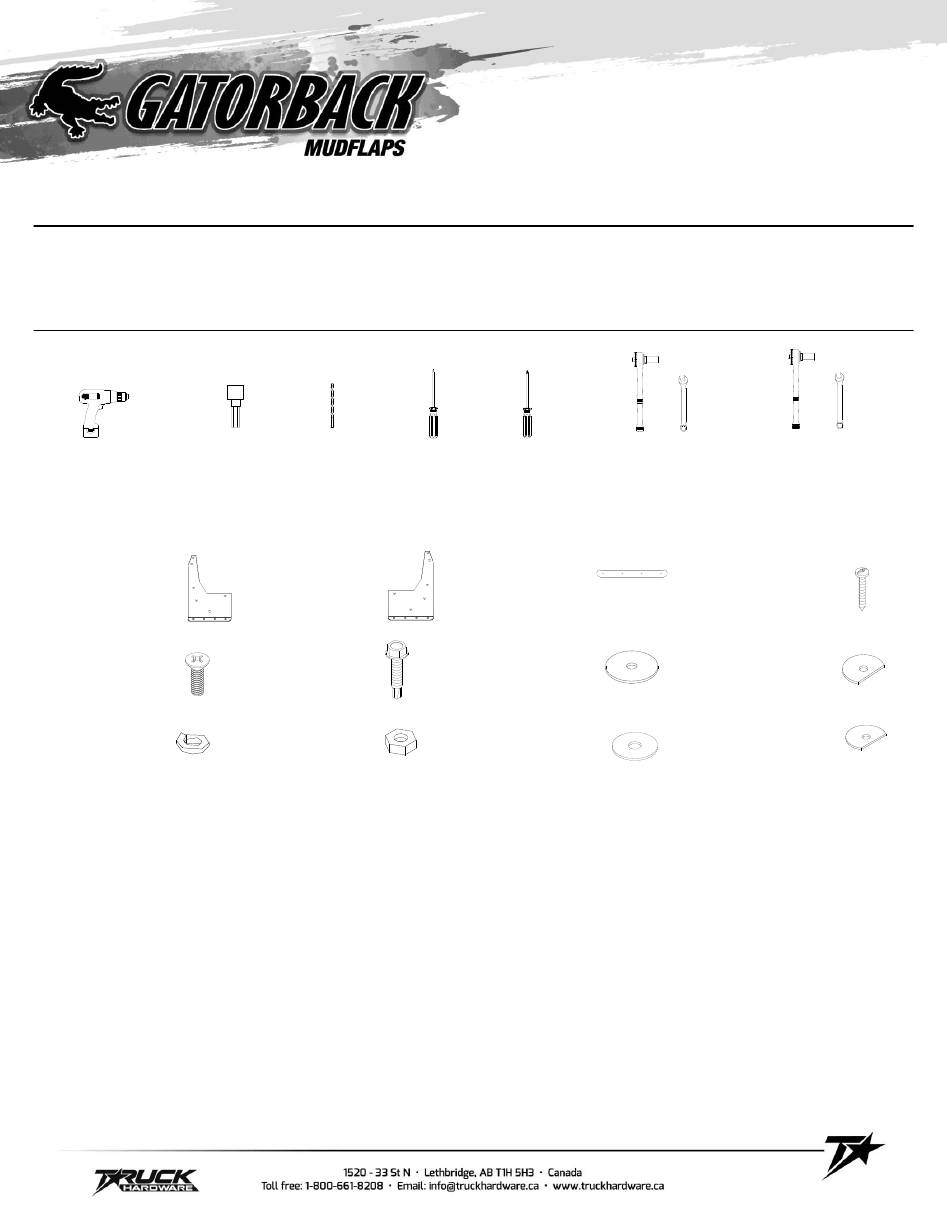

TOOLS REQUIRED
3/8" Socket
Electric or Re-Chargeable
½" or 3/8" Drill
KIT CONTENTS:
a) (1)Upper Mount
Driver's Side
Part #755539
e) (8)Screw, Machine
8-32 x ½", SS
Part # 012031
i) (2) Washer, lock
#10, Helicoil, SS
Part #024001
Before you install your Mud Flap, see the above diagrams and parts list for all necessary parts.
INSTALLATION
For ease of installation, it is suggested that the wheel be removed.
1. Before you install your Mud Flaps, see the diagram and parts list for all necessary parts. Cut protective plastic and peel away
from the stainless steel. Start on the Driver's side.
Remove the factory screws #7 & #8 on the wheel flare, as shown on the diagram and discard. Install one (1) sheet metal
2.
screw #010017 and one (1) washer #018031 on hole #4 through previously, screw removed, hole #7. Loosely secure at
this point.
Install one (1) sheet metal screw #010017 and one (1) washer #018032 on hole #5 through previously, screw removed,
3.
hole #8. Loosely secure at this point.
¼" Drill Bit
Driver
b) (1) Upper Mount
Passenger Side
Part #755540
f) (6) Tek Screw
¼ x 14 x 1.25"
Part #010011
j) (2) Nut, Hex
#10 – 24, SS
Part #025003
Start on the driver's side.
IMPORTANT:
Robertson Phillips
Screwdriver Screwdriver
c) (2) Rear Strip
1" x 12", SS
Part #755523
g) (6) Washer, Flat,
0.203"x1.00", SS
Part #018031
k) (4) Washer, Flat
0.281"x1.0", SS
Part #018028
2009-13, Ford F-150
Front Upper Mount Kit
Mounting Instructions
Part #756683
OR
5/16" & 3/8" Open
End or Socket Wrench or Socket Wrench
d) (4) Screw, SS
#10 x 1.25"
Part #010017
h) (2) Washer, Half
0.281"x1.000", SS
Part #018029
l) (2) Washer, Half
0.203 x 1.0", SS
Part #018032
5/8" Offset
OR
7/32" Open End
