Summary of Contents for Mooer SD30

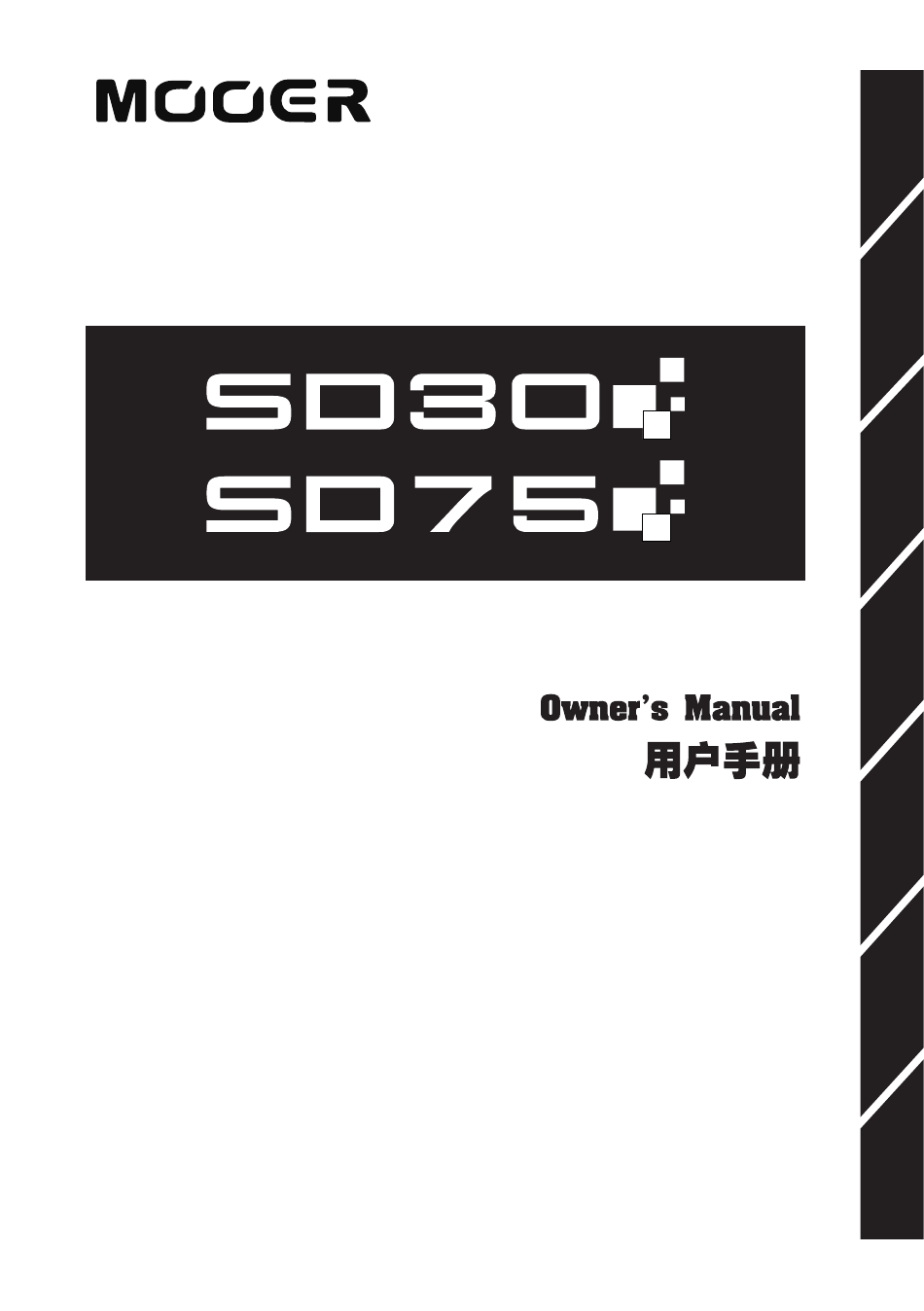

- Page 1 Bedienungsanleitung Manual do Proprietário Manual de uso 取扱説明書 Manuel D'Utilisation...

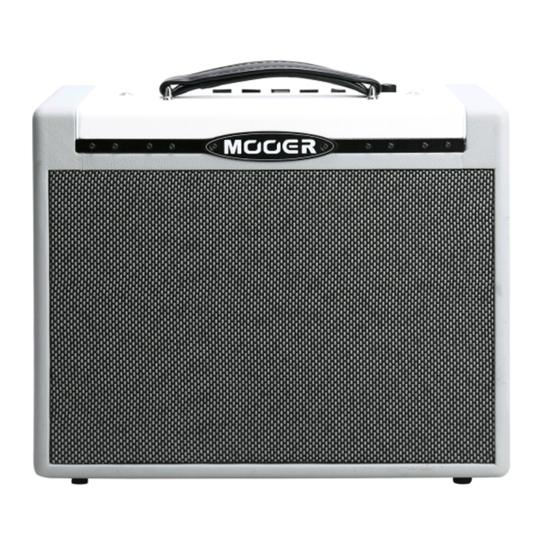

- Page 3 INTRODUCTION The SD amplifier series is a harmonious marriage between MOOER’s famous digital preamp technology and a new take on traditional solid-state Class A/B amplification techniques, that deliver professional “tube like” performance, touch and feel, at entry level prices. Each model in the SD series comes fully loaded with a whole host of special-features and effects, that provide everything you need to craft incredible guitar tones for creating music on-stage or in the practice room.
-
Page 4: Top Panel Layout
TOP PANEL LAYOUT 08 09 10 11 12 08 09 10 11... - Page 5 TOP PANEL LAYOUT PRESET: Press to recall presets BANK ▲▼: Press to change preset bank INPUT: Connect guitar AUX IN: Connect external media device for audio playback PREAMP CONTROLS: Quickly dial in the tone of your preamp model. Each of these parameters are stored per preset and the position of the knob does not represent the current parameter setting when a preset is recalled.
-
Page 6: Back Panel Layout
BACK PANEL LAYOUT... - Page 7 BACK PANEL LAYOUT POWER: Toggles power on/off to the amplifier AC IN: Connect 3 pin grounded AC power cord POWER FUSE: Contains the main power protection fuse and a backup replacement fuse. If the amplifier cannot power on, inspect the protection fuse and replace if necessary. T500mA - 220V-240V T1000mA- 100V-120V AC VOLTAGE: Select correct setting for your current region.
-
Page 8: Getting Started
GETTING STARTED AC IN Ensure the power switch Connect a 3 pin grounded is set to OFF (O) AC CORD to the AC IN MASTER Connect a guitar to the Set the MASTER control fully Set the power switch INPUT counter-clockwise to ON (I) PLAY SCREEN... -
Page 9: Selecting Presets
SELECTING PRESETS SD30/SD75 have 40 presets in total. These are organised into 10 banks (0 – 9) of 4 (A, B, C, D). There are 3 ways to change between presets. 1. Rotate the VALUE control when on the PLAY SCREEN to scroll through presets. -
Page 10: Editing Presets
EDITING PRESETS Press the AMP button to enter the AMP edit screen Preamp model Preamp controls Noise Gate Rotate the VALUE control to select an amp model You can use the AMP CONTROLS to adjust the main amp parameter settings Press the value control to highlight other parameters such as NG and then rotate the VALUE CONTROL to adjust the parameter setting. - Page 11 EDITING PRESETS Press an effect button to navigate to it’s edit screen Press this button again to toggle the effect on/off EFFECT MODEL PARAMETER PARAMETER VALUE Rotate the VALUE control to select an effect model Press the VALUE control to highlight effect parameter Rotate the VALUE control to adjust parameter settings Press the PLAY button when you are finished editing to return to the PLAY screen.
-
Page 12: Saving Presets
SAVING PRESETS Press the save button to enter the preset save screen PRESET NUMBER KEYPAD PRESET NAME Rotate the VALUE control to select the target preset number. Press to accept Enter your new preset name using the keypad. Press VALUE to select a character, rotate VALUE to change it Press the SAVE button to complete the saving procedure Press the PLAY button to cancel saving... - Page 13 PAIRING WIRELESS FOOTSWITCH When the wireless footswitch is connected to SD30/SD75 It’s 4 footswitches A, B, C, and D, directly mirror the functions of the PRESET buttons. Preset Ensure the SD amplifier is turned off Press and hold footswitches C + D on the wireless controller Power on the amplifier...
-
Page 14: Drum Machine
JAM MODE Your new SD amplifier is fully equipped with a 150 second looper and drum machine which make fantastic tools for practice and solo performance. These features can be found in JAM MODE. When the wireless footswitch is connected to your shadow amp, the footswitches can be used exactly the same way as the PRESET buttons to control the looper and drum machine. - Page 15 LOOPER The looper in SD amps has 2 main operating modes. FREE LOOP and BAR LOOP. FREE LOOP is exactly the same as our popular MICRO LOOPER. You can record and overdub loops completely free of any tempo constraints. RECORD – Press PRESET A to begin recording a loop PLAY- Press PRESET A to stop recording and immediately playback the loop you just recorded.
-
Page 16: System Settings
Open your external device and ensure Bluetooth is active Search for Bluetooth devices on your external device, your amp will appear as “MOOER SDAMP” Select “MOOER SDAMP” to connect to your SD amplifier Control the playback volume from your external device... -
Page 17: Specifications
POWER IN: 220V-240V AC 100V-120V AC POWER FUSE: T500mA T1000mA SPEAKER: 1 x 8" Custom 50W 8Ω Driver (SD30) 1 x 12" Custom 100W 8Ω Driver (SD75) Dimensions: Sd30 > 420mm(L) x 217mm(D) x 368mm(H) Sd75 > 570mm(L) x 275mm(D) x 465mm(H)
