Summary of Contents for Mooer LITTLE TANK D15

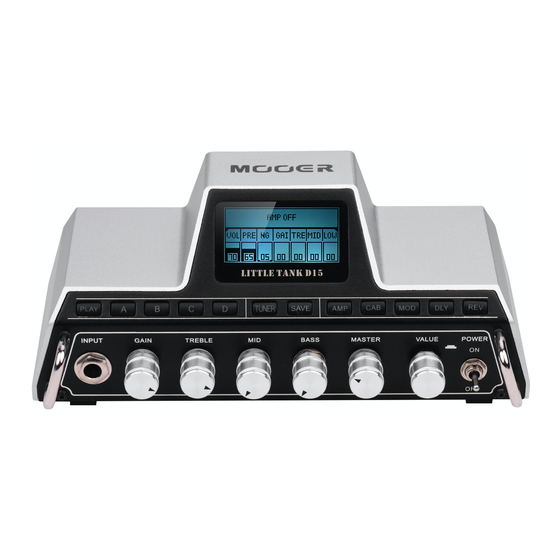

- Page 1 L I T T L E T A N K D 1 5 Modeling Mini Guitar Amplifier Head...
-
Page 2: Table Of Contents
CONTENTS Precautions Panel Instructions Main Features Operational Guidance Preset Selection Tone Setting Tone Saving Quick Recall Buttons Tuner Restore Factory Setting FX Loop Aux In and Bluetooth Connections Effects Explanation Specifications Troubleshooting Patch List... -
Page 3: Precautions
Precautions Please read carefully before proceeding Ower Supply： Please connect the designated AC adapter to an AC outlet of the correct voltage. Please be sure to use only an AC adapter which supplies 18V DC, , 1200mA, center negative. Unplug the AC power adapter when not in use or during electrical storms. -
Page 4: Panel Instructions
Panel Instructions LCD Display: Displays the User Interface and provides all information for presets and parameters PLAY: Accesses preset page A、B、C、D:Quickly recalls 4 of your favorite presets TUNER:Accesses the Tuning function page SAVE：Access to saving custom user presets AMP：Accesses the amp model and amplifier parameters page CAB：Accesses the speaker cabinet simulation page MOD：Accesses the modulation effects and parameters page DLY：Accesses the delay effects and parameters page... -
Page 5: Main Features
DC IN 18V 1.2A SPEAKER OUT: Connects to an external speaker or speaker load（Please connect 4ohm or over） SEND：Connect this to the input of external time based or modulation effects. RETURN：Connect this to the output of external time based or modulation effects HEADPHONES: Stereo line out for connecting to a headset or other external audio equipment （Main speaker sound is muted when a connector is inserted into the headphones jack）... -
Page 6: Operational Guidance
Operational Guidance Power Connect the supplied power adaptor to the DC-IN jack located on the rear side. ）Connect a speaker load of at least 4Ohm to the speaker out. 18V, 1200mA, Connect your instrument to the Input jack and power the D-15 on using the ON/OFF switch. -
Page 7: Preset Selection
Preset Selection Selecting Presets Power on the D15 or press the play button to access the preset page. the LCD Display will indicate the information of the current preset. Rotate the Value control to change the current selected preset. 1. Preset number 2. -
Page 8: Tone Setting
Tone settings AMP Editing Press the AMP button to access the Amp model page.Press again to active the Amp model. Here you can see the amp model which is selected and the levels of all various amp settings. Rotate the VALUE control knob to change the amp model. Pressing the VALUE control knob will select different individual parameters which can be easily adjusted by then rotating the VALUE control.Press the Amp button to turn off the Amp model while the Amp model is activating. - Page 9 CAB Editing Press the CAB button to access the speaker cabinet simulation page. Rotate the VALUE control knob to select a different speaker cabinet MOD Editing Press the MOD button to access the Modulation effect page. Rotating the VALUE control knob will select different types of Modulation effects. Pressing the VALUE control will select the various parameters which can then be adjusted by rotating the VALUE control knob.
- Page 10 DLY Editing Press the DLY button to access the Delay effects page. Rotating the VALUE control knob will select different types of Delay effects. Pressing the VALUE control will select the various parameters which can then be adjusted by rotating the VALUE control knob.
-
Page 11: Tone Saving
Tone saving Press the SAVE button at any time to save your current tone and access the preset saving function page. Rotate the VALUE control knob to select the preset number where you would like to save your tone. Press the VALUE control to switch between the preset number select and the name edit parameters. -
Page 13: Fx Loop
Bluetooth:Turn on the Little Tank. Open your bluetooth device such as cellphone or ipad and search for " ". The connection code is “0000”. After connecting MOOER TANK D15 you can play your music or other audio files directly through the D15 Little Tank. -
Page 14: Connections
Connections DC IN 18V 1.2A... -
Page 15: Effects Explanation
JRT915 Based on DIVIDED BY 13 JRT 9/15 F.CRUNCH Based on FENDER DELUXE REVERB Based on MOOER ROCK MOOER RC Based on MOOER CLASS A MOOER CL MOOER CR Based on MOOER CRUNCH MOOER MT Based on MOOER METAL *NOTES: All product name called their company, here is only used in this product... - Page 16 Based on BOGNER 412 cab DIVIDE 212 Based on DIVIDED By 13 212 cab FDR 212 Based on FENDER DELUXE REVERB 212 cab MOOER 112 Based on MOOER cab MOOER 212 Based on MOOER cab MOOER 412OB Based on MOOER cab MOOER 412CB...
- Page 17 Specifications Name CHORUS This effect creates a shining dimensional sound. FLANGER This effect produces an undulating and floating sound. PHASER This effect creates a pulsing-like sound. TREMOLO This effect periodically influences the volume of the signal. VIBRATO This effect produces an intense vibrato sound. FILTER This effect produces a sweeping filter sound.
-
Page 18: Specifications
Specifications No. of Effect Modules: 5 modules No. of Effect Types: 65 Effect types Preset Patch Memory: 40 patches Input Jack: 1/4” mono audio jack Speaker Ou t : 1/4” mono audio jack,connect over 4ohm speaker Se n d /Return: 1/4 mono audio jack ”... -
Page 19: Patch List
Patch List Name of preset Name of preset 77 DIST SOLOMAN NO DR JC ROOM ROCK80 NU GUNS SWEET OD AUTUMN EXTREME6 FUSION POWER8 B FACE OLDTIMEY DYN SOLO SINE800 LOFI GOLDEN FUSION2 POP CLN SHINE TUBE GYRATE 70 CLUB BACK SPRING SECRET... - Page 20 MOOER AUDIO CO.,LTD Shenzhen, China www.mooeraudio.com...
