Thank you for your purchase of this Citizen watch.
Before using the watch, read this instruction manual carefully to ensure
correct use.
After reading the manual, store it in a safe place for future reference.
To check the movement number
A case number is engraved on the case back.
(See the figure below.)
On the case back, a number composed of
four + six alphanumeric characters (or more) is
engraved.
In the example below, "1234" is the movement
number.

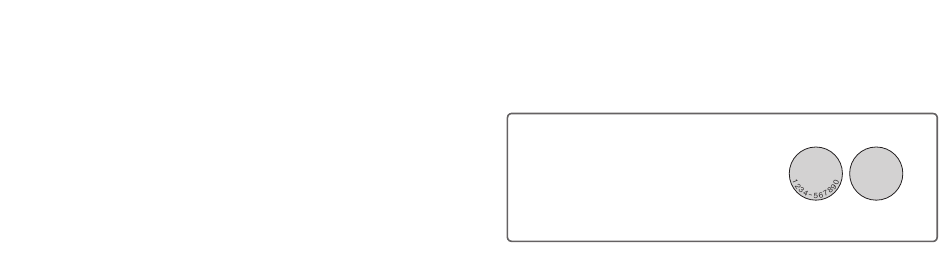

<Engraving position example>
1234-567890
The engraving position may differ
depending on watch model.
43
Advertisement
Table of Contents
Related Manuals for Citizen 8651
Summary of Contents for Citizen 8651
- Page 1 Thank you for your purchase of this Citizen watch. Before using the watch, read this instruction manual carefully to ensure correct use. After reading the manual, store it in a safe place for future reference. <Engraving position example> To check the movement number A case number is engraved on the case back.
- Page 2 Safety precautions • Important instructions that should be followed are classified with the following symbols. Warning (caution) symbol followed by instructions that should be This manual contains the following instructions that should be strictly followed at all followed or precautions that should be observed. times to prevent injury to yourself and other persons as well as damage to property.
-
Page 3: Table Of Contents
CONTENTS 1. Features ......................... 49 6. General Reference for Charging Times ............66 2. Before Using ......................50 7. Solar-Powered Watch Handling Precautions ........... 68 3. Names of Components ..................51 • Recharging Precautions 4. Setting the Time and Date ................54 •... -
Page 4: Features
1. Features This watch is a solar-powered watch equipped with a solar cell in the watch dial that converts light energy into electrical energy to power the watch. It is also provided with the features described below. A secondary battery is used to store electrical energy. This secondary battery is a clean energy battery that does not contain mercury or any other harmful substances. -
Page 5: Before Using
3. Names of Components 2. Before Using Before using, please fully charge your watch by exposing the solar cell (watch dial) Date Date hand to light while referring to section 6 entitled "General Reference for Charging Times". Once fully charged, the watch will continue to keep the correct time for about 6 Minute hand Hour hand months. - Page 6 Month Correction Button: Screw lock type button The month correction button is located at the 3:00 position. There are two types of The screw lock type button has a flat smooth end that protrudes slightly from the end the month correction buttons. One is a screw lock type and the other is a recessed of the screw lock.
-
Page 7: Setting The Time And Date
4. Setting the Time and Date When setting the time and date simultaneously, the parameters are set in the order of day, moon phase, date and month and finally time. When date is set Setting the Day Setting the Moon from the 3rd to Setting the Date Setting the Month... -
Page 8: Setting The Day
[Procedure for Setting Time and Date] <Reading the Moon Phase> The moon phase display does not display the shape of the moon itself, but rather Setting the Day simply indicates the moon phase. It can be used to provide an approximate 1. -
Page 9: Setting The Date And Month
Setting the Date and Month [When the Date is Set to the 1st or 2nd] (1) Temporarily set the date to the 30th. 1. Pull the crown out to the date correction position (first position). (2) Press the month correction button and temporarily set the month to the 2. -
Page 10: Setting The Time
Setting the Time [Notes] • If the date is corrected when the time on the watch is between 9:00 PM and 1. Pull the crown out to the time correction position (second position) when the 12:00 AM, the date may not change on the following day. Avoid correcting second hand reaches the 0 seconds position. -
Page 11: Unique Features Of Solar-Powered Watches
5. Unique Features of Solar-Powered Watches [Insufficient Charge [Watch Stopped] [Normal Time Display] Warning Display] Stop 1-second interval movement 2-second interval movement When the watch If the watch remains uncharged for about four days, ….. becomes insufficiently If insufficiently charged charged, the watch display changes as shown below. -
Page 12: Insufficient Charge Warning Feature
<Insufficient Charge Warning Feature> <Overcharging Prevention Feature> When the watch becomes insufficiently charged, the When the secondary battery becomes fully charged as a result of exposing the watch second hand begins 2-second interval movement to dial (solar cell) to light, the overcharging prevention feature is activated automatically indicate that the watch is insufficiently charged. -
Page 13: General Reference For Charging Times
6. General Reference for Charging Times [Note] Once fully charged, the watch will continue to run for about 6 months with any additional charging. As shown in the table above, a considerable The time required for charging varies according to the model of the watch (color of amount of time is required until the watch starts running once the watch has stopped as a result of being insufficiently charged. -
Page 14: Solar-Powered Watch Handling Precautions
7. Solar-Powered Watch Handling Precautions <Replacement of Rechargeable Cell> • Because the watch uses a rechargeable cell, you do not need periodical cell replacement. However, power consumption may increase after using for an extended period of time due to deterioration, and the power may run out earlier than expected. To avoid this, we <Always make sure to recharge frequently>... -
Page 15: Precautionary Items And Usage Limitation
8. Precautionary Items and Usage Limitations • Refer to the watch dial and the case back for the indication of the water resistance of your watch. WARNING Water Resistance The following chart provides examples of use for reference to ensure that your watch is used properly. •... - Page 16 CAUTION CAUTION To avoid injury Precautions • Be particularly careful when wearing your watch while holding a small child, to avoid • Always use the watch with the crown pushed in (normal position). If the crown is of the injury. screw lock-type, make sure it is securely locked.
- Page 17 CAUTION <Magnetism> When Wearing your Watch • Analog quartz watches are powered by a step motor that uses a magnet. Subjecting the <Band> watch to strong magnetism from the outside can cause the motor to operate improperly • The durability of a leather band may be affected when wet (fading, peeling of adhesive), and prevent the watch from indicating the correct time.
- Page 18 CAUTION CAUTION Always keep your Watch Clean Caring for your Watch • Rotate the crown while it is pressed in fully and press the buttons periodically so they do • Wipe any dirt or moisture such as perspiration from the case and crystal with a soft cloth. not become stuck due to accumulations of foreign matter.
-
Page 19: Warranty And Service
9. Warranty and Service <Free Guarantee> <Change of Address or Receiving as a Gift> In the case a malfunction has occurred during the course of normal use while the watch In the event that you have moved or have received your watch as a gift, and are not able to is till under warranty, the watch will be repaired free of charge in accordance with the bring your watch to the shop where it was purchased for serving, please consult Customer conditions of the warranty included with this manual. -
Page 20: Specifications
10. Specifications • Model: 8651 • Type: Analog solar-powered watch • Continuous Operating Times • T imekeeping accuracy: Within ±15 seconds per month on average Time until watch stops without charging after being fully charged: (when worn at normal temperatures of +5°C to +35°C) Approx. 6 months • Operating temperature range: -10°C to +60°C...
