Ceiling Speaker
Grille Assemblies

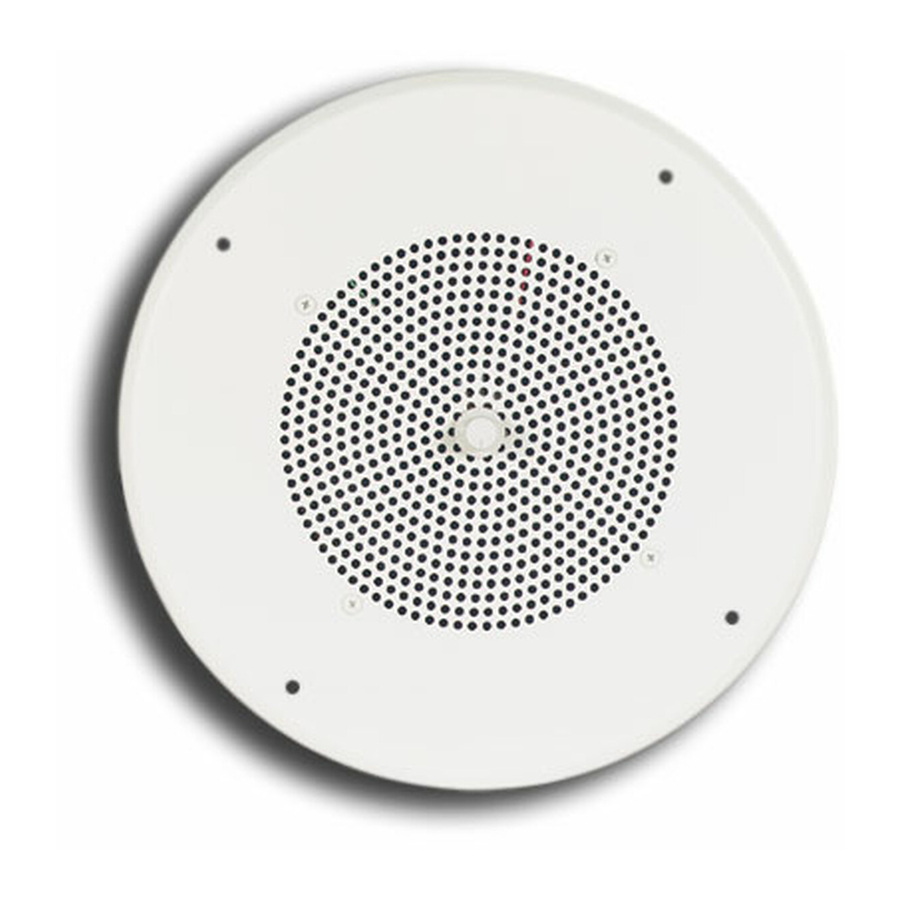

Bogen's Ceiling Speaker Assemblies consist of an 8" Cone Speaker (S86 or S810) pre-assembled onto a 13"
steel ceiling grille painted with off-white (PG8W) or bright white (PG8U) enamel. Options for these assem-
Description
blies are recessed volume control (VR), volume control with knob (VK), and rear-mounted screw terminal
strip for power taps (BR).
• 4-watt capacity
• 8" cone speaker for excellent audio quality
Features
• 6 different power taps available (4, 2, 1, 1/2, 1/4, 1/8 W)
• T725 4-watt transformer
• Off-white enamel over steel grille ("W" versions)
• Bright white enamel over steel grille ("U" versions)
Technical
Specifications
Model
S86T725PG8W
S86T725PG8WVR
S86T725PG8WVK
S86T725PG8WBR
S86T725PG8WBRVR
S86T725PG8WBRVK
S86T725PG8U
S86T725PG8UVR
S86T725PG8UVK
S86T725PG8UBR
S86T725PG8UBRVR
S86T725PG8UBRVK
S810T725PG8W
S810T725PG8WVR
S810T725PG8WVK
S810T725PG8U
S810T725PG8UVR
S810T725PG8UVK
Specifications subject to change without notice.
© 2008 Bogen Communications, Inc.
54-7777-08A 0808
50 Hz-
12 kHz
4, 2, 1, 1/2, 1/4, 1/8
@ 25 & 70V
70 Hz-
15 kHz
S86T725PG8WBR
• Pre-assembled for faster installation
• Works with both 70V and 25V amplifier outputs
• Available with volume control – recessed or with
knob (VR and VK models only)
• Screw terminals (BR models only)
• 6 oz. or 10 oz. magnet weights
●
●
●
●
95
6 oz.
dBspl
●
●
●
●
●
●
96
10 oz.
●
dBspl
●
S86T725PG8WVK
●
●
27 lb. /
carton
●
●
● ●
● ●
28 lb. /
carton
● ● ●
●
●
27 lb. /
carton
●
●
●
●
●
●
28 lb. /
carton
● ●
●
●
●
●
●
30 lb. /
●
carton
●
●
●
13" Dia x
3-1/4" D
