Bogen WMK1 Quick Start Manual

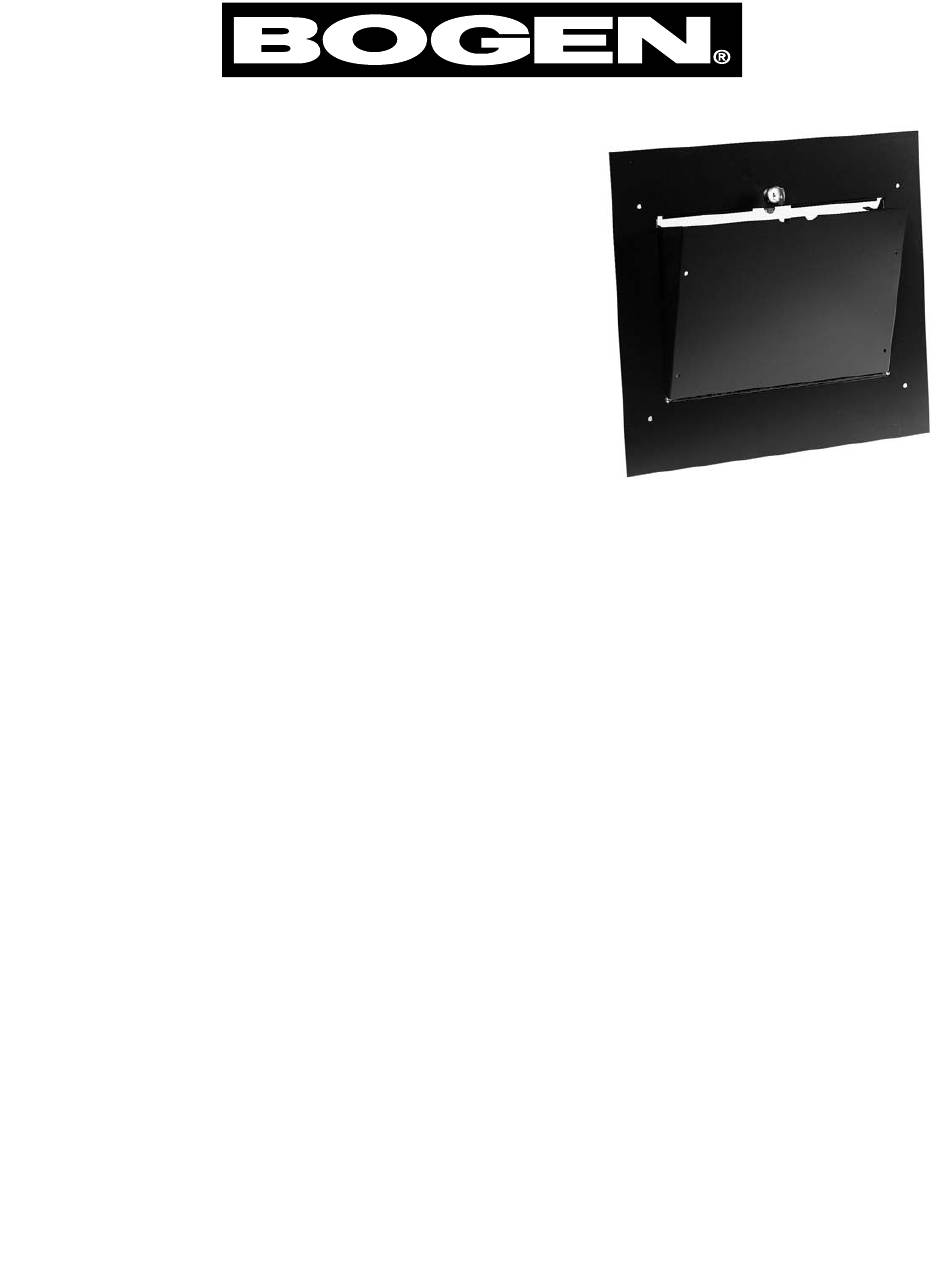

MODEL WMK1
WALL MOUNT CABINET
• Tilt-open door
• Can be locked in closed or open position
• Used with models C10/C10MOH, C20/C20MOH, 10- and
20-watt amplifiers, and CAM or CAM2 mixer amplifiers
DESCRIPTION
The Bogen Model WMK1 is a flush in-wall mounting cabinet
designed to accommodate
C20/C20MOH, CAM, and CAM2.The cabinet fits between stan-
dard 2 x 4's on 16" center wall studs, with the front panel act-
ing as a plaster ring. Controls are accessible via a tilt-open door
that may be locked in either the closed or open position. The
cabinet is finished in black and is made from sturdy 16-gauge
steel. It is supplied with a backbox which includes an easily
mounted AC power receptacle.
DIMENSIONS & WEIGHT
Wall Box
Face Plate
Tilt-Open Door
Minimum, Opening Required 14-1/8"W x 13-5/8"H
Shipping Weight
INSTALLATION
ACCESSIBILITY: The backbox must be placed so that the
controls are at an appropriate height for operation.Typically, the
bottom of the backbox should be three feet above the floor.
MOUNTING: The flush-mounting backbox must be secured
to support surfaces inside the wall or, in new construction, must
Models C10/C10MOH,
14"W x 13-1/2"H x 3-1/2"D
16"W x 14-1/2"H
11-5/8"W x 8-3/8"H
13 lbs.
be built into the wall.The WMK1 is shipped with the front panel
and door assembly temporarily secured to the backbox. Remove
the assembly from the backbox and mount the box with four
screws through the slotted holes (see mounting diagram on the
back of this sheet). Use these slotted holes to position the box
so that it is flush with the surface of the finished wall.When this
is accomplished, add four more screws through the holes just
forward of the slotted holes. Securely tighten all eight screws to
prevent any further movement of the backbox.The AC recepta-
cle must be located at the top of the backbox. The wall cutout
for the backbox should be 14-1/8" wide and 13-5/8" high.
WIRING: The backbox has a ½" conduit entry above the
receptacle box which must be used for AC line connection. (This
is the knockout between two small screw holes.) Where possi-
ble, locate the backbox near a suitable #14 AWG, 3-wire single-
phase, 120V AC line. Use wire nuts to connect the receptacle.
The box must be convenient for connection of microphone
input cables and speaker lines.All wires enter the box inside the
wall.
Do not locate box or connecting wires near steam lines or other heat
sources.
INSTALLATION OF THE AMPLIFIER: The amplifier is
secured to the door of the WMK1 by four screws. A separately
mounted flange on the door provides a stop for the door and,
when removed, allows the amplifier to be dropped down for
connections. Audio cables may be brought into the backbox
through any knockout other than that used for the AC line.
© 2000 Bogen Communications, Inc.
Printed in U.S.A. All rights reserved. 54-5634-07R2 0011
CAUTION
