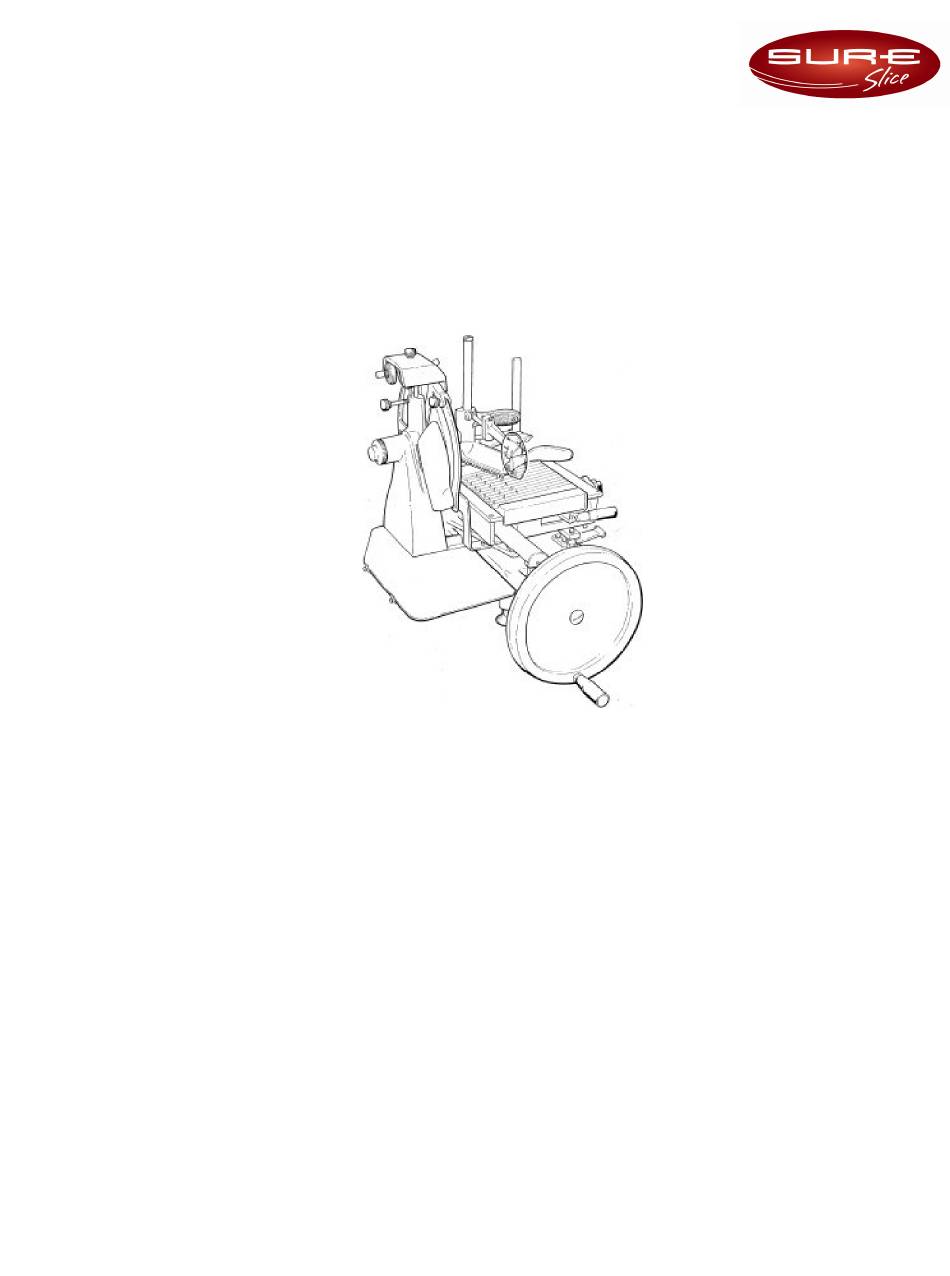

Models SSV300T,
SSV350T & SSV370T
USER AND
MAINTENANCE MANUAL
User Manual SSV300T, SSV350T & SSV370T REV. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SSV300T and is the answer not in the manual?

Questions and answers

Related Manuals for Sur-e slice SSV300T

Summary of Contents for Sur-e slice SSV300T

  • Page 1 Models SSV300T, SSV350T & SSV370T USER AND MAINTENANCE MANUAL User Manual SSV300T, SSV350T & SSV370T REV. 1.0...
  • Page 2 Technical Specification SSV300T SSV350T SSV370T KNIFE DIAMETER (mm) SLICE THICKNESS (mm) 0 - 2 0 – 2.5 0 – 2.5 CAPACITY (W X H) (mm) 230 x 190 270 x 240 270 x 250 FOOTPRINT (L X W) (mm) 400 x 340...
  • Page 3 — 1. Flywheel 2. Flywheel handle 3. Carriage 4. Slice thickness (adjustment) knob 5. Product tray fast movement handle 6. Product tray 7. Product clamp grip & movement trigger 8. Sharpener assembly 9. Knife 10. Front knife edge protection 11. Slice deflector 12.
  • Page 4 Machine Operation Machine operation 1. Rotate the flywheel (1) until the carriage (3) is to the front of the Turn the fywhe@l 1 drawing the carriage 1 tcewards the cperatori: machine Pull up tha product grip 7; 2. Lift the product clamp (7) upwards, using the handle and clamp trigger grip 3.
  • Page 5 Lowei the produc t g Hp 7 to hold the product: Lower the lever 5 and move it to 5. Lower the product clamp (7) to hold the product .:tiaw the product near the blade 6. User the handle 5, push down and slide the Drawing the produ: t nocir the product tray (6) towards the knife until product is blade or an -ay can be carried out...
  • Page 6 6. Full remove the product tray locking knob (15) and slide off the product tray (6) 7. Carefully clean the carriage tray (3). 8. Clean the knife, clean away from the centre as shown in the diagram below 9. Open the slice deflector (11) and carefully clean behind the knife and knife support casting 10.
  • Page 7 11. Remove the rear waste tray (13), clean it and clean the machines base beneath the knife. Replace the tray 12. Remove the receiving tray (12) by unlocking the retaining clips and clean the tray 13. Clean the remainder of the machine 14.
  • Page 8 4. Rotate the flywheel and press the sharpening stone button (8.1) for 10 to 15 seconds. 5. Release the sharpening button 6. Rotate the flywheel and press the honing stone button (8.2) for 2 to 3 seconds. 7. Return the sharpening assembly (8) into it original position and lock into place.
