EXPANDER OPTION
To connect one GL2 or GL2-S console as a channel expander to a second
console by means of a single interconnecting cable.
Kit GL2-SL1 = SINGLE
Single option to install SYS-LINK to one GL2/GL2-S console to allow
interconnection to a second console already fitted with SYS-LINK.
Interconnecting cable not supplied.
Kit GL2-SL2 = DUAL
Dual option to install SYS-LINK to two GL2/GL2-S consoles.
Interconnecting cable supplied.
For information on using SYS-LINK please refer to APPLICATIONS NOTE AP0205
FITTING INSTRUCTIONS
Publication AP0204

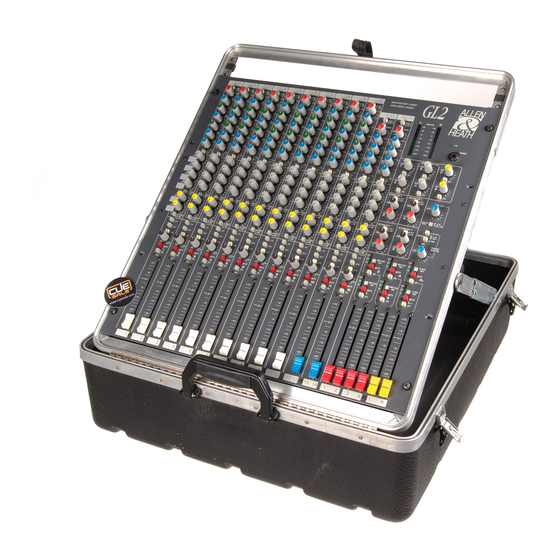

GL2 &
GL2S
RACK MOUNT MIXERS
SYS-LINK
Issue 2
Aug 95
Advertisement
Related Manuals for ALLEN & HEATH GL2
Summary of Contents for ALLEN & HEATH GL2
- Page 1 RACK MOUNT MIXERS SYS-LINK EXPANDER OPTION To connect one GL2 or GL2-S console as a channel expander to a second console by means of a single interconnecting cable. Kit GL2-SL1 = SINGLE Single option to install SYS-LINK to one GL2/GL2-S console to allow interconnection to a second console already fitted with SYS-LINK.
- Page 2 THE GL2 SYS-LINK EXPANDER OPTION The GL2-SL1(2) option is supplied as a kit of parts to be installed in the ALLEN & HEATH GL2 or GL2-S console. This allows console to console interconnection via the GL2 SYS-LINK connector standard. For information on using SYS-LINK please refer to the separate APPLICATIONS NOTE AP0205.
- Page 3 Now mount the SYS-LINK assembly to stereo channel 15/16 using the M3x2mm screws previously removed through the stereo board holes into the spacers. 5a. SOLDER ON THE SYS-LINK WIRE HARNESS GL2 DIAGRAM 2 Lay the harness above the faders positioning each branch in place against the Group and Master circuit assemblies.
- Page 4 TEST THE CONSOLE Apply power and test the console for correct operation. SYS-LINK may be tested by probing the D-connectors or connecting to another GL2 or GL2-S with the option fitted. A standard 25way male D-type connector cable is required to interconnect consoles.
