OJ Microline ETR2-1550 Instructions Manual

IN ST RUC T I ON S
OJ Microline
57653A 04/09 (DJU)
• English
• Deutsch
• Français
• Русский
• Polska
English

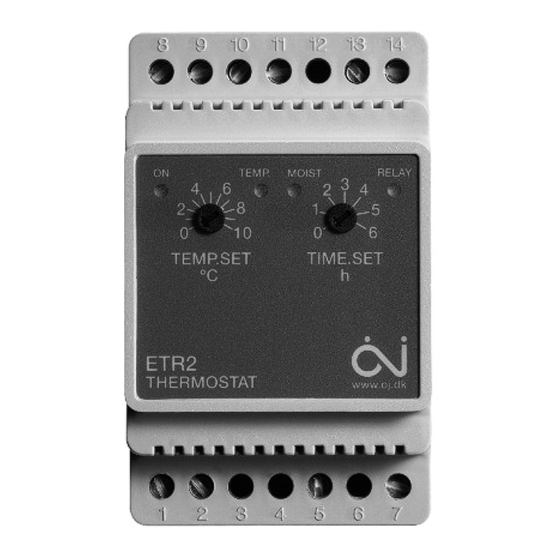

Type ETR2 is an electronic thermostat for
economical ice and snow melting on outdoor
areas and in gutters. Ice forms due to a
combination of low temperature and moisture.
ETR2 detects temperature and moisture and the
snow melting system will usually only be
activated if snow or ice is present. ETO2 is
suitable for controlling electric heating cables.
Product programme
ETR2-1550 Thermostat.
ETOG-55 Embedded sensor for detecting
temperature and moisture.
ETOR-55 Gutter sensor for detecting moisture.
ETF-744/99 Outdoor sensor for detecting
temperature.
CE MARKING
OJ Electronics A/S hereby declares that the
product is manufactured in accordance with
Council Directive 89/336/EEC on
electromagnetic compatibility (and subsequent
amendments) and Council Directive
2006/95/EEC on electrical equipment designed
for use within certain voltage limits.
Applied standards
EN 61000-6-3, EN 61000-6-2, EN 60730-1 and
EN 60730-2-9.
The product may only be used if the complete
installation complies with current directives.
The product carries a manufacturer's warranty if
installed in accordance with these instructions
and current regulations.
If the product has been damaged in any way,
e.g. during transport, it must be inspected and
checked by authorised personnel before being
connected to the power supply.
WARNING – Important safety instructions.
Always disconnect the power supply before
performing installation or maintenance work on
this control unit or any of the components con-
nected to it. This control unit and the compo-
® Type ETR2
nents connected to it should only be installed
by qualified electricians. Electrical installation
must be performed in accordance with applica-
ble local regulations.
TECHNICAL DATA
Thermostat ETR2-1550:
Supply voltage . . . . .230 V AC ±10%, 50-60 Hz
Output relay (potential-free contact, NO) . .16 A
On/off differential . . . . . . . . . . . . . . . . . . . .0.3°C
Temperature range . . . . . . . . . . . . . . . .0/+10°C
Run-on time . . . . . . . . . . . . . . . . . . . . .0-5 hours
Ambient temperature . . . . . . . . . . . . .-10/+50°C
Ambient air humidity . . . . . . . . . . . . . . .10-95%
Enclosure rating . . . . . . . . . . . . .IP 20 / Nema 1
Power consumption . . . . . . . . . . . . . . . . . .3 VA
Weight
Dimensions H/W/D . . . . . . . . . . . . 86/52/59 mm
Embedded sensor type ETOG-55:
Designed to be embedded in outdoor areas.
Detection . . . . . . . . . .Moisture and temperature
Mounting . . . . . . . . . . . . . . . . . . . .Outdoor area
Enclosure rating . . . . . . . . . . . . . . . . . . . . .IP 68
Ambient temperature . . . . . . . . . . . . .-20/+70°C
Dimensions . . . . . . . . . . . . . . . . . .H32, Ø60 mm
Gutter sensor type ETOR-55:
Designed to be mounted in gutter or downpipe.
Is used together with outdoor sensor type ETF.
Detection . . . . . . . . . . . . . . . . . . . . . . . .Moisture
Mounting . . . . . . . . . . . . . . .Gutter or downpipe
Enclosure rating . . . . . . . . . . . . . . . . . . . . .IP 68
Ambient temperature . . . . . . . . . . . . .-20/+70°C
Dimensions H/W/D . . . . . . . . . . .105/30/13 mm
Outdoor sensor type ETF-744/99:
Detection . . . . . . . . . . . . . . . . . . . . .Temperature
Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . .Wall
Ambient temperature . . . . . . . . . . . . .-20/+70°C
Dimensions H/W/D . . . . . . . . . . . .86/45/35 mm
The snow and ice melting system is deactivated
in the event of sensor failure.
SENSOR INSTALLATION
Embedded sensor ETOG, fig. 1:
For installation on outdoor areas where snow
and ice is a regular problem. The sensor must
be embedded with its top flush with the
surroundings with the help of the accompanying
installation plate. The sensor cable must be
installed in accordance with current regulations.
We recommend that cable pipes be laid to
protect the sensor cable. Detailed installation
instructions are supplied with the sensor.
Gutter sensor ETOR, fig. 2:
For installation in a gutter or downpipe on the
sunny side of the building. It is important to
ensure that the sensor contact elements face
against the flow of melt water. If necessary, two
sensors can be installed in parallel.
Detailed installation instructions are supplied
with the sensor.
Outdoor sensor ETF, fig. 2:
For use in conjunction with gutter sensor ETOR.
Can also be used separately for the detection of
temperature alone. The sensor should be
mounted on the wall under the eaves on the
north side of the building.
Sensor cables
ETOG and ETOR are supplied with 10 m cable,
which can be extended up to approx. 200 m
using standard installation cable: 6x1.5 mm² for
ETOG and 4x1.5 mm² for ETOR (total resistance
© 2009 OJ Electronics /S · ® The OJ trademark is a registred trademark belonging to OJ Electronics /S
. . . . . . . . . . . . . . . . . . . . . . . . . . .200 g
must not exceed 10 ohm). The ETF cable can
be up to approx. 50 m in length. Sensor cables
must be installed in accordance with current
regulations. They must never be installed
parallel to power cables as electrical
interference may distort the sensor signal.
Thermostat installation
The thermostat should be DIN-rail mounted in
an approved panel.
Connect supply voltage to terminals L and N.
Electrical installation must be performed in
accordance with applicable local regulations.
Setup
ETR2 can be set up for ice and snow melting on
outdoor areas in conjunction with ETOG
sensors or in gutters/downpipes in conjunction
with ETOR and ETF sensors.
• Electric heating control with ETOG
(fig. 4 & 5):
Connect 1 ETOG sensor to terminals 8-14.
Connect heating cable to output relay using
terminals 5 and 8.
• Electric heating control with ETOR + ETF
(fig. 4 & 6):
Connect 1 ETOR sensor to terminals 10-14.
Connect 1 ETF sensor to terminals 8 and 9.
Connect heating cable to output relay using
terminals 5 and 7.
WIRING (fig. 3)
Terminal Colour code Wiring
1, 2 Supply voltage,
230 V AC 50/60 Hz
5, 7 Output relay,
16 A (potential free),
Heating cable
8, 9 grey/purple Temperature sensor 1,
(1/2) ETOG or ETF
10, 11 yellow/white Moisture sensor,
(5/6) ETOG or ETOR
13, 14 brown/green Heating element,
(3/4) ETOG or ETOR
Environment protection and recycling
Help protect the environment by disposing of
the packaging and redundant products in a
responsible manner.
Product disposal
Products marked with this symbol
must not be disposed of along with
household refuse but must be
delivered to a waste collection
centre in accordance with current
local regulations.
Figures
Fig. 1. Installation of embedded sensor
1 Sensor
2 Installation plate
3 Heating element
Fig. 2. Installation of ETOR gutter sensor and
ETF outdoor sensor
1 Thermostat ETO2
2 Gutter sensor
3 Outdoor sensor
