SOUNDMASTER MCD 5020-1 Instruction Manual

SOUNDMASTER MCD 5020-1 Instruction Manual

Stereo radio double cassette recorder with 3 cd changer and turntable
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

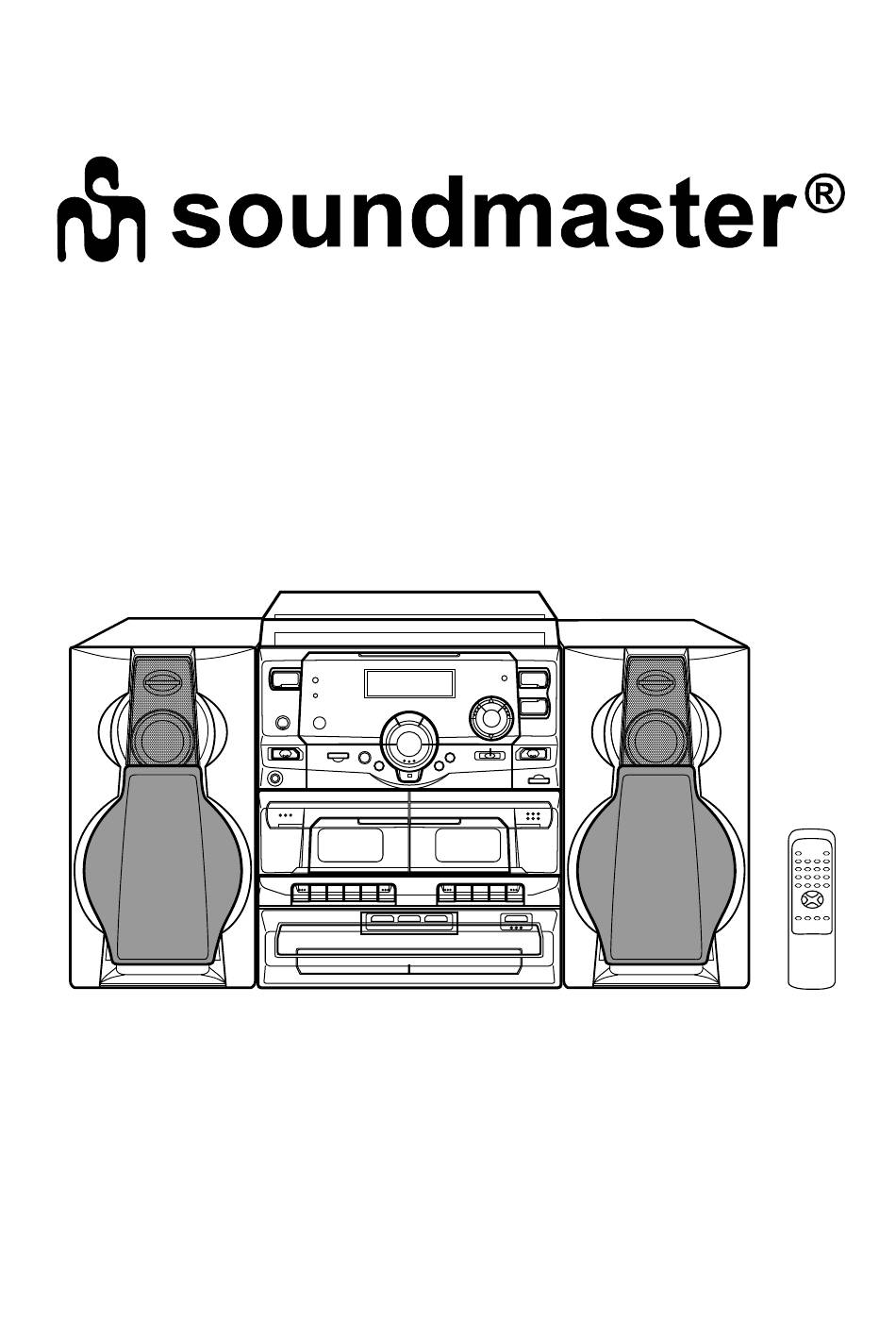

BEDIENUNGSANLEITUNG
Modell: MCD 5020-1
Bitte vor Inbetriebnahme sorgfälltig durchlesen !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MCD 5020-1 and is the answer not in the manual?

Questions and answers

Related Manuals for SOUNDMASTER MCD 5020-1

Summary of Contents for SOUNDMASTER MCD 5020-1

  • Page 1 BEDIENUNGSANLEITUNG Modell: MCD 5020-1 Bitte vor Inbetriebnahme sorgfälltig durchlesen !
  • Page 2 INSTRUCTION MANUAL Stereo Radio Double Cassette Recorder with 3 CD Changer and Turntable MCD 5020-1...

  • Page 3: Troubleshooting

    TROUBLE SHOOTING Power switch on, but no power Record button cannot be pressed in • Check power to wall outlet. • Cassette erase-protection tab is removed. • Check AC cord connection to wall plug. Use another cassette or apply adhesive tape over tab hole.
  • Page 4 CONTROLS 1) Plak-up Holder 15) CD Door 2) Speed Selector 16) CD Skip Forward button 3) Spindle Adapter 17) Standby LED Indicator 4) LCD Display 18) Volume Up button 5) CD Skip Backward button 19) Volume Down button 6) Power button 20) Tuning button 7) Power Standby button 21) CD PLAY/PAUSE button...
  • Page 5 REMOTE CONTROL This unit comes with a Remote Control which allows the user to control certain REMOTE CONTROL RANGE system functions from a distance of up to 20 feet. The Remote Control requires two AAA Remote Control Sensor batteries (not included). NOTE : The Remote Control should always be aimed at the Remote Control Sensor on the...

  • Page 6: Remote Control

    CONNECTIONS POWER CONNECTION HEADPHONE JACK (PHONES) REMOTE CONTROL Connect the power cord to AC outlet only. This unit will accept stereo headphones (not included) with a 1/8" plug and an impedance SPEAKER JACKS of 16 ohms or greater. Connect the SPEAKER PLUGS to the The speakers are automatically SPEAKER JACKS located on the rear of the disconnected when headphones are...

  • Page 7: Cassette Tapes

    PHONO Note : 6. Place the tone arm to the desired position. Remove the stylus protector. 7. Adjust VOLUME & EXTRA BASS Be sure that the tone arm is detached from the controls to the desired sound level and sound tone arm rest before operation and re-secured equalization.
  • Page 8 CASSETTE PLAYBACK (DECK B) (DECK A) The TAPE B is used for playback only. The Fast-Forward and Rewind TAPE A is used both for recording and For fast winding or rewinding the tape, press playback. the F.Fwd or REW button. Press the STOP/ Do not turn the unit off while the tape is EJECT button when the desired location has running.

  • Page 9: Maintenance

    DUBBING (DECK B) TO (DECK A) This unit enables you to duplicate a pre- Dubbing at High Speed recorded tape to another tape by using the This unit is equipped with a HIGH SPEED unit-in double deck mechanisms. It is DUBBING system which allows duplicating performed only one way, from the DECK B a pre-recorded tape at approximately two-...

  • Page 10: Handling Compact Discs

    Safety Instruction : Do not connect the power cord to the mains supply until all other connections have been made. Do not expose this apparatus to dripping or splashing HANDLING COMPACT DISCS To remove a disc from its storage case, press down on the centre of the case and lift the disc out, holding it carefully by the edges.

  • Page 11: Loading Cds

    LOADING CDS 1) Press the POWER button to turn the unit on. 2) Select the CD FUNCTION button. The CD Disc tray will turn to check if any discs are present. If no discs are in the tray, NO DISC will appear in the display. 3) Press the OPEN/CLOSE button to open the disc compartment.

  • Page 12: Programmed Disc Play

    CAUTION Do not put anything except a compact disc into the compartment. Foreign objects can damage the mechanism. Do not force the compartment by hand during the opening and closing operations. Keep the disc compartment closed when not in use to prevent dirt and dust from entering the mechanism.
  • Page 13 Listen to Programmed Tracks Press the PLAY/PAUSE button. Disc play will start at the beginning of the first programmed track. To Clear The Program Memory If the disc is playing, press the STOP button. Press the STOP button again until the MEMORY Indicator does not appear. The program memory will also be cleared if the disc compartment is opened, if the function is changed, or if the power is switched off.
  • Page 14 REPEAT DISC PLAY BY REMOTE CONTROL This function allows the operator to repeat a single track, all of the tracks of one CD or with all of the tracks on all 3 CD's. 1. REPEAT ALL Disc Press REPEAT Disc once "REPEAT DISC ALL" appears in the display Press PLAY/PAUSE to start play 2.
  • Page 15 INTRO BY REMOTE CONTROL Operates in STOP or PLAY mode 1. Press INTRO once, each song will play for 10 seconds. 2. Press INTRO twice to delete this function. Unit will resume normal play. SLEEP BY REMOTE CONTROL 1. Press SLEEP once, "SLEEP 90" will appear on LCD. This means unit will be stopped & turned to STAND BY mode in 90 minutes.

  • Page 16: Track Skip

    TRACK SKIP Starting disc play from the beginning of a particular track Press the Forward or Reverse SKIP/SEARCH buttons to select the desired track. The number of the selected track will be shown on the CD display. Press the PLAY/ PAUSE button to start play. To skip to the next track on a disc For example, to skip ahead to the beginning of track 2 while track 1 is playing.
