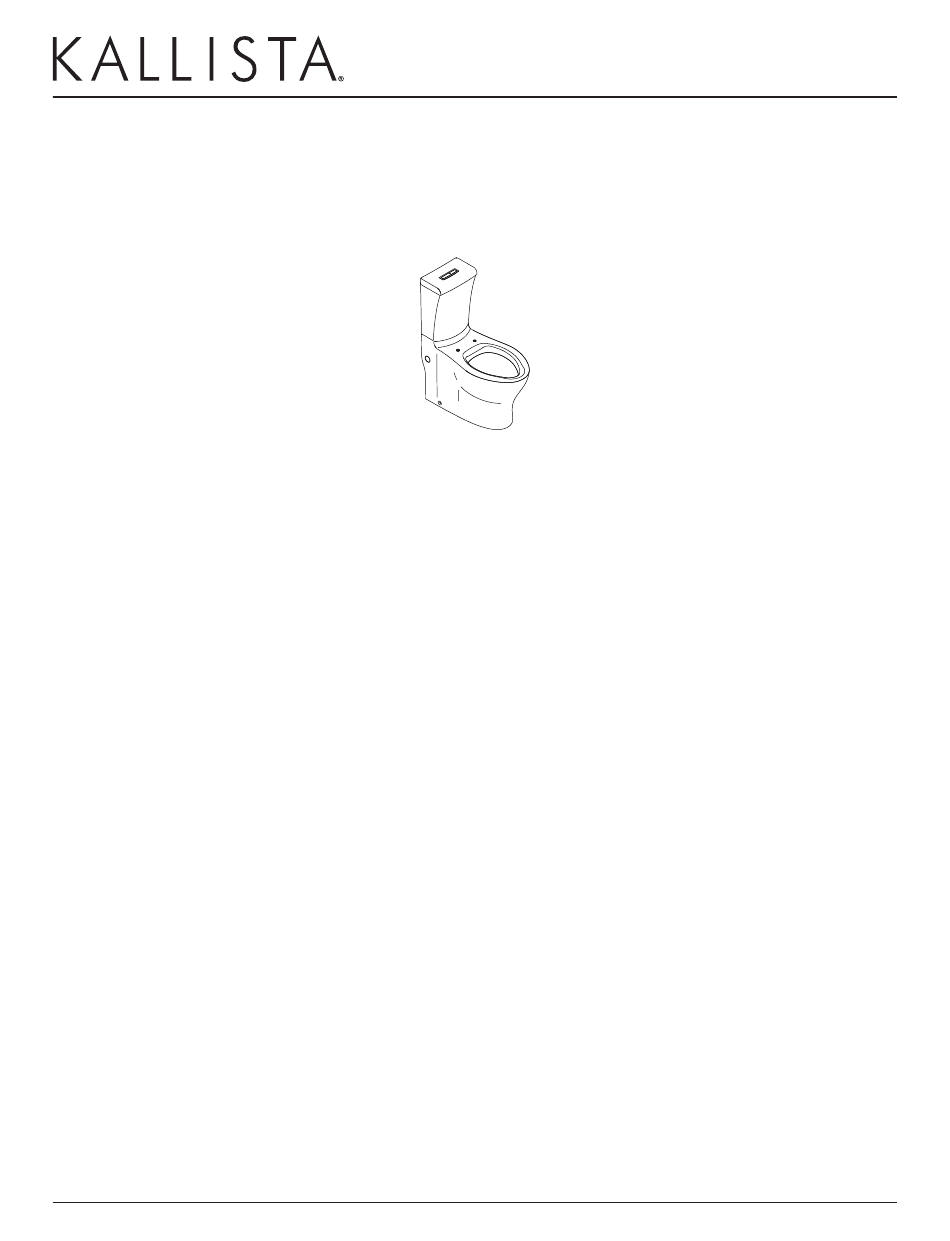

- Page 1 Toilet INSTALLATION INSTRUCTIONS P70310 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 1 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
- Page 2 NOTE: The toilet pictured in the installation steps may differ from the model being installed. Observe all local plumbing and building codes. ‰ KALLISTA reserves the right to make revisions in the design of products without notice, as specified in the ‰ Price Book.
- Page 3 Position brackets as shown on the template and install. 3/8” NPT Supply 8-1/2” (21.6 cm) 11-13/16” (30 cm) Anchor 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 3 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
- Page 4 Slide nut onto the supply hose, with flared end last and run hose through toilet wall. Hose Guide 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 4 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
- Page 5 Mark hole location, drill 3/16” pilot colored buttons are in their hole. 5/16” X 1-3/4” original positions. Retaining Screw Washer Buttons Trapway 3/16” T-Bolt 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 5 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
- Page 6 Install cap to cover screw. Do not overtighten. Caulk Connect supply and turn on the water. 3/8” Supply Bushing Screw 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 6 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
- Page 7 Push Button Rods Locknuts 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 7 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
-
Page 8: Troubleshooting Guide
Partially close the water supply shut-off valve if the water pressure to the toilet is too high. Check the toilet performance following any such adjustment. Remove dirt or obstructions from the valve head. Flush the lines. 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 8 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094. -
Page 9: Service Parts
42398 1111746-A Washer 42397 Retaining Screw 1068389 Water Supply Hose 1139600 Trapway **Finish/color code must be specified when ordering. 1142313_2_A Questions? Problems? For additional assistance, please contact KALLISTA’s Customer 9 of 9 Service Department at 1-888-4KALLISTA (1-888-452-5547) or FAX 1-888-272-3094.
