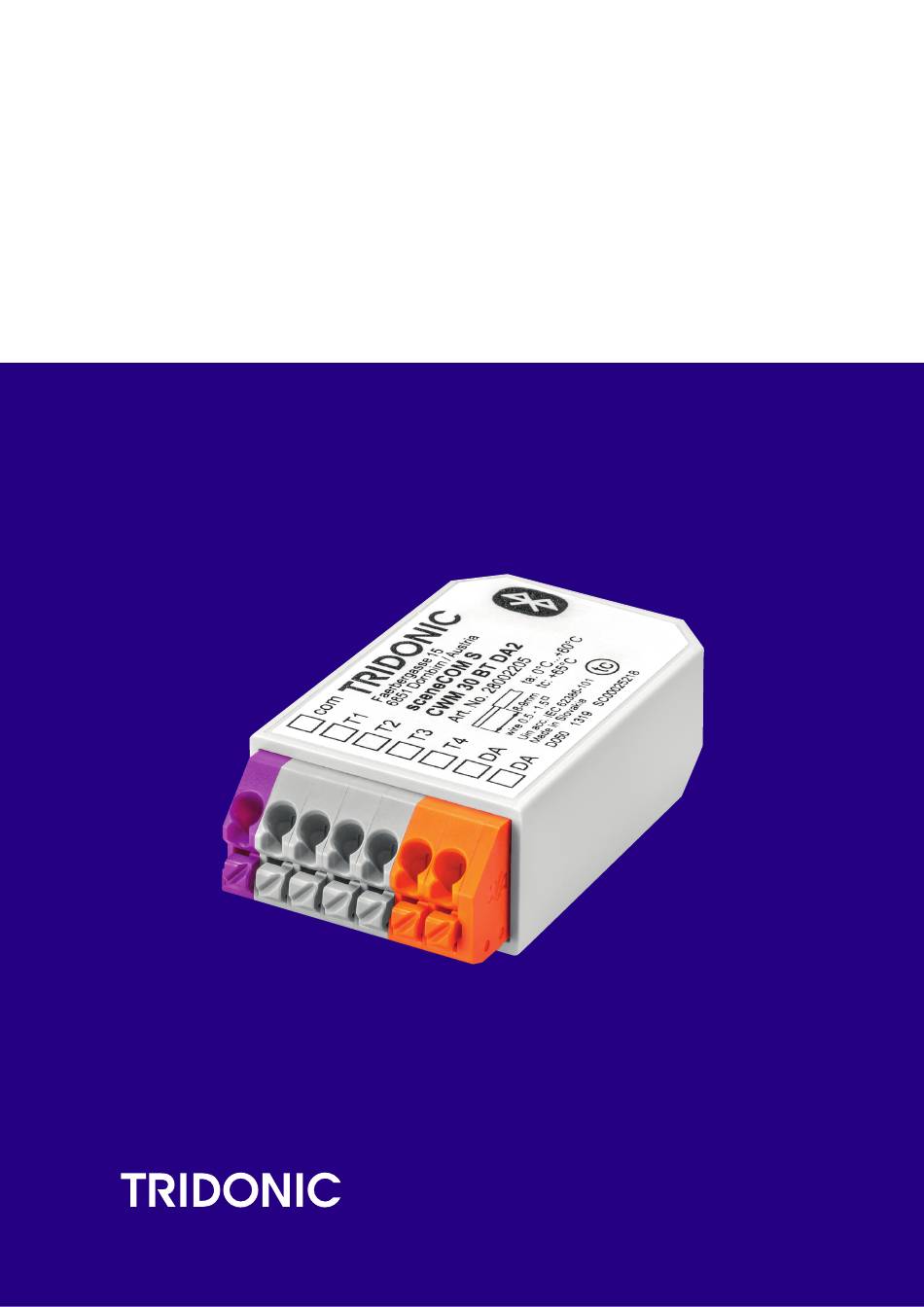

- Page 1 Sensors and Controls sceneCOM S Manual...
-
Page 2: Table Of Contents
Manual sceneCOM S | 11-2019 | 1.0 | en Table of Contents 1. Validity 3 1.1. Copyright ....................... . . 3 1.2. -
Page 3: Validity
Scope of documentation This operating instruction is valid for the sceneCOM S system. TRIDONIC GmbH & Co KG is constantly striving to develop all its products. This means that there may be changes in form, equipment and technology. Claims cannot therefore be made on the basis of information, diagrams or descriptions in these instructions. -
Page 4: Safety Instructions
Manual sceneCOM S | 11-2019 | 1.0 | en Safety instructions The instructions in this section have been compiled to ensure that operators and users of the sceneCOM S system from Tridonic are able to detect potential risks in good time and take the necessary preventative measures. - Page 5 Manual sceneCOM S | 11-2019 | 1.0 | en Safety instructions ½ CAUTION! Electromagnetic compatibility (EMC) Although the Tridonic control device meets the stringent requirements of the appropriate directives and standards on electromagnetic compatibility, it could potentially interfere with other devices under certain circumstances! 5 / 18...
-
Page 6: The Scenecom S System
The sceneCOM S system 3.1. General information The sceneCOM S system is a DALI-2 monitoring and control solution. DALI-2 devices can be configured locally via Bluetooth connection and app. The sceneCOM S can be updated over the air, providing a continuously evolving solution. - Page 7 Manual sceneCOM S | 11-2019 | 1.0 | en The sceneCOM S system Image Title Description Sensor developed to work with the latest DALI specification MSensor G3 SFI 30 PIR 10DPI WH Monitoring of ambient light and motion detection Remote control interface allowing infrared remote control...
- Page 8 Manual sceneCOM S | 11-2019 | 1.0 | en The sceneCOM S system Image Title Description Digital leading-edge and trailing-edge phase dimmer DALI-PCD 1-300 one4all G2 Total connected load: 1 – 300 VA one4all input: DALI, DSI, switchDIM and corridorFUNCTION input...
-
Page 9: Scenecom S Solution Schematic
Manual sceneCOM S | 11-2019 | 1.0 | en The sceneCOM S system 3.3. sceneCOM S solution schematic sceneCOM S supports: single DALI Line (max 250mA): up to 64 converters / drivers 16 groups 16 scenes 16 input devices / sensors / push buttons 3.4. - Page 10 Manual sceneCOM S | 11-2019 | 1.0 | en The sceneCOM S system Max. output cable length Recommended wire length depending on material, ambient temperature and cross section. Material Cross section Max. cable length 25 °C 50 °C 75 °C Copper 0.20 mm²...
-
Page 11: Wireless Signal Range
3.6. Wireless signal range Maximum range of the signal provided by the sceneCOM S is up to 20 m. Avoid mounting the device behind glass, concrete surfaces and in metal enclosures. If mounted behind such materials the signal range will be reduced. -
Page 12: Applications Overview
Manual sceneCOM S | 11-2019 | 1.0 | en Applications overview The sceneCOM S System can cover all applications where one DALI-2 Line fulfills the requirement. In the following pages a short overview of different applications is described. Individual office (cabinet type), p. -
Page 13: Individual Office (Cabinet Type)
Manual sceneCOM S | 11-2019 | 1.0 | en Applications overview 4.1. Individual office (cabinet type) sceneCOM S MSensor G3 DALI PS3 IR6 remote Lowbay Multi-Sensor (presence & light) Presence sensor (presence only) Basic setup: Advanced setup: On/Off, IR6 remote... -
Page 14: Open Plan Office
Manual sceneCOM S | 11-2019 | 1.0 | en Open plan office 4.2. Open plan office sceneCOM S MSensor G3 DALI PS3 DALI XC G3 IR6 remote Lowbay DALI DALI Push IR remote Power Multi-master button supply application input controller Multi-Sensor (presence &... -
Page 15: Meeting / Conference Room
Manual sceneCOM S | 11-2019 | 1.0 | en Meeting / conference room 4.3. Meeting / conference room sceneCOM S MSensor G3 DALI PS3 IR6 remote Lowbay DALI Multi-master IR remote Power supply application controller Multi-sensor (presence & light) Presence sensor... -
Page 16: Classroom
Manual sceneCOM S | 11-2019 | 1.0 | en Meeting / conference room 4.4. Classroom sceneCOM S MSensor G3 DALI PS3 IR6 remote Lowbay DALI Multi-master IR remote Power supply application controller Multi-sensor (presence & light) Presence sensor (presence only) -
Page 17: Warehouse / Diy Shop (Between Shelf Lighting Control)
Manual sceneCOM S | 11-2019 | 1.0 | en Warehouse / DIY shop 4.5. Warehouse / DIY shop (between shelf lighting control) sceneCOM S MSensor G3 DALI PS3 DALI XC G3 Lowbay remote DALI Multi-master DALI Power application Push supply... -
Page 18: Industrial Midrack Small Area Applications
Manual sceneCOM S | 11-2019 | 1.0 | en Industrial midrack small area applications 4.6. Industrial midrack small area applications Focus use-case: Areas not continuously occupied with people and machines, light follow you, Maximal energy savings 80-90 %. This use-case as well can be relevant for dot-type light sources (e.g.
