Copeland Catalina Bed Assembly Instructions

Table of Contents

Download this manual

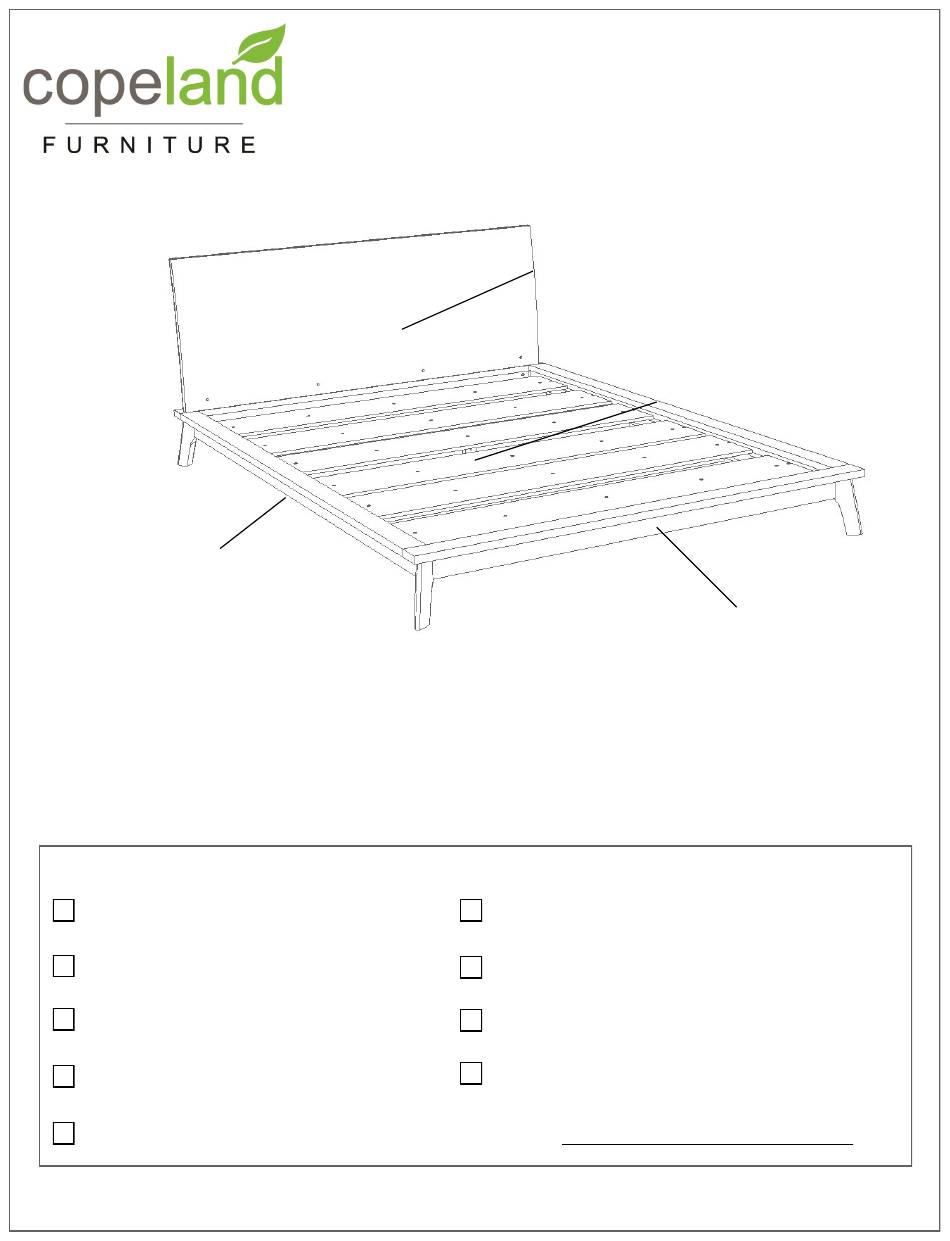

Side Rail Assembly x2

Notice: Beds must be disassembled before moving to avoid damage. Never attempt to move the bed while it is assembled.

Failure to do so would void the warranty.

is delivered in four boxes. Unpack the bed parts onto a soft, level surface in the space where the bed is to be

Your Catalina bed

used. Lay out the headboard, side rails and footboard in their approximate locations.

Tools required for assembly - Straight and right angle wrenches (included) and Phillips Head Screw Driver.

Hardware List

Threaded Rods (8)

Nuts (8)

Washers (8)

Straight Wrench

Right Angle Wrench

Catalina Bed

assembly instructions

#10 x 1 1/2" Screws (12)

#8 x 1 3/4" Screws (3)

8.5" Support Blocks (40" Bed)

6" Support Blocks (37" Bed)

Packaged By

www.copelandfurniture.com

Headboard Assembly x1

Platform Assembly x6

Footboard Assembly x1

Table of Contents

Do you have a question about the Catalina Bed and is the answer not in the manual?

Page 1 Failure to do so would void the warranty. is delivered in four boxes. Unpack the bed parts onto a soft, level surface in the space where the bed is to be Your Catalina bed used. Lay out the headboard, side rails and footboard in their approximate locations.
Page 2 Catalina Bed - assembly instructions Step 1 Threaded Insert Threaded Rod x8 (pre-installed) Install all threaded rods into the threaded inserts (pre installed in the headboard and footboard) and hand tighten as far as possible. Step 2 Washer and Hex Nut x8 Slide a side rail onto the headboard using the dowel in the end of the rail and the threaded rod as a guide.
Page 3 Catalina Bed - assembly instructions Step 4  Platforms assemblies are to be positioned on the side rails as the illustration shows.  Begin with one platform assembly closest to headboard and proceed to step 5 Side View of Assembled Side Rail, Platforms and Center Support Blocks...
Page 4 Important: Please Note: Beds must be disassembled before moving to avoid damage. Never attempt to move the bed while it is assembled. To care for and preserve the finish on your new Copeland Furniture piece, please keep the following recommendations in mind.
