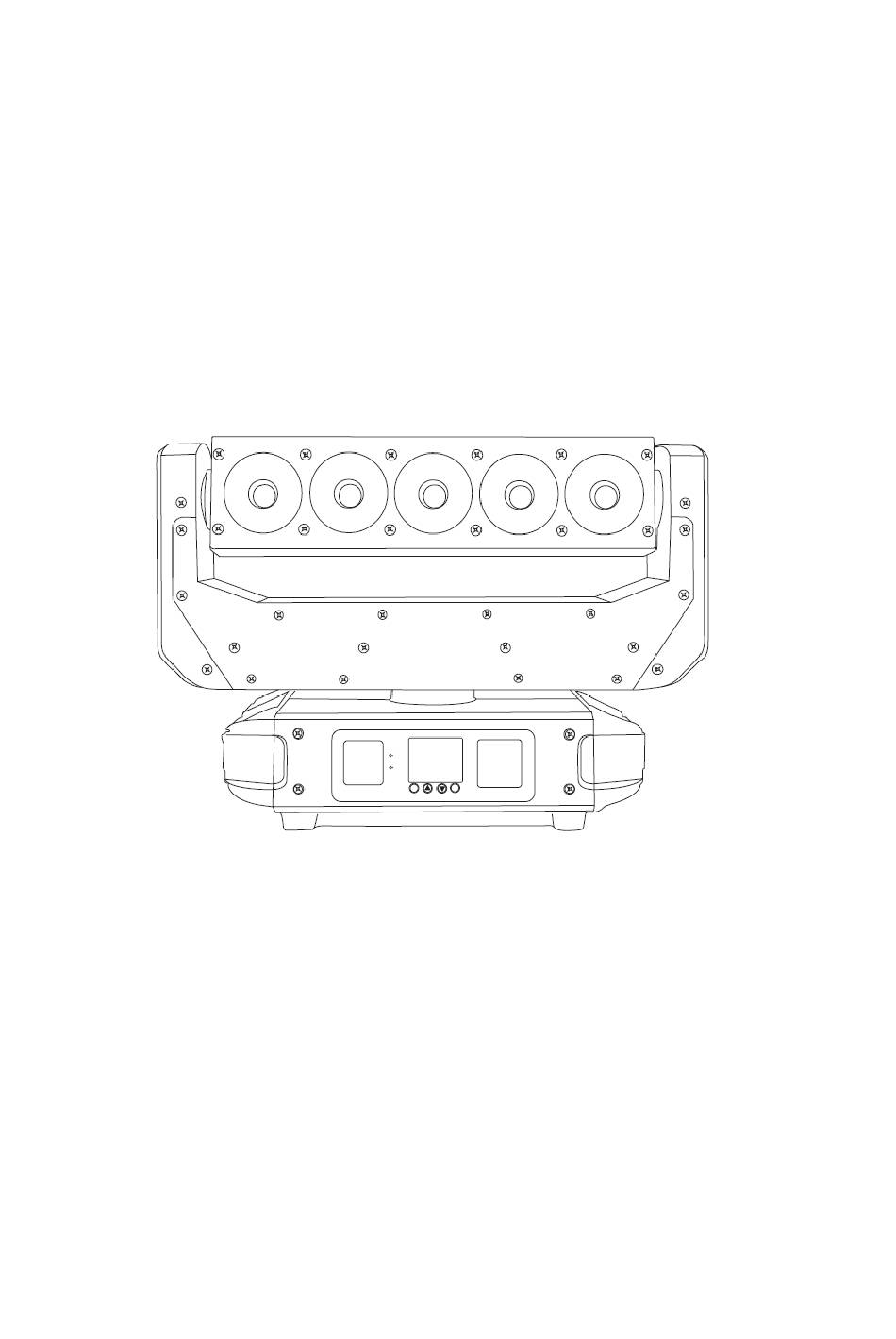

- Page 1 M WASH 520P User Manual Ver1.0...
-
Page 2: Table Of Contents
Table of contents INTRODUCTION ..............2 SAFETY INSTRUCTION ............2 OPERATING DETERMINATIONS .......... 3 DESCRIPTION OF THE DEVICE ..........3 INSTALLATION ............... 4 MENU MAP ................5 DMX-protocol ................6 TECHNICIAL SPECIFICATIONS .......... 10... -
Page 3: Introduction
CAUTION ! Keep this device away from rain and moisture Unplug mains lead before opening the housing For your own safety, please read this user manual carefully before you initially start-up Every person involved with installation. operation and maintenance of this fixture has to - be qualified - follow the instruction of this manual - consider this manual to be part of the total product... -
Page 4: Operating Determinations
power plug last. The power plug must always be inserted without force .Make sure that the plug is tightly connected with the outlet. Never let the power-cord come into contact with other cables! Handle the power-cord and all connections with the mains with particular caution! Never touch them with wet hands .as this could lead to mortal electrical shock. -
Page 5: Installation
> Beam Angle 12 degree > 5pcs 15W RGBW LEDS > 16/32 channel DMX-512 . > Pan :540° /tilt:infinite. > Variable electronic strobe. > Variable electronic dimmer(0-100%). > LCD display menu with invert. > Reset to factory settings option. > Pan/tilt invert option. >... -
Page 6: Menu Map
The earth has to be connected. The device must only be connected with an electric installation carried out in compliance with IEC standards. OPERATION After you connected the effect to the mains, The fixture starts running Stand Alone operation In the stand alone mode, the fixture can be use without controller Master/slave-operation The master/slave-operation enables that several devices can be synchronized and controlled by one master-device... -
Page 7: Dmx-Protocol
DMX Address 0-512 Channel Mode 16/32CH Auto Speed 1-99 Inverse Pan ON/OFF Inverse Tilt ON/OFF Pan-Tilt Swap ON/OFF Pan-Tilt Encoder ON/OFF NO DMX Signal Keep/Clear Display DMX Address/Black/off Load default OK/Cancel Reset Pan Fine Tilt Tilt Fine Manu Pan-Tilt Speed Green Blue White... - Page 8 Tilt Fine 0-255 Tilt Fine PAN/TILT speed 0-255 Decreasing speed Tilt Infinite Movement No Function 6-149 Forwards rotation with decreasing speed 150-255 Backwards rotation with increasing speed Dimmer 0-255 0-100% liner dimmer 0-255 0-100% Red Green 0-255 0-100% Green Blue 0-255 0-100% Blue White...
- Page 9 145-171 Built-in Program 6 172-200 Built-in Program 7 201-230 Built-in Program 8 231-255 Built-in Program 9 Built-in Program Speed 0-255 Built-in Program Speed from slow to fast Macro Function 0-250 No Function 251-255 Reset 32 DMX channel mode 32Channel Value Function Pan Movement 0-255...
- Page 10 234-255 Red+Green+Blue+White Built-in Program Program No Function 10-36 Built-in Program 1 37-63 Built-in Program 2 64-90 Built-in Program 3 91-117 Built-in Program 4 118-144 Built-in Program 5 145-171 Built-in Program 6 172-200 Built-in Program 7 201-230 Built-in Program 8 231-255 Built-in Program 9 Built-in Program Speed 0-255...
-
Page 11: Technicial Specifications
White 5 0-255 0-100% White Macro Function No Function 无动作 0-250 Reset 复位 251-255 TECHNICIAL SPECIFICATIONS Model M WASH 520P Voltage 110V- 250V / 50-60Hz Power consumption: 130W 5pcs 15w RGBW LEDs Net Weight 8.2Kgs Dimensions 42x 20 x 30 cm...
