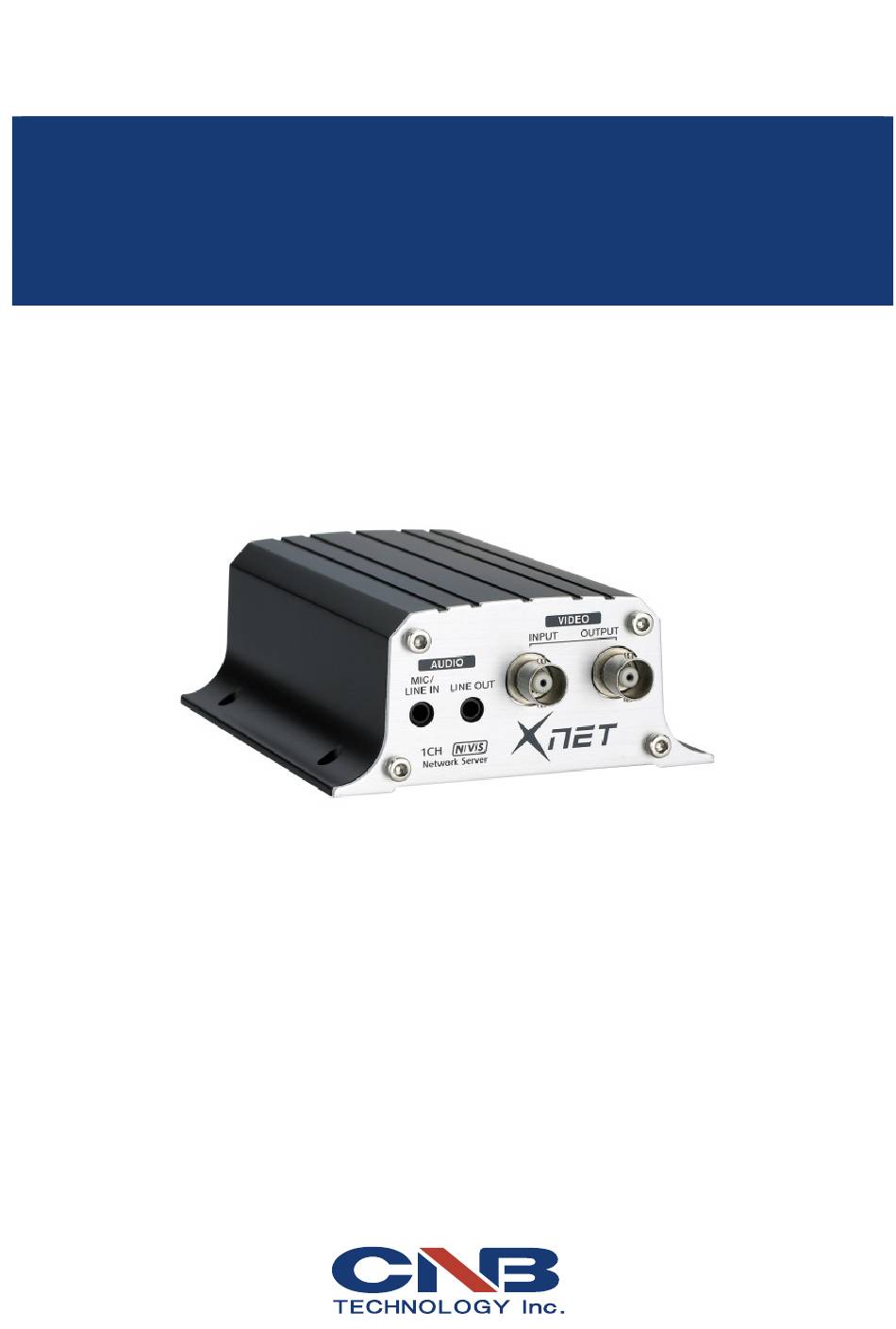

- Page 1 Ver. 1.1 XNET Network Video Server (INS2000) Installation Manual...
- Page 2 About this Installation Guide A compatibility and durability test ensured this product’s high performance. This installation guide is for XNET Network Video Server users only, and it describes operations related to XNET Network Video Server. Please read this manual thoroughly paying attention to cautions and warnings before using the product even if you have used similar products before.
-
Page 3: Table Of Contents
2.3.2 Rear View ............................ 7 2.3.3 Connecting to Alarm devices ....................... 9 3. Software Installation ..................... 10 3.1. Connecting XNET to network ....................10 3.2. Installing IP-Installer Software and Configuring IP address ..........11 3.2.1. About IP-Installer ........................11 3.2.2. Configuring IP Address ......................11 4. -
Page 4: About Xnet
Codec such as MJPEG, MPEG-4, and H.264. XNET provides stable real-time surveillance by real time video/ audio at D1 level, local storage for any network problems, and hybrid IP technology that can be used with existing analog CCTV devices. -
Page 5: About The Product
2. About the Product Please make sure the following contents are included when you open the package Contents Description Additional info. XNET Product Network Video Server Input: 100~240VAC 50-60Hz Power adapter Output : 12VDC, 2A AC power Cord 2 jack cable Software and User’s manual... -
Page 6: Functions And Designations
Mic/ Audio In Audio Out Analog Video In Analog Video Out Figure 2-1. INS2000 Front View VIDEO INPUT/OUTPUT Connect input to Camera’s Video signal. The same signal is re- transmitted to output terminal MIC / LINE IN: Connects to auxiliary Audio Device or microphone. 3.5 mm mono/ stereo audio connector is used. -
Page 7: Rear View
RS485 / Alarm in/out Terminal Network Terminal Power Video LOSS LED Event LED Power LED Reset Button SD CARD Slot Recalls Factory Default Configurations Figure 2-3. INS2000 Rear View RS-485 and ALARM IN/OUT Description Misc. Alarm Out Select NC/NO at menu screen Alarm Out Alarm In(+) Select NC/NO at menu screen... - Page 8 When optional PoE is used, the power will be supplied from the Network Cable. LINK : Yellow light indicates that the network is properly connected. ACT : Green light indicates that the XNET system connected to 100Mbps LAN. This green lamp will blink if the system receives data.
-
Page 9: Connecting To Alarm Devices
Alarm Input Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.) Alarm Sensor device requires a separate power source. Signal(+5 ~ 30VDC) Alarm in(+) Sensor... -
Page 10: Software Installation
3. Software Installation This section provides brief guidelines to install the XNET software quickly and to monitor XNET’s Video and Audio signals easily. If you have questions about details not explained in this section or if the product is not functioning as described, please refer to FAQ before contacting the store. -
Page 11: Installing Ip-Installer Software And Configuring Ip Address
A unique IP address has to be configured in order to connect network video servr and monitoring PC to a network. IP-Installer software provided in the Installation CD will configure IP address easily. If your network have a DHCP server that automatically assigns IP addresses to network video server. If your network does not have a DHCP server, the default IP address of the device is 192.168.123.100. - Page 12 2. Select the device of which you wish to change the IP address and click (Set IP Address) button to bring up the following box in Figure 3-3. Figure 3-3. IP Address box 3. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear. Figure 3-4.
-
Page 13: Using Web Viewer
4. Using Web Viewer Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide explains about using internet web browser only. For instructions on how to configure network connection using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD. - Page 14 Enter the user name and password to bring up the web viewer page. The default id and password is “root”, “admin” respectively. If you want to use a different HTTP port number from the default value, simply put a colon and port number at the end of the IP address. (For example, enter the following address when changing the port to 8080: http://192.168.123.100:8080) <Address format for accessing as an administrator>...
-
Page 15: Web Viewer Page
Web viewer page consists of Video monitor screen and menu option buttons. Figure 4-2. Web Viewer Page 15 / 18... - Page 16 Capture The image is saved as jpeg file in the following folder: C:₩xNetCapture Brings up Menu screen. Setup page for each XNET feature can be opened from this Menu screen. Setting Please refer to [XNET Owner’s Manual] for detail. Opens up PTZ page.
-
Page 17: Specification
5. Specification INS2000 Specifications Input Signal 1ch Input BNC type Composite Video Signal Signal Select NTSC/PAL (Manual) Video Output Level 1ch Video Loop Back (BNC type - 75Ω, composite) Main Processors 32bit Embedded CPU with Linux System NAND Flash Memory : 64MByte, 128MB DDR Memory System Memory SD Card : Support for Max 4GByte Size Compression... - Page 18 18 / 18...
