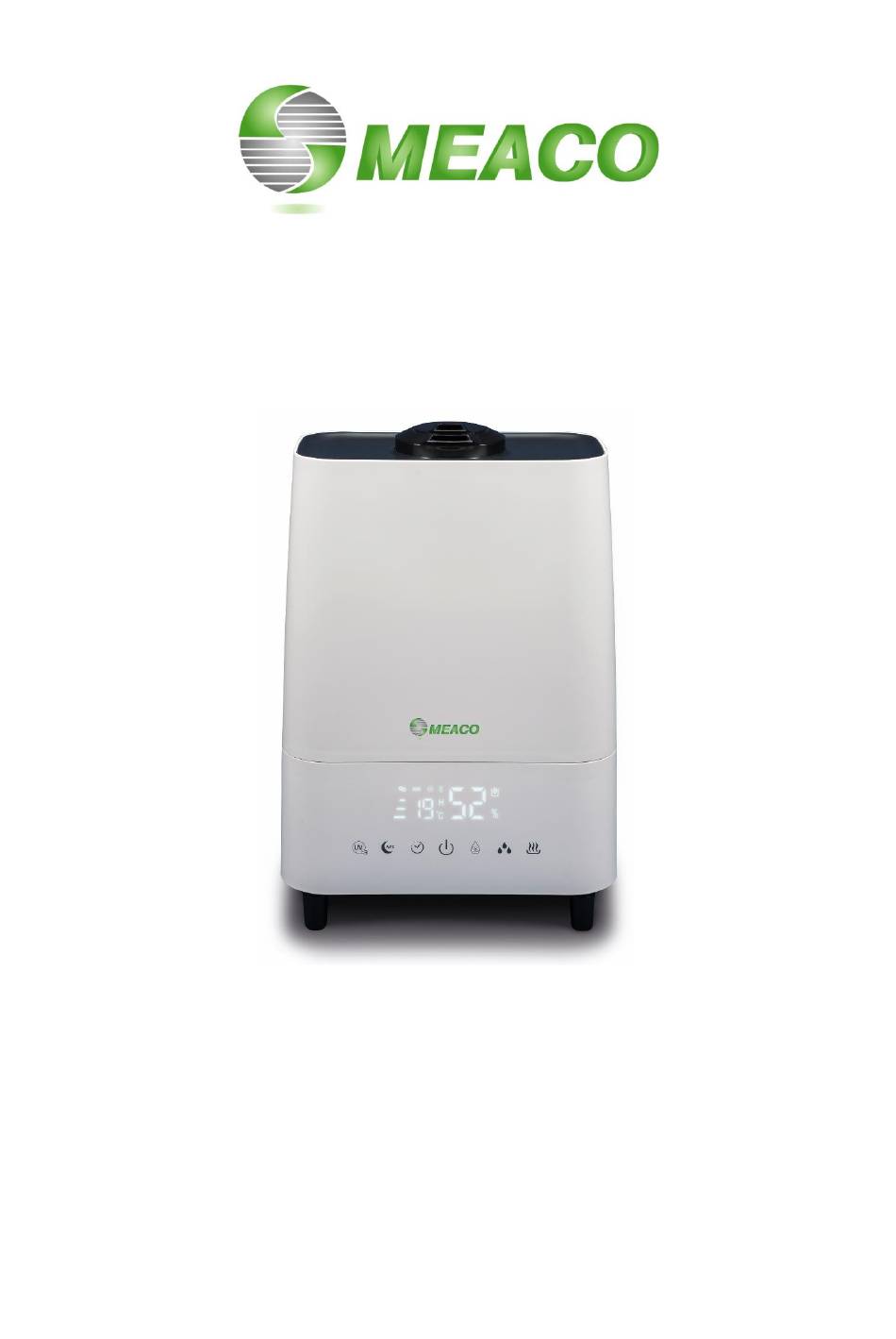

- Page 1 MeacoMist Deluxe Humidifier and Air Purifier Instruction Manual MeacoMist Deluxe Humidifier Please read this instruction manual before using the MeacoMist and keep safe for future reference. Thank you for choosing Meaco, we really appreciate it.
-
Page 2: Saftey Information
If in doubt, do not use the unit and consult a qualified electrician or a Meaco approved engineer. The operator must make the operating instruction available for the user and make sure that the user... -
Page 3: Wiring Instructions
GREEN/YELLOW. Always ensure that the cord grip is positioned and fastened correctly. Only ever use the same fuse as fitted in the original product, if in doubt please contact Meaco first, or a qualified electrician. Example wiring for a Standard British Plug:... -
Page 4: General Advice
GENERAL ADVICE ----------------------------------------------------------------------------------------------------------------------------- ---------- • Before putting your humidifier into operation for the first time, the instruction manual should be studied carefully. • After receiving the humidifier, you should check the unit for any transport damage. In case of damage, you should inform the sender immediately. •... -
Page 5: Product Identification
PRODUCT IDENTIFICATION ---------------------------------------------------------------------------------------------------------- ----------------------------- 1. Mist nozzle 2. Top cover 3. Cleaning brush 4. Water tank handle 5. Water tank 6. Water level window 7. Water tank cap 8. Water housing 9. Control panel 10. Air outlet 11. Base 12. HEPA filter 13. - Page 6 BIRDS EYE VIEW OF THE PRODUCT TOP COVER Mist nozzle Handle WATER TANK Water tank cap Low water level sensor BASE Temperature and humidity sensor PTC heater Water tank sensor Air outlet Ultrasonic pad UNDERNEATH Aroma Box Drain hole (safety feature) HEPA filter cover...
-
Page 7: Control Panel
CONTROL PANEL ----------------------------------------------------------------------------------------------------------------------------- ---------- • When the % symbol is shown, the data on the digital display will refer to the humidity level in the environment. • When the °C symbol is shown, the data on the digital display will refer to the temperature in the environment. - Page 8 TIMER Press the Timer Button to set an Off Timer between 1 and 10 hours. Continue pressing the Timer Button until the desired number of hours is reached, the set number will flash three times and then the display will change back to the room temperature. H will appear on the display to confirm the Timer has been set.
-
Page 9: Operation
OPERATION ----------------------------------------------------------------------------------------------------------------------------- ---------- Please see pages 5 and 6 to identify each part of the MeacoMist. 1. Attach the four legs to the humidifier. It is essential the legs are in place correctly to lift the base up and allow air to flow into the humidifier. Remove the top cover and water tank from the base. - Page 10 6. Use the mist nozzles on the top cover to change the direction of mist. 7. Plug the machine into a mains socket and press the Power Button. 8. To use the aroma function, complete the following steps: Remove the aroma box from the machine (see diagram below). Use water-soluble aroma oil to drop into the sponge in the aroma box.
-
Page 11: Cleaning And Storage
CLEANING AND STORAGE ----------------------------------------------------------------------------------------------------------------------------- ---------- ➢ Before cleaning the humidifier make sure the power has been turned off and the humidifier is unplugged from the mains. ➢ Once the humidifier has been used for 50 hours it will automatically stop working as it requires cleaning. - Page 12 WATER TANK • The water tank must be cleaned twice per week when the machine is in frequent use. • Use a soft cloth to clean the outside of the water tank. • There may be a small amount of dirt built up on the inside of the water tank – use a soft cloth to clean this.
- Page 13 HEPA/CHARCOAL FILTER • The HEPA filter will be able to retain 97.3% of particles 0.3 micrometres in diameter to help clean your room air. • The charcoal filter is an active charcoal filter with 12-15g of charcoal to help remove odours. •...
-
Page 14: Specifications
SPECIFICATIONS ----------------------------------------------------------------------------------------------------------------------------- --------- In Cool Mist Mode In Warm Mist Mode Mist Capacity 300ml / hour 400ml / hour Tank Capacity 5.3 litres 5.3 litres Power 105W Noise Level Maximum 35dB(A) Maximum 45dB(A) Aroma Diffuser Ioniser Ultraviolet Water Sterilisation Yes – between 1 and 10 hours Timer Night Mode Yes –... -
Page 15: Troubleshooting
TROUBLE SHOOTING ----------------------------------------------------------------------------------------------------------------------------- ---------- TROUBLE CAUSE SOLUTION Plug the machine in to a mains The machine is not plugged in socket The power has not been turned on Press the Power Button There is no mist coming Fill the water tank with water (see There is no water in the water tank out of the humidifier page 9) -
Page 16: Warranty And Customer Service
For the full list of the warranty terms and conditions please visit: www.meaco.com/warranty-terms. To prevent unnecessary expenses, we recommend that you always carefully read the user’s manual first. If this does not provide a solution, please call Meaco and we will be happy to help. This humidifier has been imported into... - Page 17 This marking indicates that this product should not be disposed with other household wastes throughout the UK and EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources.
