Summary of Contents for Reid E4 PLUS

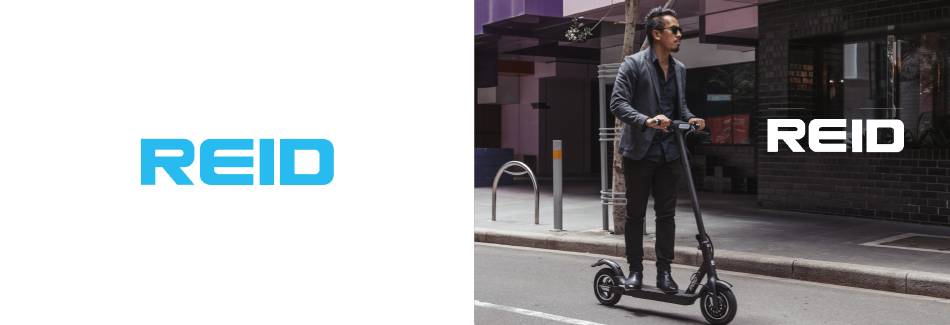

- Page 1 E4 PLUS E 4 P L U S www.reidbikes.com OWNERS MANUAL...

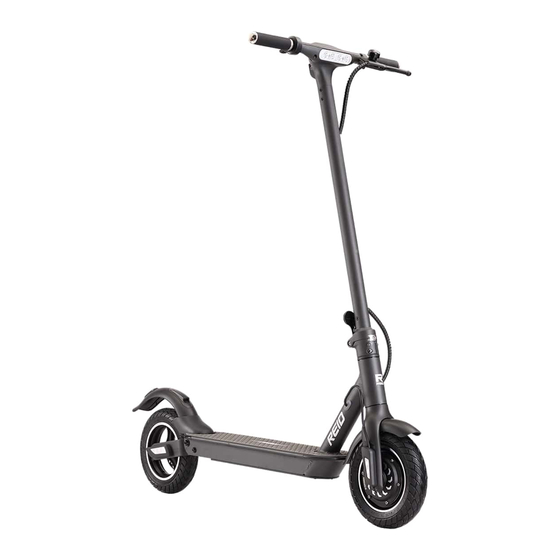

- Page 2 This manual applies to your Reid E4 Plus electric scooter. Please read the manual carefully to ensure that: You quickly grasp the basic operating procedures and riding methods of your Reid E4 Plus electric scooter. You familiarise yourself with safe driving rules for a safe and enjoyable scooter experience.
- Page 3 About the manual Contents...
- Page 4 Brake Lever Grips...
- Page 5 Install the brakes to the correct position with the Hex wrench (M5 in the tool bag) Install the handlebars, pay attention to the installation direction. Ensure the handlebars are tightened well. Long press the power switch button to turn on the eScooter, also turning on the front light, ambient deck lighting, tail light and rear brake light.
- Page 6 Install the handlebar to the steerer tube. Use the hex wrench M3 in the tool bag to lock the screws M3 x4 on both sides of the steerer tube as the below picture refereed. After the installation is completed, switch on and off to confirm if the scooter is operable.
- Page 7 Open the rubber cap. Insert the charging plug. After charging is completed, close the rubber cap to prevent water penetration. Turn on the power and check the power indicatior. 2. One foot stands on the deck, the other foot kicks backward.
- Page 8 Riding safely 3. Once you have the electric scooter moving above 5km, 4. Releasing the throttle will slow you down gradually, put both feet on the deck and push the throttle to start with an automatic energy recover system coming in. the electric. For hard braking pull the lever on the left side.
- Page 9 Do not press the throttle whilst Avoid barriers when driving. walking with the eSscooter Put the safety-lock (the red part of the image) up, meanwhile holding the steer tube. The open up folding spanner (blue part of the image), aim it at the bell and the fender hook, then buckle the belt with the back-fender.
- Page 10 Warning Reminder Forbidden to drive on the road or Forbidden to rotate the handle strongly Forbidden to go up or down stairs or Forbidden to drive without your hands in crowded residential areas. while driving with high speed. holding the handlebar to jump over barriers when driving.
- Page 11 If there is a mark on the body of your Reid eScooter, wipe it with a small amount of water with a soft cloth. If it is difficult to clean, you can use a toothbrush to brush it repeatedly then use a damp cloth to clean in. If the body has plastic scratches, you can use sandpaper You need to understand that if you decide to take your Reid eScooter on a public road or other public place, you may be exposed to or other abrasive materials for polishing.
- Page 12 If you feel the steerer tube is loose and shakes when you are riding, please use the M5 hex wrench to reinforce the screw as the below picture shows. Alternatively, take your electric scooter to the nearest service centre for adjustment. Alternatively, take your electric scooter to the nearest service centre for adjustment.
- Page 14 If you have any questions about riding, maintenance, security or anything else Reid or Reid eScooter related, then please contact us by visiting: www.reidbikes.com/contact/...
- Page 15 Should the problem not be fixed, please reach out to the retailer you purchased from or Reid at www.reidbikes.com/contactus/ and we’ll do our best to help. For all warranty information on our eScooters,...
Need help?
Do you have a question about the E4 PLUS and is the answer not in the manual?
Questions and answers
My Son has been using his Scoot (Reid E4Plus) for a couple of months. Now it won't charge at all. The light on the charger is green, but when you plug the charger in and turn it on, it's red.
The Reid E4 Plus scooter may not be charging if the charger light is green but the scooter light is red because the green light on the charger indicates no current is flowing—either the scooter is fully charged or not connected properly. A red light on the scooter could signal a fault or issue. Check that the charger is correctly connected to both the wall and the scooter. Also, ensure you are using the original charger and that all connections are secure and dry, as the scooter is only IPX4 rated.
