Bush Baby BBWiFiSmoke User Manual

Smoke detector with wi-fi hidden camera
Hide thumbs

Advertisement

Quick Links

Download this manual
Bush Baby Smoke Detector
with Wi-Fi Hidden Camera
SKU: BBWiFiSmoke
1
Version 1.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the BBWiFiSmoke and is the answer not in the manual?

Questions and answers

Related Manuals for Bush Baby BBWiFiSmoke

Summary of Contents for Bush Baby BBWiFiSmoke

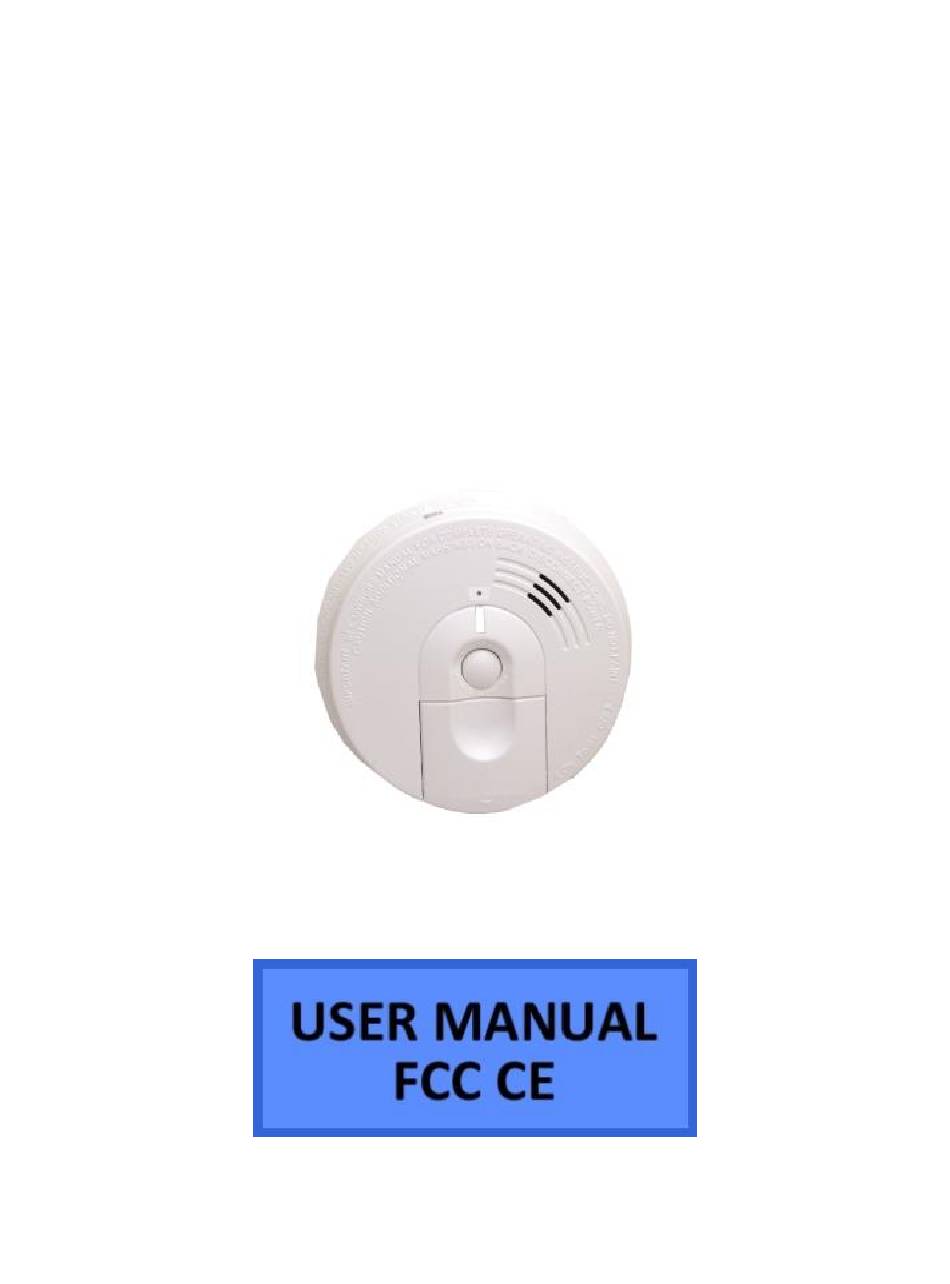

  • Page 1 Bush Baby Smoke Detector with Wi-Fi Hidden Camera SKU: BBWiFiSmoke Version 1.0...
  • Page 2 THANK YOU FOR PURCHASING THE BBWIFISMOKE Please read this manual before operating the BBWiFiSmoke and keep it handy. Your purchase should include: 1 x BBWiFiSmoke 1 x Manual Version 1.0...
  • Page 3 GET FAMILIAR WITH YOUR BBWIFISMOKE Version 1.0...
  • Page 4 Version 1.0...
  • Page 5 OPERATING THE BBWIFISMOKE BEFORE YOU START 1. First you must download the TinyCam app from the Google Play Store or the iPhone App Store. o Android: https://play.google.com/store/a pps/details?id=com.rtp2p.tinyca o iPhone: https://apps.apple.com/us/app/ tinycam/id1444285114 2. Please note that this is not a functioning smoke detector.
  • Page 6 network. Otherwise, the device will not connect to the new network. IMPORTANT: This unit is built to be hardwired in to your electrical system. You will need to contact a professional electrician to install this device correctly. We are not responsible for any damages or incorrect installation.
  • Page 7 warranty will be voided. You may be charged fees or denied a return should this happen. CONNECTING TO YOUR DEVICE DIRECTLY & ADDING IT TO WIFI In order to view your device remotely, you must complete the following two-part sequence of steps. 1.
  • Page 8 3. After connecting to the device’s Wi-Fi signal, it should display as ‘Connected’ or the ‘Current Network’ (see below picture) o Some devices may produce a warning that the network has no Version 1.0...
  • Page 9 internet access. If you see this, choose to connect to the network anyway. o For iOS devices, you must wait until the Wi-Fi signal appears next to your Phone Carrier Name at the top of your phone screen. 4. Now that we are connected to the unit’s Wi-Fi signal, go ahead and open the TinyCam App on your phone.
  • Page 10 5. When you open the app, it will automatically detect that you are connected to the unit’s Wi-Fi signal and ask if you would like to add the device to the TinyCam App. Press “OK”. 6. After pressing “OK”, this will add the device to the TinyCam App and take you to the home screen.
  • Page 11 o We still need to add the camera to a Wi-Fi network where it is staying in order to livestream it! 7. You should now see your device listed on the home screen. Let’s continue and add the camera to a nearby Wi-Fi network.
  • Page 12 ‘Config’ or ‘Setting’ selections. For now, we want to focus on Wi-Fi Config. Go ahead and select ‘Wi-Fi Config’ and a new menu should open. 9. After selecting Wi-Fi Config, we are taken to a page where you can choose a network for the unit to connect to, and Version 1.0...
  • Page 13 then type in the password for that wi-fi network. Press ‘Confirm’ when done to pair the unit with the router. You should see something that says “Set Success”. 10. Close the TinyCam App and proceed to step 11. Version 1.0...
  • Page 14 11. If the unit pairs with your router, it will stop broadcasting its own Wi-Fi signal, and your phone should connect back to the normal network for the area. o To verify if the camera added successfully to your router, turn off your phones Wi-Fi, and then open the ‘TinyCam’...
  • Page 15 o NOTE: The first time you access the livestream, the unit will request that you change the password. DO NOT FORGET THIS PASSWORD! o The default password is 888888. HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM 1. Open the TinyCam App. 2.
  • Page 16 3. After opening the livestream, in the top center of the screen, you should see three different options. a. 1080P – Stream in 1920x1080P b. 720P – Stream in 1280x720 c. 640P – Stream in 1152x640 HOW TO SET UP MOTION DETECTION RECORDING 1.
  • Page 17 3. Navigate to ‘Alarm Config’. 4. Turn Motion detection to any option besides ‘Close’. 5. Hit the back button on your phone so you can see all the other Config/Setting options again. 6. Choose ‘Micro SD Card Setting’. Version 1.0...
  • Page 18 7. Tap the ‘Alarm recording’ box and ensure that it is checked. 8. Your device is now set up for motion detection recording! a. By turning the ‘Alarms’ motion detection levels on, the unit sends an ‘Alarm’ once motion is detected. This alarm triggers the unit to begin recording.
  • Page 19 Micro SD Card Setting – A Further Look Version 1.0...
  • Page 20 a) Micro SD Card Capacity – This displays what size MicroSD card you have inside the unit, and the total space left. a. The number on the left is the total space left. b. The number on the right is what size MicroSD card you have inside the unit.
  • Page 21 e) Full Time Recording – If this box is checked, the unit will record 24/7. f) Recording Length – These are how long the unit’s videos will last. a. If you have full time recording enabled, and set the ‘recording length’...
  • Page 22 i) Time-Lapse Video – Enable this to have your unit take elongated video recordings (over 45 minutes) j) Time-Lapse Video Recording – This is how long of an elongated video your unit will record. OTHER CONFIG OPTIONS Version 1.0...
  • Page 23 a) Time Set – This allows you to set the time/date for the unit. b) Power Frequency – If you are located in the USA, set this to 60Hz (also known as NTSC). Almost all other countries use 50Hz (also known as PAL). c) Initialization –...
  • Page 24 server. Technical Support cannot help you find or fill in this information! You will need to be knowledgeable about servers or contact your server administrator. e) Email Set – These settings will allow the unit to email you notifications regarding motion.
  • Page 25 COPYING AND DELETING YOUR FILES The video and image files created on your device are just like any other file on your computer, and can be managed in the exact same manner.  To save a file, select the file with your mouse, right click your mouse on the file’s name, then choose “Copy”...

  • Page 26: Microsd Card

     If you are using MAC OS X, you must empty the trashcan after you delete a file. If this is not done, the SD card will fill with hidden files, and the device will no longer record new files. REMOTELY VIEWING RECORDINGS ON THE MICROSD CARD 1.

  • Page 27: Troubleshooting

    3. The new screen that opens shows all current recordings on the MicroSD card for the current day. The top right corner (clock icon) allows you to choose which date you wish to view recordings from. TROUBLESHOOTING THE DEVICE WON’T TURN ON ...

  • Page 28: Other Problems

    device’s settings, scrolling to the bottom, and selecting “Reset Device”.  You do not have to delete the app in order to reset the device. HOW TO FACTORY RESET THE DEVICE  A factory reset will restore all settings to their original factory settings.

  • Page 29: Specifications

    SPECIFICATIONS Stream Resolution 1080P Recording Resolution 720P Video Format .AVI Viewing Angle 90° Internal Storage 128GB Capacity Video Consumption 1 Min = 15MB Playback Software Loop Recording Operating Systems Android, iOS Version 1.0...
  • Page 30 Version 1.0...
  • Page 31 Version 1.0...
  • Page 32 QUALITY CONTROL CHECKLIST ☐ Instruction Manual ☐ BBWiFiSmoke QC Technician: ______________________________ Date: ___________________________________ Version 1.0...
