Bush Baby Night Eye
Smoke Detector with
Wi-Fi Hidden Camera
SKU: BBNESmoke
1
Version 1.0

Advertisement

loading

Related Manuals for Bush Baby Night Eye

Summary of Contents for Bush Baby Night Eye

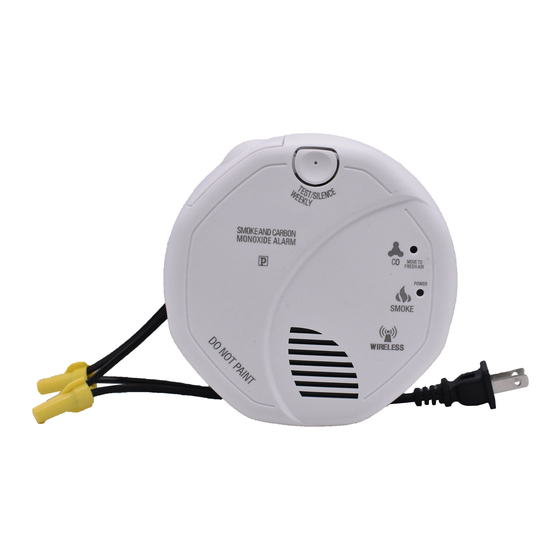

  • Page 1 Bush Baby Night Eye Smoke Detector with Wi-Fi Hidden Camera SKU: BBNESmoke Version 1.0...
  • Page 2 THANK YOU FOR PURCHASING THE BBNESMOKE Please read this manual before operating the BBNESmoke and keep it handy. Your purchase should include: 1 x BBNESmoke 1 x Manual (this) 1 x 128GB MicroSD Card 1 x MicroSD Card Reader Version 1.0...
  • Page 3 GET FAMILIAR WITH YOUR BBNESMOKE Version 1.0...
  • Page 4 OPERATING THE BBNESMOKE BEFORE YOU START 1. First you must download the TinyCam app from the Google Play Store or the iPhone App Store. o Android: https://play.google.com/store/a pps/details?id=com.rtp2p.tinyca o iPhone: https://apps.apple.com/us/app/ tinycam/id1444285114 2. If you ever need to move your device from one network connection to a different one, you will need to reset the device before moving to the new...
  • Page 5 3. This device is meant to be hardwired into your electrical system. We suggest hiring a professional to hardwire it. We only provide technical support for the camera itself, not the installation of the device. Note: If you are not located in the US, or if you intend to use this product anywhere other than the US, you will need to purchase a converter in order to use the AC wall plug in and avoid...
  • Page 6 CONNECTING TO YOUR DEVICE DIRECTLY & ADDING IT TO WIFI In order to view your device remotely, you must complete the following two-part sequence of steps. 1. Hardwire the device into your electrical system or use the test plug to power your device.
  • Page 7 3. After connecting to the device’s Wi-Fi signal, it should display as ‘Connected’ Version 1.0...
  • Page 8 or the ‘Current Network’ (see picture on page 8) o Some devices may produce a warning that the network has no internet access. If you see this, choose to connect to the network anyway. o For iOS devices, you must wait until the Wi-Fi signal appears next to your Phone Carrier Name at the top of your phone screen.
  • Page 9 4. Now that we are connected to the unit’s Wi-Fi signal, go ahead and open the TinyCam App on your phone. 5. When you open the app, it will automatically detect that you are connected to the unit’s Wi-Fi signal and ask if you would like to add the device to the TinyCam App.
  • Page 10 6. After pressing “OK”, this will add the device to the TinyCam App and take you to the home screen. o We still need to add the camera to a Wi-Fi network where it is staying in order to livestream it! 7.
  • Page 11 8. After tapping the wrench, a new menu will appear with a bunch of different ‘Config’ or ‘Setting’ selections. For now, we want to focus on Wi-Fi Config. Go ahead and select ‘Wi-Fi Config’ and a new menu should open. Version 1.0...
  • Page 12 9. After selecting Wi-Fi Config, we are taken to a page where you can choose a network for the unit to connect to, and then type in the password for that wi-fi network. Press ‘Confirm’ when done to pair the unit with the router. You should see something that says “Set Success”.
  • Page 13 10. Close the TinyCam App and proceed to step 11. 11. If the unit pairs with your router, it will stop broadcasting its own Wi-Fi signal, and your phone should connect back to the normal network for the area. o To verify if the camera added successfully to your router, turn off your phones Wi-Fi, and then open the ‘TinyCam’...
  • Page 14 12. Your device is now connected to Wi-Fi and can be remotely viewed/managed! o NOTE: The first time you access the livestream, the unit will request that you change the password. DO NOT FORGET THIS PASSWORD! o The default password is 888888. HOW TO ADJUST THE VIDEO QUALITY OF THE STREAM 1.
  • Page 15 3. After opening the livestream, in the top center of the screen, you should see three different options. a. 1080P – Stream in 1920x1080P b. 720P – Stream in 1280x720 c. 640P – Stream in 1152x640 HOW TO SET UP MOTION DETECTION RECORDING 1.
  • Page 16 3. Navigate to ‘Alarm Config’. 4. Turn Motion detection to any option besides ‘Close’. 5. Hit the back button on your phone so you can see all the other Config/Setting options again. 6. Choose ‘Micro SD Card Setting’. Version 1.0...
  • Page 17 7. Tap the ‘Alarm recording’ box and ensure that it is checked. 8. Your device is now set up for motion detection recording! a. By turning the ‘Alarms’ motion detection levels on, the unit sends an ‘Alarm’ once motion is detected. This alarm triggers the unit to begin recording.
  • Page 18 Micro SD Card Setting – A Further Look Version 1.0...
  • Page 19 a) Micro SD Card Capacity – This displays what size MicroSD card you have inside the unit, and the total space left. Please note, the MicroSD card in this device is purely internal and not accessible by the end user. a.
  • Page 20 e) Full Time Recording – If this box is checked, the unit will record 24/7. f) Recording Length – These are how long the unit’s videos will last. a. If you have full time recording enabled, and set the ‘recording length’...
  • Page 21 i) Time-Lapse Video – Enable this to have your unit take elongated video recordings (over 45 minutes) j) Time-Lapse Video Recording – This is how long of an elongated video your unit will record. OTHER CONFIG OPTIONS Version 1.0...
  • Page 22 a) Time Set – This allows you to set the time/date for the unit. b) Power Frequency – If you are located in the USA, set this to 60Hz (also known as NTSC). Almost all other countries use 50Hz (also known as PAL). c) Initialization –...
  • Page 23 server. Technical Support cannot help you find or fill in this information! You will need to be knowledgeable about servers or contact your server administrator. e) Email Set – These settings will allow the unit to email you notifications regarding motion.
  • Page 24 4. Locate “Removable Disk” inside the (My) Computer folder. a. On most Windows PC, AutoPlay will detect the removable storage and ask how you would like to proceed. Choose ‘Open folder to view files’ b. On Mac devices, the removable storage will appear under ‘Removable Storage’...
  • Page 25 service (like Google Drive) or your email to send videos from your app to your computer.  To save a file, select the file with your mouse, right click your mouse on the file’s name, then choose “Copy” from the menu. Next, go to the location you want to save the file to.

  • Page 26: Microsd Card

    fill with hidden files, and the device will no longer record new files. REMOTELY VIEWING RECORDINGS ON THE MICROSD CARD 1. Open the TinyCam App. 2. Press the folder icon on the bottom left of your device listing. 3. The new screen that opens shows all current recordings on your device’s storage for the current day.

  • Page 27: Troubleshooting

    choose which date you wish to view recordings from. TROUBLESHOOTING THE DEVICE WON’T TURN ON  Make sure the test plug is plugged all the way into the wall outlet.  Make sure the device has been hardwired correctly. We suggest a professional installation.

  • Page 28: Other Problems

    OTHER PROBLEMS  Contact our Technical Support team at 770-694-6921 or support@minigadgets.com SPECIFICATIONS Stream Resolution 1080P Recording Resolution 720P Video Format H.264 Viewing Angle 110° Internal Storage 128GB Video Consumption 1 Min = 50MB Playback Software Loop Recording Operating Systems Android, iOS Version 1.0...
  • Page 29 Version 1.0...
  • Page 30 Version 1.0...
  • Page 31 Version 1.0...
  • Page 32 QUALITY CONTROL CHECKLIST ☐ Instruction Manual ☐ BBNESmoke ☐ ____GB MicroSD Card ☐ MicroSD Card Reader QC Technician: ______________________________ Date: ___________________________________ Version 1.0...
