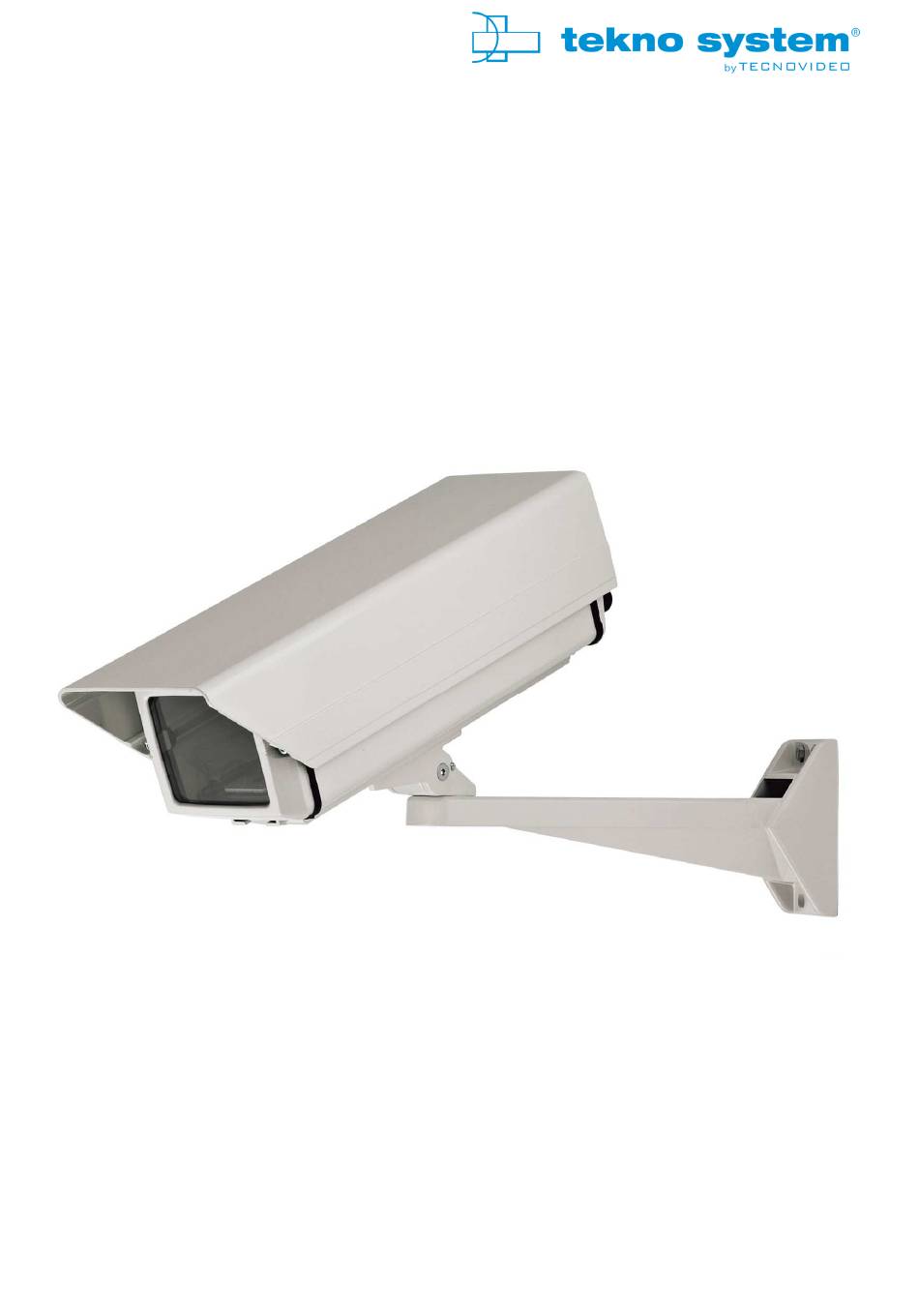

- Page 1 Linea 6 Series Aluminium Camera Housings Installation manual Issue 20200115...
- Page 2 TABLE OF CONTENTS Page DESCRIPTION GENERAL & MECHANICAL ELECTRICAL PRELIMINARY REMARKS INSTALLING THE HOUSING (KIT6A and KIT6AC) INSTALLING THE HOUSING (KIT6P) INSTALLING THE HOUSING (KIT6C) DIMENSIONS...
- Page 3 DESCRIPTION The LINEA 6 series is made of extruded and die-cast aluminium and is available in two lengths. This series allows to accommodate a vast range CCTV cameras. The exclusive slide and hang system permits easy and safe maintenance operations even in the must critical positions. Its high quality materials guarantee exceptional reliability and durability.
- Page 4 INSTALLING THE HOUSING (KIT6A and KIT6AC) 1. Mount the bracket. Fix the bracket (X) to the mounting surface. Loosen the screw (A) and unscrew the two screws (B) with a 4mm Allen key. For an easier access to the screws (B) push the sunshield forward.
- Page 5 INSTALLING THE HOUSING (KIT6P) 1. Mount the bracket. Feed the cables through the mounting bracket (X). In case it is needed, it is possible to remove one of the slot covers (Y) on the mounting bracket to provide an additional cable entry. Fix the bracket to the mounting surface.
- Page 6 INSTALLING THE HOUSING (KIT6C) 1. Mount the bracket. Fix the bracket (X) on the ceiling. 2. Open the housing. a. Unscrew the two screws (B) with a 4mm Allen key. b. Slide back the rear part. c. Disconnect Earth cable. d.
- Page 7 DIMENSIONS KIT6A/300 KIT6P/300 KIT6C/300 KIT6AC/300 DIMENSIONS IN BRACKETS REFER TO “LINEA 6 SERIES/350” MAX INTERNAL USABLE AREA Max internal Max usable Model dimension [mm] internal diameter [mm] 105x86 264 (314) KIT6A/300 KIT6P/300 105x86 264 (324) KIT6C/300 105x86 264 (314) 105x86 264 (314) KIT6AC/300 MOUNTING PATTERN...
- Page 8 TECNOVIDEO S.r.l. Via A. De Gasperi, 3 36030 Villaverla (VI) ITALY Tel.
