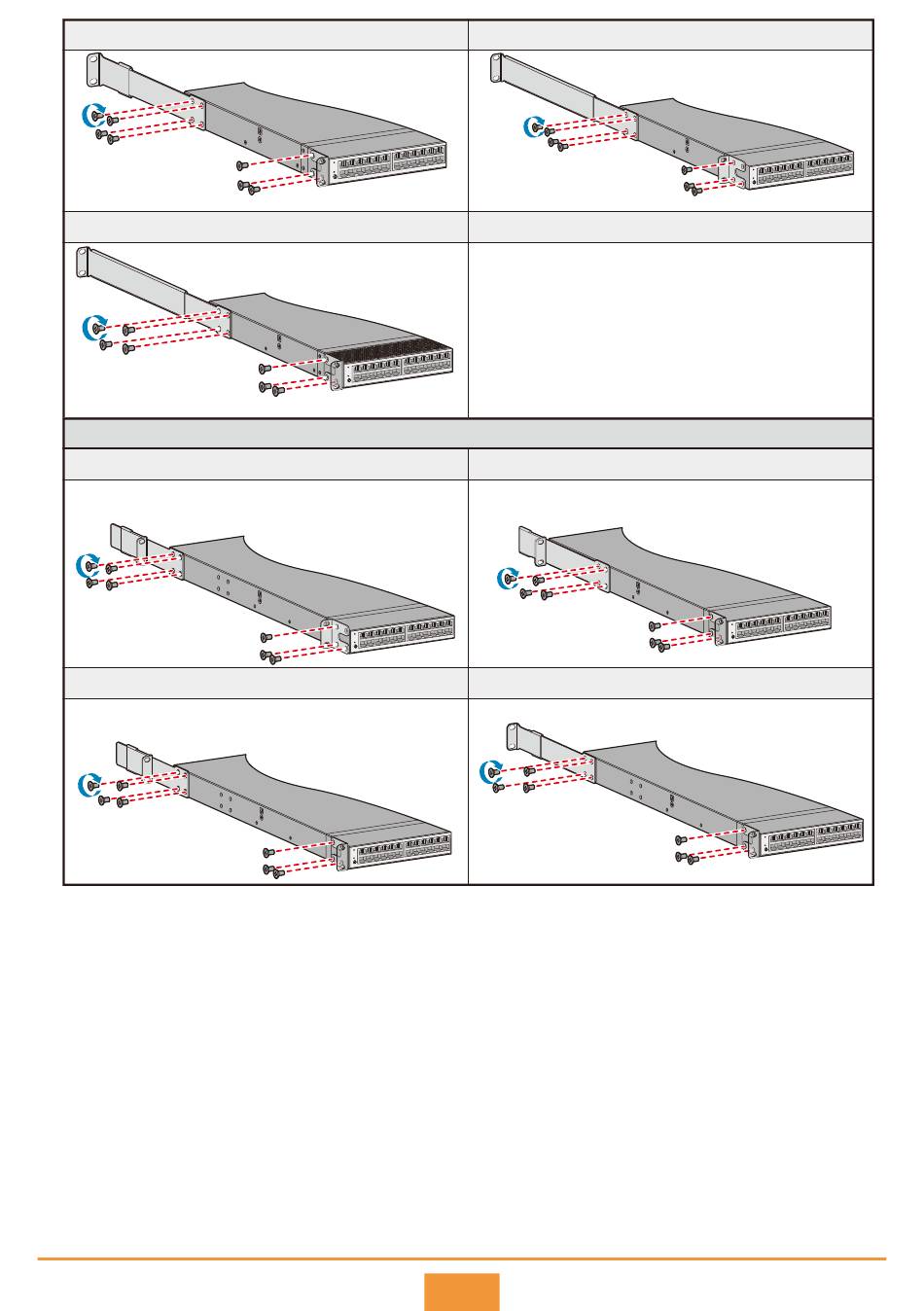

539 mm-637 mm
Mounting bracket A
+ Mounting bracket C
+ Guide rail E
697 mm-835 mm
Mounting bracket A
+ Mounting bracket C
+ Guide rail F
493 mm-548 mm
Note: If the cabinet is 800 mm deep, mounting bracket C will
touch the cabinet door. Do not close the door at this side.
Mounting bracket A
+ Mounting bracket C
+ Guide rail E
552 mm-680 mm
Note: If the cabinet is 800 mm deep, mounting bracket C will
touch the cabinet door. Do not close the door at this side.
Mounting bracket A
+ Mounting bracket C
+ Guide rail E
Step 3 Install eight floating nuts on the front and rear mounting rails, two on each mounting rail.
Step 4 Connect the ground cable to the chassis ground point and place the other end on top of the chassis. The
ground point of the CE6850HI, CE6855-48T6Q-HI, CE6856-48T6Q-HI, CE6850U-HI and CE6875EI is
located at the power supply side.
Step 5 Secure guide rails on the front mounting rails with M6 screws.
Step 6 Hold bottom of the chassis with both hands, align the mounting brackets with the guide rails, and slowly
slide the chassis into the cabinet.
Step 7 Secure the chassis onto the cabinet with M6 screws.
Step 8 Connect the ground cable to the ground point on the cabinet.
Mounting bracket and guide rail bundles for the CE7800&6800 (600 mm deep)
638 mm-696 mm
Mounting bracket A
+ Mounting bracket C
+ Guide rail F
549 mm-551 mm
Note: Install mounting bracket C in mounting holes at middle
of the chassis.
Mounting bracket A
+ Mounting bracket C
+ Guide rail E
681 mm-815 mm
Mounting bracket A
+ Mounting bracket C
+ Guide rail E
