INSTALLATION, OPERATION AND MAINTENANCE INSTRUCTIONS
Patent #9,898,017
NOTES TO THE INSTALLER:
1. Please leave this documentation with the owner of the fixture when finished.
2. Please read this entire booklet before beginning the installation.
3. Check your installation for compliance with plumbing and other applicable codes.
Acorn Controls warrants that its products are free from defects in material or workmanship under normal use and
service for a period of one year from date of shipment. Acorn's liability under this warranty shall be discharged solely
by replacement of repair of defective material, provided Acorn is notified in writing within one year from date of
shipment, F.O.B. Industry, California.
This warranty does not cover installation or labor charges and does not apply to materials, which have been
damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of the
defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Acorn under this warranty.
Acorn shall not be liable under any circumstances for incidental, consequential or direct charges caused by defects in
materials, or any delay in the repair or replacement thereof. This warranty is in lieu of all other warranties expressed
or implied. Product maintenance instructions are issued with each unit and disregard or non-compliance with these
instructions will constitute an abnormal use condition and void the warranty.
Acorn Controls
Division of Acorn Engineering Company
Manual #7802-127-001

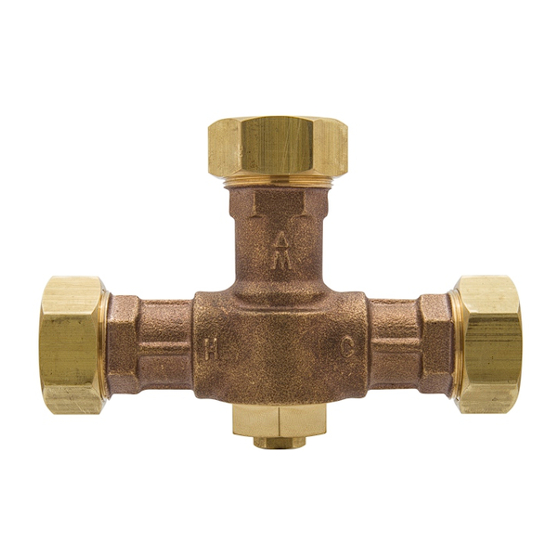

ST7017 (OMEGA) THERMOSTATIC MIXING VALVE
Model ST7017 (OMEGA)
FOR TECHNICAL ASSISTANCE
1.800.743.8259
fieldservice@acorneng.com
LIMITED WARRANTY
UNITED STATES AND CANADA
ACORN ENGINEERING COMPANY
P.O. BOX 3527
CITY OF INDUSTRY, CA 91744
UNITED STATES OF AMERICA
WWW.ACORNENG.COM
, A member of Morris Group International
®
Federal
Public Law
111-380
(No Lead)
™
Date: 07/20/2020
