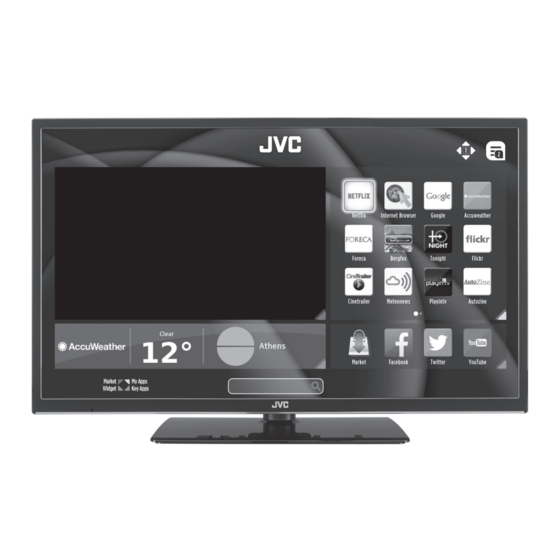

JVC LT-32K680 Quick Start Manual

32" led smart hd tv
Hide thumbs

Advertisement

Quick Links

Quick Start Guide
32" LED Smart HD TV
LT-32K680(A)
Thank you
for purchasing your new JVC TV.
Your new TV incorporates the latest technology to enhance
your viewing experience. We would suggest that you allow
about 20 mins for initial setup.
Please follow this guide for a successful first time installation.
The latest eco-friendly power-saving technology will
switch off the TV if it is left on and idle for 4 hours. Please
refer to "Auto Standby" under the "Time Settings" section
of the instruction manual for more detail.
1
Unpacking
Remove all packaging from the unit. Retain the packaging. If you dispose of it please do so according to any local regulations.
TV
Remote Control/
AAA Batteries x2
TV Stand
Screws x 6
Please inspect your TV for damage after unpacking. If you do notice any damage please consult your dealer.
2
Operating Your Remote Control
1. Remove the screw. Slide open the battery compartment on the back of
the remote control.
2. Insert two AAA size batteries. Make sure to match the (+) and ( - )
ends of the batteries with the (+) and ( - ) ends indicated in the battery
compartment.
3. Slide the battery compartment cover back into place. Make sure it clicks
into place. Replace the screw.
JVC 32' LED Smart HD TV LT-32K680(A) Quick Start Guide.indd 1
Instruction Manual
Quick Start Guide
3
Installing the TV Stand
Fitting the Stand Neck and Base Together
1. Fit the neck onto the base.
2. Using 2 of the supplied screws, screw the neck to the base.
Fitting the Stand to the TV
3. Ensure the TV is switched off and not connected to the mains power supply.
4. Lay the TV down on a flat surface ideally on the edge of a table so the base of the TV slightly
overhangs the edge of the table, with the back side facing up. Please make sure a soft cushioned
material (such as a dry bath towel or thick piece of foam) is placed beneath the screen.
5. Slide the stand under the lip, the neck will fit snugly over the screw holes.
Then screw the stand to the TV using the 4 screws supplied.
LAN
SPDIF
VGA
Optic.OUT
SCART
Protective
Cushioned
Bag
material
TV stand (supplied)
• Keep the protective bag on your TV until you have attached the stand and positioned the TV.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be sure that no hard or sharp object,
or anything that could scratch or damage the LCD display, comes into contact with it. DO NOT exert pressure on the front of the TV at any time because
the screen could crack.
4
Connecting the Aerial and Turning on the TV
1. Connect one end of the RF coaxial cable to the aerial socket on the wall
and the other end of the cable to the ANT socket on the back of your TV.
2. Plug the TV into a mains socket and switch on at the mains.
3. In standby mode, press the
button on the remote control to turn the
TV on. The LED indicator will flash for a few seconds then the TV will
switch on.
LAN
LNB
13V dc/18V dc
SPDIF
VGA
Optic.OUT
SCART
• Do not connect the TV to the mains supply until you have completed all the connections.
• Always disconnect the TV from the mains socket when not in use for a long period of time.
• The
button on the remote control is only used for switching the TV into standby, it does not disconnect the TV from the mains power.
To completely disconnect the mains power, please remove the mains plug from the mains socket.
Slide under
the lip
Table
Optional
If you want to connect to the internet via a wired connection
then connect your ethernet cable to the LAN socket.
RF coaxial cable
LAN
LNB
with 'F Type' connector
(not included)
13V dc/18V dc
RF coaxial cable
VGA
SPDIF
(not included)
Optic.OUT
SCART
04/05/2018 11:32
