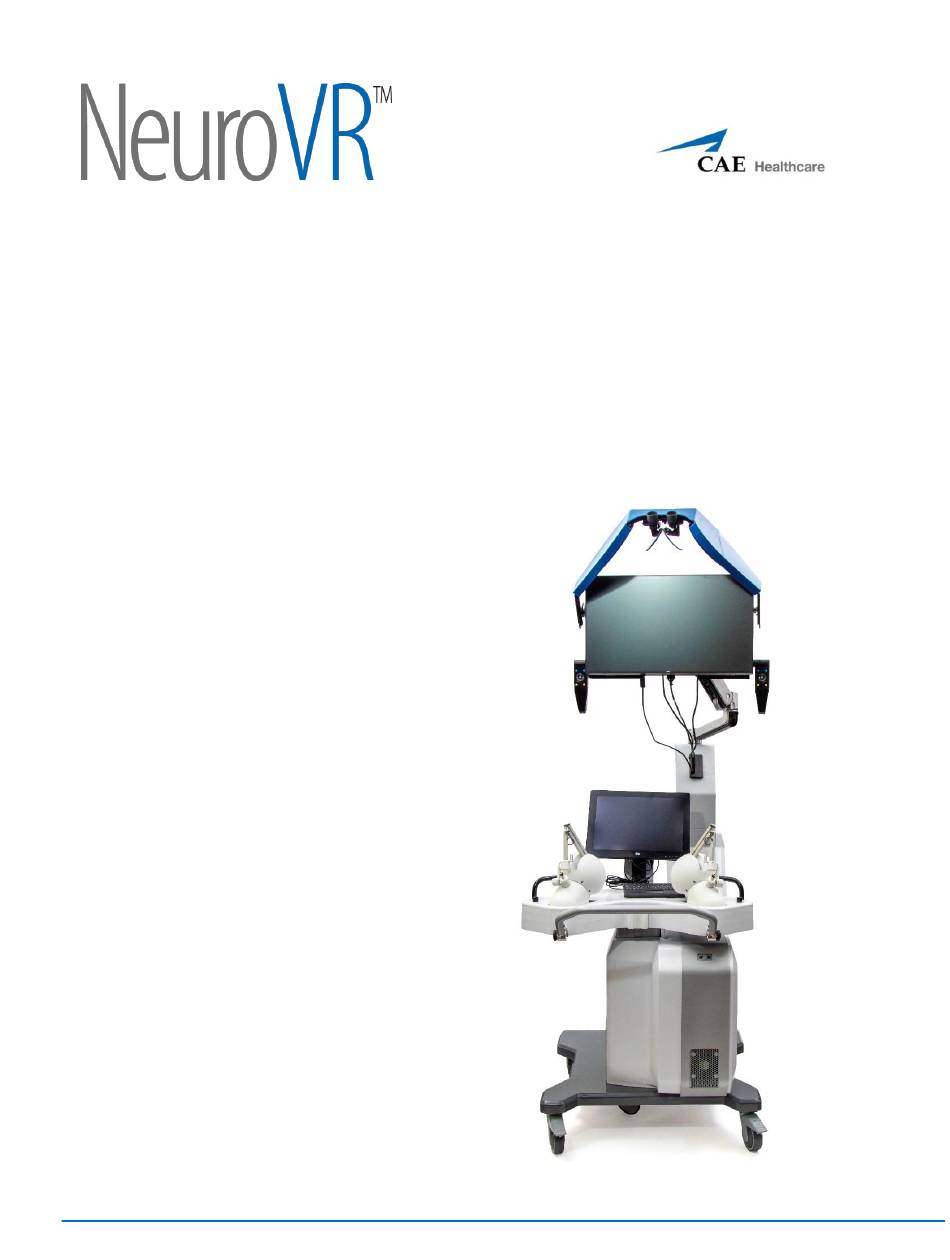

- Page 1 Setup Guide Setup Guide 905K540252v3...
- Page 2 Setup Guide...
- Page 3 Setup Guide This guide will help you unpack and setup the NeuroVR simulator. Removing Items from the Crate ▪ Remove all 6 screws from the front panel NeuroVR shipping crate 905K540252v3...
- Page 4 Setup Guide ▪ Remove all the foam from around the NeuroVR ▪ Unlock the wheels ▪ Using the door as a ramp, wheel out the NeuroVR base Use the front panel as the ramp...
- Page 5 Setup Guide ▪ Remove the Stereoscope box, arm, accessory box and head from the top of the crate Stereoscope box opened Remove styrofoam to access ▪ Unwrap all parts and accessories All included accessories 905K540252v3...
- Page 6 Setup Guide Attaching the Neck Assembly ▪ Pull all cables out ▪ Insert the neck into the NeuroVR base Insert the neck...
- Page 7 Setup Guide ▪ Tighten the 6 wing nuts to secure the neck Secure the wing nuts 905K540252v3...
- Page 8 Setup Guide ▪ Add the back panel of the neck with the 4 screws provided Back panel location Secure the screws ▪ Feed the wires through the grommet hole...
- Page 9 Attach the arm to the monitor using the 4 screws Secure monitor to arm ▪ Connect monitor arm to the NeuroVR base with 3/16th Allen wrench (be sure to add the bushing to avoid scratching the unit) Place bushing into arm...
- Page 10 Setup Guide ▪ Connect the 4 cables from the NeuroVR base to the large monitor Connect the cables Completing the Final Setup ▪ Remove foam from the 2 haptic units Remove the foam cover...
- Page 11 Setup Guide ▪ Plug in the keyboard Plug in keyboard ▪ Adjust the arm rest (see Adjustable Armrest section of the user guide, pg 5) ▪ Tilt the small touchscreen monitor forward Tilt the touchscreen monitor 905K540252v3...
- Page 12 Setup Guide ▪ Insert tray holders in the NeuroVR and add trays Insert tray holders Add trays...
- Page 13 Setup Guide ▪ Remove pedals from the foot pedal holder Place foot pedals ▪ Take power cord out of the base and plug it in at the back Cord stored in base 905K540252v3...
-
Page 14: Troubleshooting
Customer Service – Asia Pacific Monday - Friday from 8:00 a.m. to 5:00 p.m. CET Phone +49 (0) 6131 4950354 Email: ap.service@cae.com Note: To avoid damaging product or voiding warranty, do not attempt to repair NeuroVR without customer service assistance. - Page 15 To access to the computer, remove the computer cover by loosening the 4 screws from the grey metal back panel of the NeuroVR base. Note: To avoid damaging product or voiding warranty, do not attempt to repair NeuroVR without customer service assistance.
- Page 16 Accessing the Control Box The “control box” is the assembly of physical connections which enable the communications between different components of the simulator and allow it to function correctly. Under the guidance of NeuroVR Support, these connections may be accessed and verified.
- Page 17 Setup Guide To verify that your cable is connected and you have quick access to the circuit board: 1. Tilt the small monitor up. 2. Remove the grommet cover. 3. Verify all cables are connected to the circuit board. Verify all cables are connected 905K540252v3...
