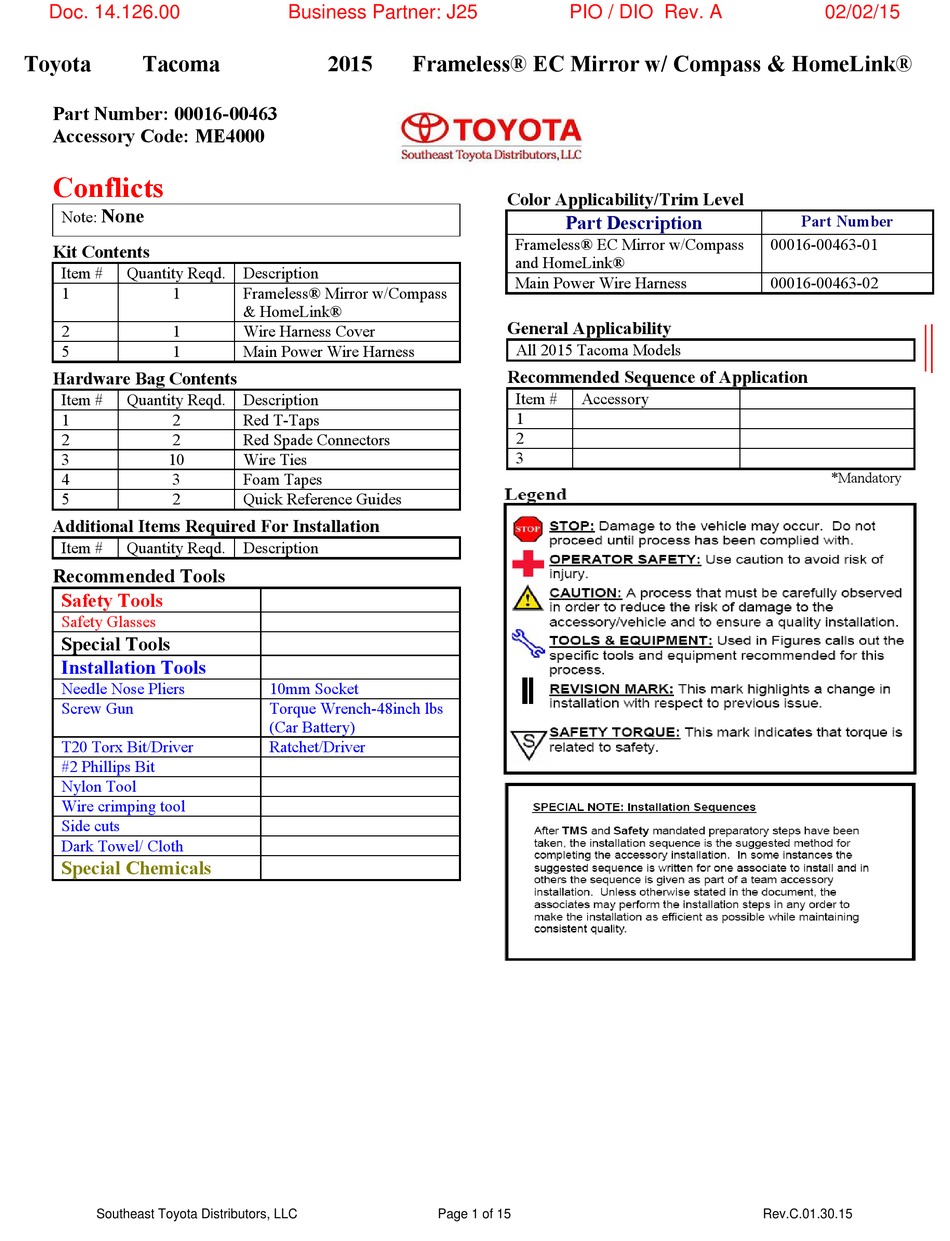

Doc. 14.126.00
Toyota
Tacoma
Part Number: 00016-00463
Accessory Code: ME4000
Conflicts
None
Note:
Kit Contents
Item #
Quantity Reqd.
1
1
2
1
5
1
Hardware Bag Contents
Item #
Quantity Reqd.
1
2
2
2
3
10
4
3
5
2
Additional Items Required For Installation
Item #
Quantity Reqd.
Recommended Tools
Safety Tools
Safety Glasses
Special Tools
Installation Tools
Needle Nose Pliers
Screw Gun
T20 Torx Bit/Driver
#2 Phillips Bit
Nylon Tool
Wire crimping tool
Side cuts
Dark Towel/ Cloth
Special Chemicals
Southeast Toyota Distributors, LLC
Business Partner: J25
2015
Frameless® EC Mirror w/ Compass & HomeLink®
Description
Frameless® Mirror w/Compass
& HomeLink®
Wire Harness Cover
Main Power Wire Harness
Description
Red T-Taps
Red Spade Connectors
Wire Ties
Foam Tapes
Quick Reference Guides
Description
10mm Socket
Torque Wrench-48inch lbs
(Car Battery)
Ratchet/Driver
PIO / DIO Rev. A
Color Applicability/Trim Level
Part Description
Frameless® EC Mirror w/Compass
and HomeLink®
Main Power Wire Harness
General Applicability
All 2015 Tacoma Models
Recommended Sequence of Application
Item #
Accessory
1
2
3
Page 1 of 15
02/02/15
Part Number
00016-00463-01
00016-00463-02
*Mandatory
Rev.C.01.30.15
Advertisement
Related Manuals for Toyota Frameless
Summary of Contents for Toyota Frameless
- Page 1 Doc. 14.126.00 Business Partner: J25 PIO / DIO Rev. A 02/02/15 Toyota Tacoma 2015 Frameless® EC Mirror w/ Compass & HomeLink® Part Number: 00016-00463 Accessory Code: ME4000 Conflicts Color Applicability/Trim Level None Note: Part Description Part Number Frameless® EC Mirror w/Compass...
- Page 2 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Care must be taken when installing this accessory to ensure damage does not occur to the vehicle. The installation of this accessory should follow approved guidelines to ensure a quality installation.
- Page 3 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 2. Remove the screw. Disengage the 2 clips and 3 claws. Disconnect the connectors and remove the roof console box assembly. See figure 2. Figure 2 3. Using a T20 "TORX" socket wrench, remove the screw and inner rear view mirror assembly.
- Page 4 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 4. Using side cuts, trim the original harness back 87 inches from the end of the spade connectors and ring terminal. Pull/Separate the ground wire from the main power harness approximately 6 inches. See figure 4a and 4b.
- Page 5 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 6. Strip the main power harness power wires back 1/4 inch. Make sure to not damage the wire strands. Twist the two stripped ends together. Using the new spade connector provided, connect the black and black/white tracer wires to one connector.
- Page 6 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 8. Route the mirror harness to overhead console opening using the precut notches on the front of the headliner. See figure 8. Figure 8 9. Install the wire harness cover over the wire harness.
- Page 7 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 10. Connect the mirror harness to the mirror main power harness. Make sure both connectors are fully engaged. Wrap foam tape around conectors. See figure 10. Figure 10 11. Locate roof connector I8. Carefully remove it from the headliner.
- Page 8 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 12. Pull the factory tape back. T-Tap the main power harness power wires to Pin 1 light green wire in connector I8. See figure 12a and figure 12b. T-Tap the main power harness ground wire to Pin 2 white/black wire in connector I8.
- Page 9 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 13. Secure the harness to the front center of the headliner with one (1) piece of foam tape. See figure 13. Figure 13 14. Connect the connectors. Install the overhead console. Engage the 2 clips and 3 claws.
- Page 10 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 15. Place owner’s cards in the glove box. See figure 15. Figure 15 16. Connect the negative battery cable. See figure 16. Torque: 48in.*lbf Figure 16 Southeast Toyota Distributors, LLC Page 10 of 15...
- Page 11 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® 17. Compass Zone Setting. (a) With display turned ON, push the mirror power button for 3 seconds or until a number is displayed in the display window. (b) Refer to the Zone Map and toggle button until correct zone is displayed.
- Page 12 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Checklist - these points MUST be checked to Ensure a quality installation. Check: After Installation Look For: Vehicle should be in a fairly well lit area. Verify green LED is on. If it is not ON Turn ignition (ACC power) to ON.
- Page 13 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Block Diagram Frameless® EC Mirror w/Compass & HomeLink® Applies to SET P/N 00016-00463 2015 Tacoma I8 10A Fuse IG1 NO.2 T-Tap the main power harness power wires to Pin 1 light green wire in connector I8.
- Page 14 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Checking the Harness Pin outs: Connector IMH1: Frameless® EC Mirror w/Compass Power Harness Connector Connector view is from the front (pin side) If feedback from the harness on any of the pins does not match the results shown in the Proper Operation field below, check the connection to the vehicle wiring and re-test.
- Page 15 Toyota Tacoma Frameless® EC Mirror w/ Compass & HomeLink® Vehicle Connector I8 Circuit Southeast Toyota Distributors, LLC Page 15 of 15 Rev.C.01.30.15...
