Toyota PW501-02010 Installation Instructions Manual

Corolla (hb) tpa rear
Hide thumbs

Advertisement

Quick Links

Download this manual
Corolla (HB)
TPA Rear
Installation instructions
Model year:
Vehicle code:
Part number:
Manual reference number: AIM 004 317-3
2019/01
*******-DW***W
PW501 - 02010
PW501 - 00700-** (x2)

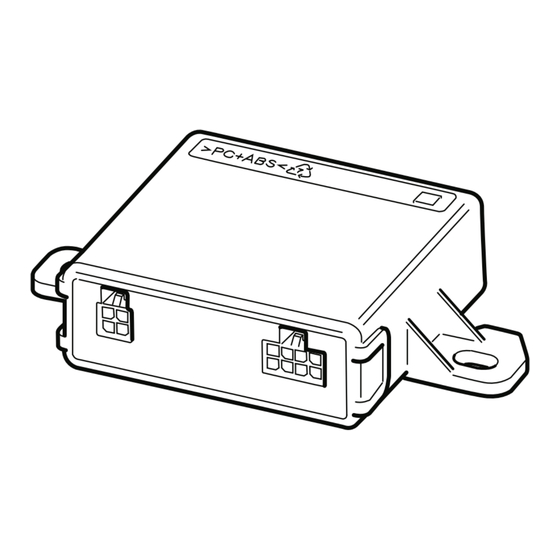

PW501 - 00560 (x1) (Optional) Rear cancellation switch
Main kit
Sensor kit

Advertisement

loading
Need help?

Need help?

Do you have a question about the PW501-02010 and is the answer not in the manual?

Questions and answers

Related Manuals for Toyota PW501-02010

Summary of Contents for Toyota PW501-02010

  • Page 1 Corolla (HB) TPA Rear Installation instructions Model year: 2019/01 Vehicle code: *******-DW***W Part number: PW501 - 02010 Main kit PW501 - 00700-** (x2) Sensor kit PW501 - 00560 (x1) (Optional) Rear cancellation switch Manual reference number: AIM 004 317-3...

  • Page 2: Revision Record

    Revision record Rev. No. Date Page Step Remarks 06/03/2019 Battery terminal removal added 06/03/2019 Hooks removal added 06/03/2019 32-33 Check sheet updated 16/05/2019 Check sheet updated, diagnostic check added 28/06/2019 Step updated Manual reference number AIM 004 317-3 2 of 33...
  • Page 3 T9363 T6430 T6575 T6574 T9362 T9364 T6632 T9365 T9843 OPTIONAL T7093 T6640 PW501-00700-00 PW501-00560 Manual reference number AIM 004 317-3 3 of 33...
  • Page 4 T0001 T0007 T7769 T0012 T0003 T7770 T6239 AIM 003 516-* T7771 Würth Art. No. 0558130 T6319 Ø 20 mm T6114 PZ415-0JGA1-00 T7834 T1094 Würt Art. No. T8268 T3851 0604 101 13 T8747 T9967 CLICK T8352 Ø 2 mm 10 mm Ø...
  • Page 5 Kabelisolierung Manual reference number AIM 004 317-3 5 of 33...
  • Page 6 Manual reference number AIM 004 317-3 6 of 33...
  • Page 7 Blue Blau Azul Bleu Azul Blauw Blå Blå Blå Sininen Modrá Black Schwarz Negro Noir Nero Preto Zwart Sort Sort Svart Musta Černá Brown Braun Marrón Marron Marrone Castanho Bruin Brun Brun Brun Ruskea Hnĕdá Azul Bleu Azul- Donker- Tummansi- Dark blue Dunkelblau Blu scuro...
  • Page 8 T9670 Manual reference number AIM 004 317-3 8 of 33...
  • Page 9 XX mm XX mm START T9383 L0734 10mm 90 sec T10009 Manual reference number AIM 004 317-3 9 of 33...
  • Page 10 10mm = 1x 10 mm 6 Nm T9756 6 Nm 6 Nm 6 Nm 6 Nm = 2x 10 mm 6 Nm Manual reference number AIM 004 317-3 10 of 33...
  • Page 11 T9757 = 2x 14 mm 37 Nm Manual reference number AIM 004 317-3 11 of 33...
  • Page 12 18 Nm = 2x = 1x 12 mm = 1x = 2x T9758 = 3x = 7x = 2x = 2x HV only Manual reference number AIM 004 317-3 12 of 33...
  • Page 13 = 9x T9759 = 1x = 3x = 2x Manual reference number AIM 004 317-3 13 of 33...
  • Page 14 = 10x T9761 LHS=RHS = 7x = 2x 10 mm T9763 Manual reference number AIM 004 317-3 14 of 33...
  • Page 15 T9569 Manual reference number AIM 004 317-3 15 of 33...
  • Page 16 180° ø 20 mm T9570 T9571 Manual reference number AIM 004 317-3 16 of 33...
  • Page 17 CLICK CLICK T9572 Manual reference number AIM 004 317-3 17 of 33...
  • Page 18 T9573 100 mm Manual reference number AIM 004 317-3 18 of 33...
  • Page 19 T9649 35 mm T9574 Manual reference number AIM 004 317-3 19 of 33...
  • Page 20 T9576 Manual reference number AIM 004 317-3 20 of 33...
  • Page 21 T9577 Manual reference number AIM 004 317-3 21 of 33...
  • Page 22 T9578 Manual reference number AIM 004 317-3 22 of 33...
  • Page 23 WITH FUEL PUMP CONTROL FUSE 8.5 Nm 10 mm 8.5 Nm 10 mm T9579 Manual reference number AIM 004 317-3 23 of 33...
  • Page 24 WITHOUT FUEL PUMP CONTROL FUSE 8.5 Nm 10 mm 8.5 Nm 10 mm T9854 Manual reference number AIM 004 317-3 24 of 33...
  • Page 25 T9581 Manual reference number AIM 004 317-3 25 of 33...
  • Page 26 FUSE T9580 Manual reference number AIM 004 317-3 26 of 33...
  • Page 27 TOYOTA TECHNICAL DRAWING ±50 mm T10178 Manual reference number AIM 004 317-3 27 of 33...
  • Page 28 PW501-00583 OE wire Accessory wire Only applicable for Copper wires Wire range (mm Wire insulation diameter (mm) Min. Max. OE wire 0,35 Acessory wire 0,35 Vehicle wire 40mm CLICK T9855 Manual reference number AIM 004 317-3 28 of 33...
  • Page 29 T9380 Manual reference number AIM 004 317-3 29 of 33...
  • Page 30 Ø 2 mm 15 mm 15 mm OPTIONAL T9382 Manual reference number AIM 004 317-3 30 of 33...
  • Page 31 OPTIONAL T9856 5,4 Nm 10 mm T6488 Manual reference number AIM 004 317-3 31 of 33...

  • Page 32: Check Sheet

    CHECK SHEET Page 1/2 Model / Year Corolla 2019/01 TPA Rear DURING INSTALLATION VIN n° P/N = OK CLICK Serial Number 8,5 Nm 37 Nm 6 Nm CLICK CLICK Serial Number Serial Number Installation Date: Technician Name & Signature: Stamp: Manual reference number AIM 004 317-3 32 of 33...

  • Page 33: After Installation
