Section 5 - Installation
5.2

Pipework Connections

District' Inlet and Outlet – 3/4" Male BSP
These are situated at the top of the station, with inlet on the left [Connection 1 – Section 3 and outlet on the right
[Connection 2 – Figure 6]. When connecting the district supply to and from the unit, ensure to provide automatic
air vent at upper most point of pipework.
Heating Inlet and Outlet – 3/4" Male BSP
These are situated at the bottom of the station with the heating flow on the far left [Connection 3 - Section 3] and
heating return on the far right [Connection 7 – Section 3]. Connect these to your heating distribution system.
Cold Water Inlet/Outlet and Hot Water Outlet – 1/2" Male BSP
These are situated at the bottom of the station with the cold water inlet the middle of the ½" connections
[Connection 5 – Section 3]. There is a cold water outlet if station is provided with cold water meter to the left of
the heating return [Connection 6 - Section 3]. The hot water outlet is to the right of the heating flow [Connection 4
- Section 3. Connect your mains cold water to the cold water inlet and outlet if being used in accordance with local
by-laws, and connect your hot water distribution pipe to the hot water outlet on the station.
5.3

Electrical connections

All wiring to the unit must be in accordance with the IEE
regulations, and any local regulations which apply.
Note: If in any doubt a qualified electrician should be consulted.
The unit is supplied with a 2m 3-core flying lead for connection to
mains supply. Mains connection must be done through a fused
isolator rated at 3 Amps and positioned locally to the unit.
Also provided is a 2m 2-core flying lead for connection to a room
thermostat.

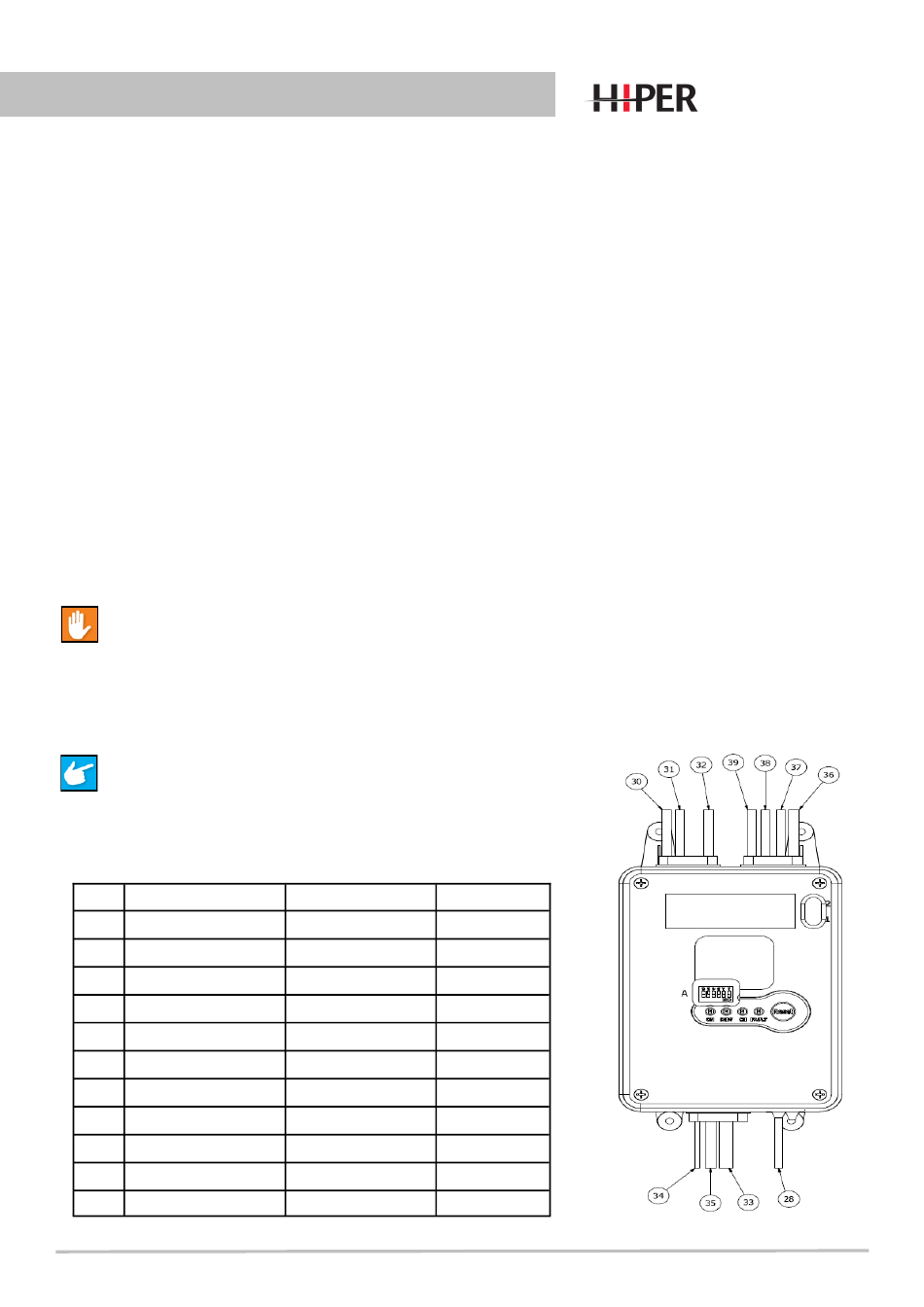

No Description
28 Remote Controller/
Temperature Sensor
30 DHW Temperature Sensor
31 DHW Flow Sensor
32 Mixing Valve Stepper Motor
33 Mains Cable
34 Earth Cable
35 Pump
36 Diverter Valve Stepper Motor
37 CH Temperature Sensor
38 Solenoid Valve
39 CH Safety Thermostat
Individual Wiring Connector
2 Black n/a
2 White Black Connector
Red, White and Blue White Connector
Blue, Black, Brown and Green White Connector
Blue, Brown and Green/ n/a
Yellow
Green/Yellow Uninsulated Crimp
Ring
N/a Black Connector
Blue, Black, Brown and Green Blue Connector
2 Red Black Connector
2 White 2 Terminal Crimps
2 Black 2 Terminal Crimps
