Parent's Guide
91-003673-001
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kidizoom ACTION CAM HD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VTech Kidizoom ACTION CAM HD

Summary of Contents for VTech Kidizoom ACTION CAM HD

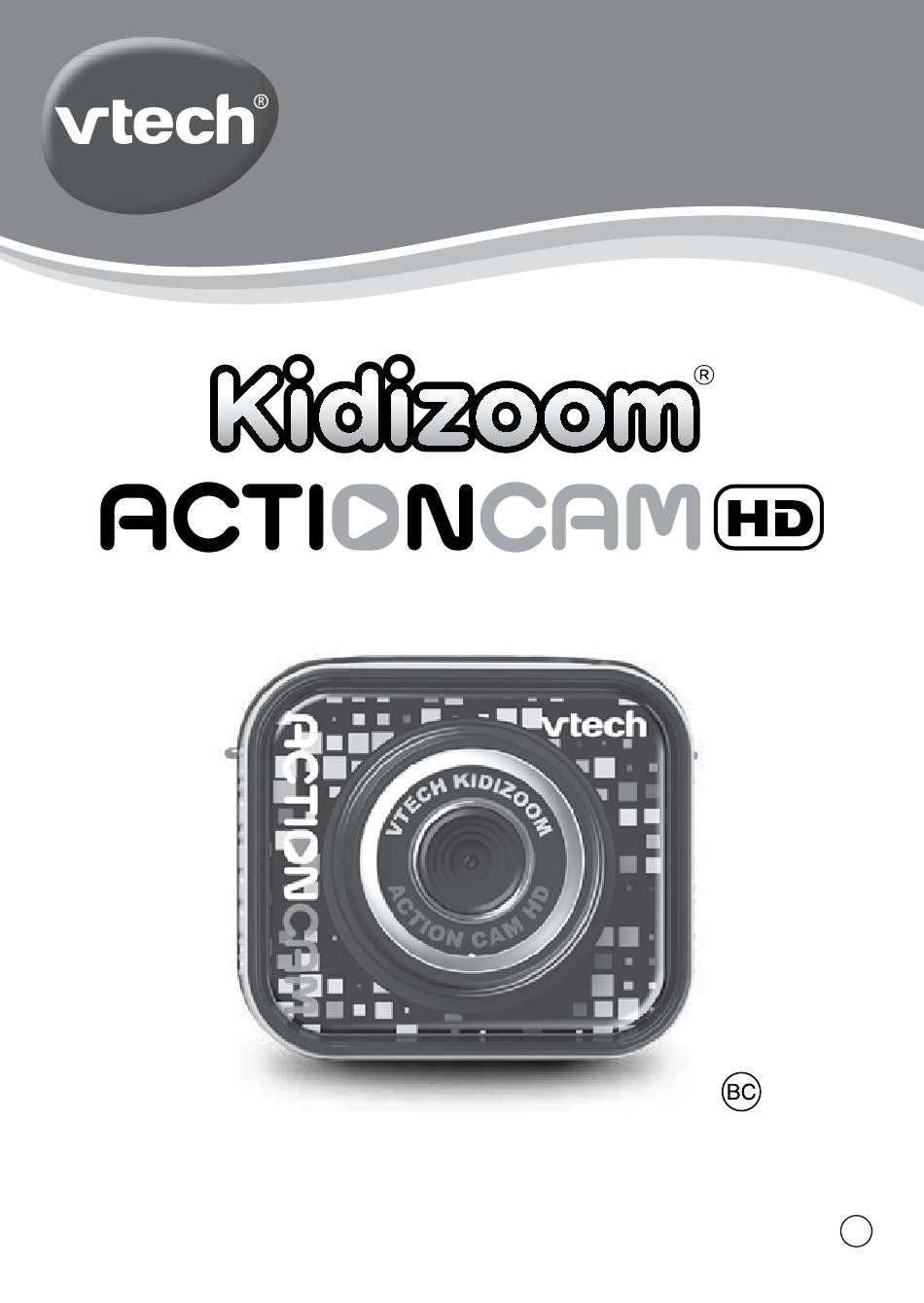

  • Page 1 Parent’s Guide 91-003673-001...

  • Page 2: Included In This Package

    Using the Kidizoom Action Cam HD during ® physical play and movement is at the user’s own risk. VTech claims no responsibility for any misuse or failure to follow these ® guidelines. INCLUDED IN THIS PACKAGE •...
  • Page 3 Kidizoom Action Waterproof Case Camera Holder ® Cam HD Bike Mount Mounting Attachment Adhesive Flat Mount Wide Angle Lens Micro-USB Cable Wrist Strap* Floating Handle Note: The metallic coating on the Kidizoom Action Cam HD is ® insulating. *Remove Wrist Strap from Action Cam before placing in Waterproof Case to avoid water leakage.
  • Page 4 WARNING: All packing materials, such as tape, plastic sheets, packaging locks and tags are not part of this toy, and should be discarded for your child’s safety. ATTENTION : Pour la sécurité de votre enfant, débarrassez-vous de tous les produits d’emballage tels que rubans adhésifs, feuilles de plastique, attaches, étiquettes et vis d’emballage.
  • Page 5 PRODUCT LAYOUT AND BUTTONS K I D I Z O O M A C T I O N C A M H D...
  • Page 6 Master Power Switch When the switch is set to the Off position , the camera is disconnected from the battery and the battery will not charge. Move the switch to the On position to connect the camera to the battery and allow it to be recharged.

  • Page 7: Product Specification

    PRODUCT SPECIFICATION Display 1.8" color LCD Language Multilingual (US English, UK English, Deutsch, Español, Français, Nederlands) Photo Resolution 1280 X 720 (HD) - Does not support photo effects 640 X 480 (SD) Video Resolution 1280 X 720 (HD) - Does not support video effects and only available when using a memory card 320 X 240 (240p)
  • Page 8 Optimal 32°F to 104°F (0°C to 40°C) Operating and Charging Temperature Important Note: The camera itself is not waterproof. Ensure it is properly inserted into the included waterproof case and that the strap has been removed for underwater use. Read the details and instructions about the waterproof case before using.

  • Page 9: Getting Started

    GETTING STARTED When you use the Kidizoom Action ® Cam HD camera for the first time, switch the Master Power Switch to On. Locate the Master Power Switch on the bottom of the camera and move it to the 1 position When the Master Power Switch is Off, it will not be possible to charge the camera...

  • Page 10: Automatic Shut-Off

    BATTERY LIFE Like with other electronic devices, the more the camera is used, the more quickly the battery will drain. Some activities are more demanding on the battery, such as capturing photos and video, in which case the battery will last approximately 2.5 hours with continuous use. With typical usage, the battery will last for approximately one day.

  • Page 11: Memory Card Installation

    To remove the memory card from the camera, push the card once and it will eject. Note: • VTech recommends that you format your memory card before using it with the Kidizoom Action Cam HD camera. ® • Data stored on the camera’s internal memory will not be accessible while the memory card is in use.

  • Page 12: Take Photos

    If you are using a memory card, you can also select to record HD video. Note: VTech recommends setting the screen to auto-off when the camera is mounted for sports, such as on a bike or skateboard. Please refer to the Settings section of this manual to enable the camera screen auto-off function.
  • Page 13 Insert the larger end of the micro-USB cable into a USB port on the computer. A USB port is usually marked with this symbol: • You will see a removable drive called VTech 5202. Please use this to transfer files to and from the camera. There is another removable...
  • Page 14 To back up photos or videos: • Open the DCIM folder on the removable drive VTech 5202. • Drag and drop your photos or videos from their subfolders to a location on your computer to back them up.
  • Page 15 ACTIVITIES Camera Press the Camera button or select the Camera icon from the Home menu to enter Camera mode. Take photos • Press the Camera button or OK button to take a photo. • Press the Left and Right buttons to cycle through different photo effects or to take HD photos without photo effects.
  • Page 16 Time-Lapse Select the Time-Lapse icon from the home menu to take photos at set time intervals. • Press the Left or Right button to select a time interval, then press the OK button to enter the preview screen. • Press the Camera button or OK button to start recording. •...

  • Page 17: Reverse Video

    • After you finish taking photos, your animation will play and you can choose background music. Press the Left and Right buttons to make a selection or turn off music altogether. Press the OK button to make your selection and save the video. •...
  • Page 18 Games There are three built-in games on Kidizoom Action Cam HD. Select ® the Games icon from the Home menu to enter the Games menu. Press the Left and Right buttons to choose a game and press the OK button to select it.
  • Page 19 Action Cam HD is getting ® full, or when the file indexes are used up, VTech recommends that you back up all of the files from the camera’s internal memory to your computer and then delete the files in the camera’s memory to free up space.

  • Page 20: Care And Maintenance

    (iii) Date & Time Follow the same instructions from initial setup to adjust the date and time. (iv) Language Change the system language on the camera. (v) Parental Controls Disable games or set a daily time limit. By default there is no time limit set.

  • Page 21: Troubleshooting

    WARNING A very small percentage of the public, due to an existing condition, may experience epileptic seizures or momentary loss of consciousness when viewing certain types of flashing colors or patterns. While Kidizoom Action Cam HD does not contribute to any additional ®...
  • Page 22 • Check the connections on the USB cable between the camera and the computer and review the Cannot connection procedures in this manual. connect to • Turn the Master Power Switch off for 30 computer seconds. Turn the Master Power Switch on and connect to the computer again.

  • Page 23: Technical Support

    I have purchased a Kidizoom Action Cam HD, but it will not work ® with my PC. My PC is looking for a driver. I have searched the internet and cannot find a VTech Action Cam HD driver. What can Kidizoom ®...
  • Page 24 Question 3: My Kidizoom Action Cam HD will not turn on. ® Answer: Please make sure the Master Power Switch is on and the battery is charged. Question 4: Why are my pictures sometimes grainy and fuzzy? Is there anything I can do to improve the picture quality? Answer: In a poorly lit environment, the frame rate (shutter speed) drops to allow...
  • Page 25 Answer: The picture transfer operation does not start by itself. After you connect the camera to your computer and the drive appears ready, you can open the drive, look in the DCIM folder, and you should find the images you captured with the Kidizoom Action Cam HD.

  • Page 26: Waterproof Case

    KIDIZOOM ® ACTION CAM HD ACCESSORIES Waterproof Case Camera Button Video Button Strap Hook Strap Hook Buckle Handle Microphone Hole Case Body Tripod/Bike Mount Screw Hole Left Button Right Button Home (On/Off) OK Button Button Buckle Screw Angle Screw Knob Adjustment Handle Floating Handle...
  • Page 27 To Insert the Camera into the Waterproof Case 1. Be sure to inspect the O-ring (refer to the later section for details about inspecting the O-ring) and check for water leaks before inserting the camera. 2. To avoid water leaking, if you have attached a wrist strap to the camera, you must detach it before inserting the camera into the case.
  • Page 28 To Attach the Floating Handle 1. To mount the waterproof case onto the Floating Handle, align the tripod screw hole waterproof case to the screw of the Floating Handle. Screw the knob floating mount clockwise affix camera on the mount. 2.
  • Page 29 Notes • When recording underwater, images and videos may appear less clear than out of water. • You can record audio while the camera is under water, but the sound level will be reduced. Inspecting the O-ring • Carefully check for dirt, sand, hair, dust, salt, threads, etc. on the O-ring.
  • Page 30 Perform the above maintenance each time you use the waterproof case. In the unlikely event that a malfunction of this case causes damage due to water leakage, VTech does not guarantee against damage to the equipment contained in it (camera, battery, etc.) or the recorded contents.
  • Page 31 Camera Holder / Bike Mount / Adhesive Mount Camera Holder Bike Mount Adhesive Mount (Mounting Attachment + Adhesive Flat Mount) Screw...
  • Page 32 3. Pull out the handle as illustrated. 4. Attach the Head Tube Clamp onto the head tube of the bike. Note: For your child’s safety, VTech recommends you mount the camera on the head tube of the bike instead of the handle bar as illustrated: 5.
  • Page 33 6. Mount the holder or waterproof case on the bike mount. Align the tripod screw hole on the camera holder or waterproof case to the screw of the bike mount. Screw the knob on the bike mount clockwise to connect the camera to the mount. 7.
  • Page 34 Note: Maintain this pressure for several minutes to improve the adhesive bond strength. 5. We recommend that the adhesive flat mount stay on the surface at room temperature for one day before using to allow the ultimate strength to be achieved. At room temperature, approximately 50% of the ultimate strength will be achieved after 20 minutes, 90% after 24 hours and 100% after 72 hours.
  • Page 35 Suggested Configurations for Kidizoom Action Cam HD Everyday Play Bike / Scooter Skateboard Underwater...
  • Page 36 WRIST STRAP ATTACHMENT INSTRUCTIONS Wrist Strap must be removed from the Kidizoom ® Action Cam HD before putting into the waterproof case to avoid water leaking! 1. Locate the thread loop on the end of the strap. Insert it into the groove behind the bar and then push it through.

  • Page 37: Disclaimer And Limitation Of Liability

    Electronics North America, L.L.C. and its suppliers ® assume no responsibility for any loss or claims by third parties that may arise through the use of this product. VTech Electronics North America, ® L.L.C. and its suppliers assume no responsibility for any damage or loss caused by deletion of data as a result of malfunction, dead battery, or repairs.

  • Page 38: Supplier's Declaration Of Conformity

    ® Model: 5202 Product name: Kidizoom Action Cam HD ® Responsible Party: VTech Electronics North America, LLC Address: 1156 W. Shure Drive, Suite 200, Arlington Heights, IL 60004 Website: vtechkids.com THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES.
  • Page 39 Visit our website for more information about our products, downloads, resources and more. vtechkids.com Read our complete warranty policy online at vtechkids.com/warranty TM & © 2019 VTech Holdings Limited. All rights reserved. Printed in China. 91-003673-001 US...
