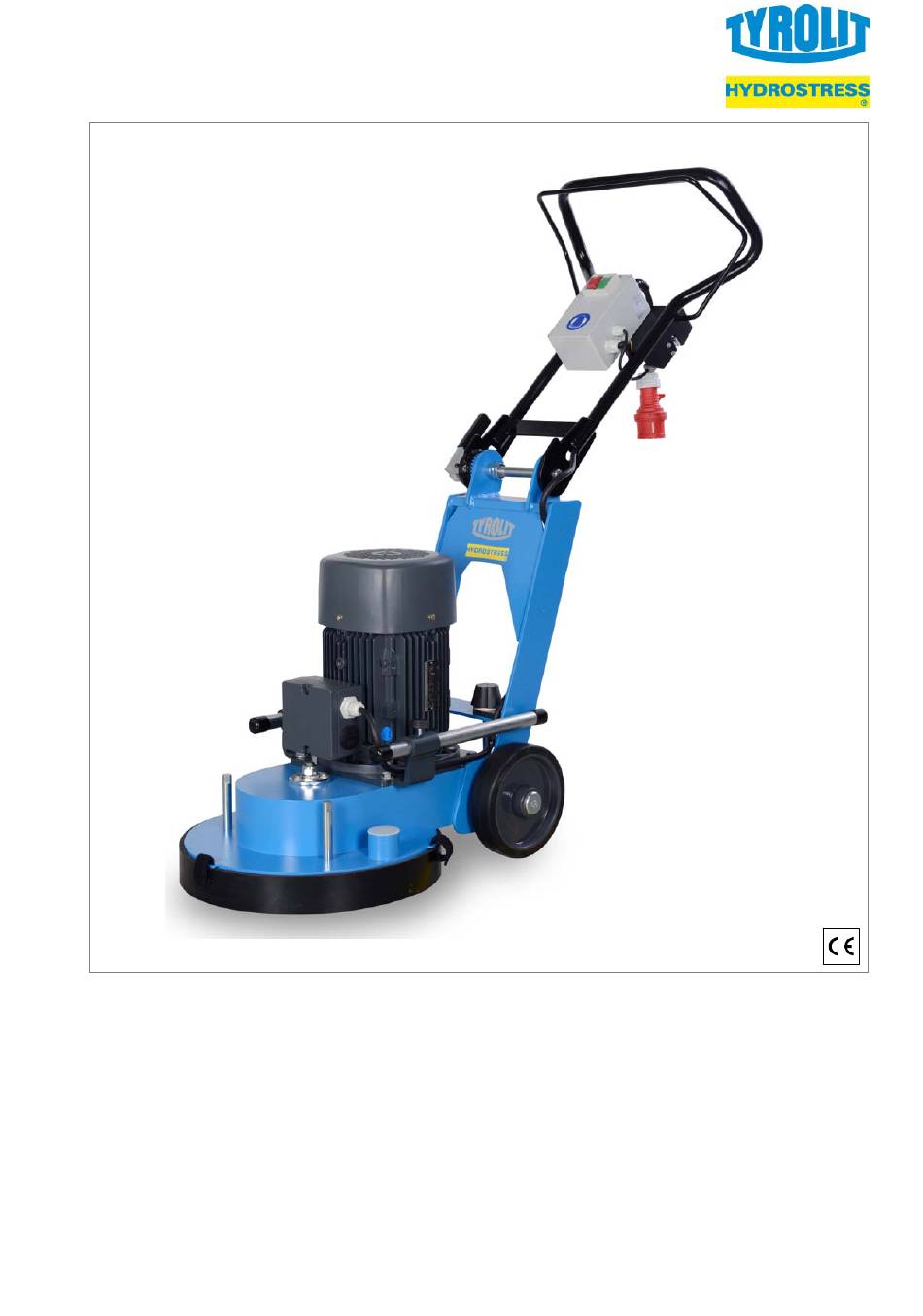

- Page 1 10999140_en Floor grinding machine FGE 400 ......Translation of the original operating manual...
- Page 2 Fig. A Fig. F Fig. H Fig. G Fig. J Fig. B Fig. D Fig. K Fig. L Fig. E Fig. C...
- Page 3 Fig. M Fig. P Fig. N Fig. R...
-
Page 4: Table Of Contents
EN Floor grinding machine FGE 400 Floor grinding machine FGE 400 Translation of the original operating manual Key to the illustrations TYROLIT Hydrostress AG Manufacturer: Witzbergstrasse 18 CH-8330 Pfäffikon ZH Pos. Fig. Designation A/B/J Guide handle +41 (0)44 952 18 18... -
Page 5: Important Notes
EN Floor grinding machine FGE 400 1 Important notes 1 Important notes chine without the manufacturer's permission. Any such actions will also void the warranty. Before using the machine, the opera ting personnel must carefully read and 1.3 Symbols used... -
Page 6: Safety Instructions
EN Floor grinding machine FGE 400 2 Safety The manufacturer and owner of the machine must The safety devices must be mounted during respect the contents and regulations of the EC direc operation. tives. The effectiveness of any measure ultimately Do not operate the machine in areas where depends on how well all parties, i.e. -
Page 7: Operating
EN Floor grinding machine FGE 400 3 Operating High-voltage electrical current can be fatal! High-voltage electrical current can be fatal! Only connect the machine to power supplies Take care not to run over, crush or pull on the equipped with a ground fault circuit breaker!. -
Page 8: Operation
EN Floor grinding machine FGE 400 3 Operating 10. Turn the carriage height adjustment [18, Fig. F] The drive is switched on. until the machine is aligned horizontally ac The ETX locating plate rotates [14, Fig. C]. cording to the built-in water level [19, Fig. F]. -
Page 9: Maintenance
EN Floor grinding machine FGE 400 4 Maintenance 4 Maintenance 4.3 Tilting the machine Before tilting the machine, always make sure that it is on an even, level floor surface! Follow the safety instructions in Chapter 2! Disconnect the power plug [2, Fig. A] from the mains. -
Page 10: Checking Electrical Components
EN Floor grinding machine FGE 400 5 Acceptance and transportation 4.6 Checking electrical components 5.2 Transporting the machine Only suitably knowledgeable, qualified profes sional electricians may perform work on any electrical components of the machine. Risk of fire due to faulty electrical cables! —... - Page 11 EN Floor grinding machine FGE 400 6 Declaration of Conformity 6 Declaration of Conformity (hoisting or carrying the machine over short distances, 2 people) TYROLIT Hydrostress AG Witzbergstrasse 18 Remove additional weights (! Chapter CH-8330 Pfäffikon ZH 4.2). Switzerland Loosen the knob screws [21, Fig. H], slide We hereby declare that the machine the carrying rods to the front [20, Fig.
-
Page 12: Troubleshooting
EN Floor grinding machine FGE 400 7 Troubleshooting 7 Troubleshooting Only suitably knowledgeable, qualified profes sional technicians may perform repairs on the machine. Malfunction Cause Rectification Machine will not start. The voltage supply has not been Join the connecting cable (extension properly connected. -
Page 13: Declaration Of Conformity
EN Floor grinding machine FGE 400 8 Technical data 8 Technical data Designation FGE 400 Rated voltage 400 V, 3 Rated frequency 50 Hz Rated current 8,5 A Rated power (6) 4 kW Connecting cable 5 x min. 2,5 mm (max. - Page 14 TYROLIT Hydrostress AG Witzbergstrasse 18 CH-8330 Pfäffikon ZH Switzerland Telefon: +41 (0)44 952 18 18 Telefax: +41 (0)44 952 18 00 URL: www.tyrolit.com...
