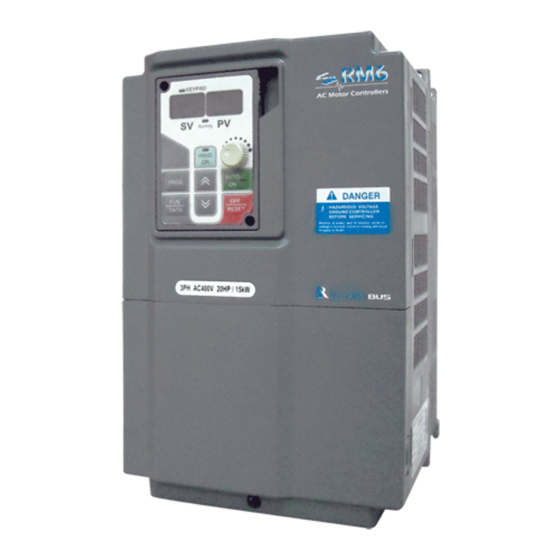

- Page 1 RM6F5 Series Solar Pump Simple Version Operation Manual...
- Page 2 Operation of KP-605 The operation of the digital keypad includes fault message and three modes. The switching methods are shown as below figure: Parameter setting mode Function setting mode Monitor mode KEYPAD KEYPAD KEYPAD PROG DATA PROG DATA STOP RESET PROG KEYPAD...
- Page 3 Parameter List Range of Name Description Unit Def58 Func. setting 0: Software version 1: Drive model number 2: Drive running hours ─ ─ ─ F_000 Drive Information 3: Drive power supplying time 4: Software checksum Code 5: Reserved Start command Rotation direction 0: FWD/REV terminal FWD/REV terminal...
- Page 4 Range of Name Description Unit Def58 Func. setting 0: Disable the functions related to pump. 1: Single pump application. 2: Multi-pump applications; (E-mode) Control Mode 3: Multi-pump applications; (F-mode) ─ ※F_015 Selection 4: Multi-pump applications; (M-mode) (Parallel control) 5. Multi-pump applications; (S-mode) 6: Multi-air conditioning control 7: Feedback ratio control Drive number...
- Page 5 Range of Name Description Unit Def58 Func. setting 0.00~ Analog input “Vin” gain ratio adjustment. Vin Gain 0.01 1.00 F_040 2.00 -1.00~ Analog input “Vin” bias ratio adjustment. Vin Bias 0.01 0.00 F_041 1.00 Frequency 0.00~ The upper limit of output frequency= F_017*F_042 0.01 1.00 F_042...
- Page 6 Range of Name Description Unit Def58 Func. setting 0: Disable Multi-function ±1: Standby detection F_058 Output Terminal ±2: Constant speed detection. ±3: Zero speed detection. (Y1) ±4: Frequency detection. ±5: System overload detection. (OLO) Multi-function ±6: Stall prevention detection. F_059 Output Terminal ±7: Low voltage detection.
- Page 7 Range of Name Description Unit Def58 Func. setting Operation Selection at 0: Drive cannot be restarted ─ F_078 Instantaneous 1: Drive can be restarted Power Failure Auto-Restart 0: Short time interval to auto-restart according to Selection for the setting of F_080 (OC,OE,GF only). ─...
- Page 8 Range of Name Description Unit Def58 Func. setting Digital Input When the digital input signal is under the setting F_097 1~16 Response Time time, program will not be activated. Grounding Fault 0: Disable ─ F_098 Protection (GF) 1: Enable(GF) External Select the monitor mode of external indicator 1 ─...
- Page 9 Range of Name Description Unit Def58 Func. setting Set the current level to detect if pump suffers from Water Shortage 0~100% ※F_120 Detection water shortage conditions. of motor Current Level rated current (0: Disable) Water Shortage Set the detection time for F_119 and F_120 to ※F_121 Detection 0~250...
- Page 10 Range of Name Description Unit Def58 Func. setting 0: Disable Drive 1: Warning (Ht): Continue operation. Overheat ─ F_141 2: Warning (Ht): Drive de-rates the switching Pre-alarm frequency automatically every 5 minutes. Selection 3: Warning (Ht): Stop operation. Drive Overheat F_142 Set the warning level to prevent drive overheating.
- Page 11 Range of Name Description Unit Def58 Func. setting Frequency 0~100% Setting manual mode for lower limit of frequency maximum of Lower Limitation F_163 output command by Manual Mode frequency 0.1~ ※F_166 K Value of Flow Setting value accord with specification of flow 10.0 Sensor 100.0...
- Page 12 Range of Name Description Unit Def58 Func. setting Sector 2 of ─ ※F_185 Sequential Operation Sector 3 of ─ ※F_186 Sequential Operation Sector 4 of ─ ※F_187 Sequential Operation Sector 5 of ─ ─ ─ ※F_188 Sequential Refer to F_184 setting description Operation Sector 6 of ─...
- Page 13 Range of Name Description Unit Def58 Func. setting (Solar Mode) Restrict the auto renew starting voltage value< 0.00~ ─ Starting Voltage 0.95 F_206 F_206*F_205。 1.00 Limit 0: Disable CLF: Clear error records dEF60: Restore the default value of drive for 60Hz. dEF50: Restore the default value of single pump constant pressure control for 60Hz.
- Page 14 Connection and Parameter Setting Example of Solar Pump Assumed that the Maximum open circuit voltage of solar panel is 280V, and the pump minimum speed is 10Hz.The expected detection time of water shortage is 90 seconds, and the shortage protection of drive or LE1 will restart after 10 seconds.
- Page 15 (C) The setting of Auto Restart time: Setting Range of Default Func. Name setting Setting Value F_202 0~600 Auto Restart Set the function of F_202 (Auto Restart) = 90, the drive will restart after 10 seconds. When the setting value of F_202 > 0, the drive will restart again in the conditions below: a.
- Page 16 Warning Messages of Drive Display Description Cause Troubleshooting (LE) (Err_00) KEYPAD Power source Err_00: Keypad cable KEYPAD under voltage trip before connecting (bb) (Err_01) KEYPAD Drive output KEYPAD Err_01: Keypad cable interruption trip during operation (Fr) (Wr_F) Different software KEYPAD KEYPAD Coast to stop version inter-copy...
