- Page 1 DT25TD5 Indoor Monitor User Manual Please read this manual carefully before using the product you purchase, and keep it well for future use.We reserve the right to modify the specification in this manual at any time without notice.
-
Page 2: Parts And Functions

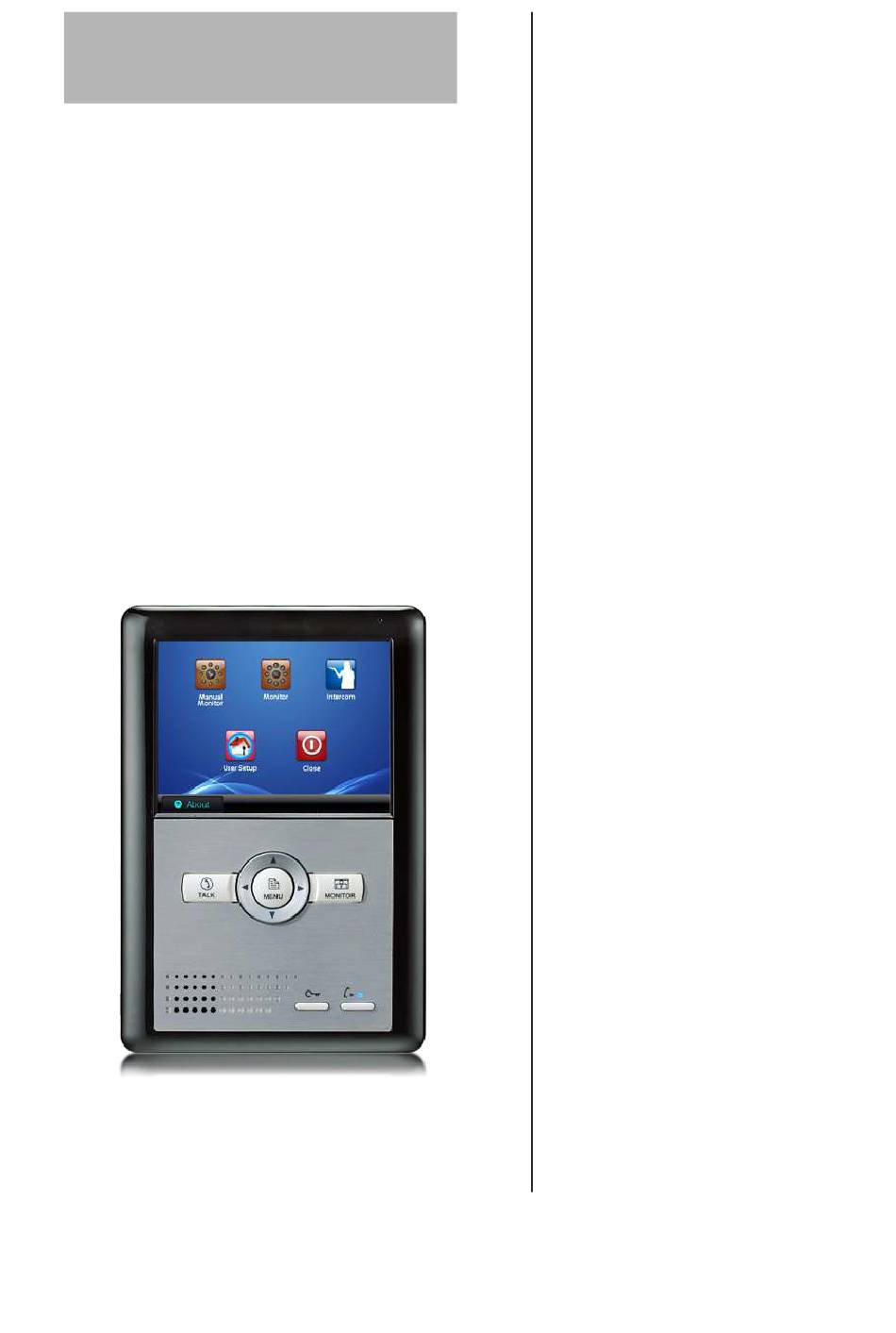

1. Parts and Functions Microphone LCD Screen Mounting Hook MENU key TALK key DIP Switches MONITOR key 1 2 3 4 5 6 TALK MONITOR MENU Connection Port Navigation key Extend Port Speaker UNLOCK key Mounting Hook CALL key Key Functions Microphone Receives sound from the user. -
Page 3: Monitor Mounting
2. Monitor Mounting ● Use the screws to fix the Mounting Bracket on the wall.(accessories include a Bracket, two 4X25 screws (use to fasten the Mounting Bracket), 2 wire cables (use to connect with Monitor)). ● Connect the system correctly. then hang the Monitor on the Mounting Bracket firmly. 3. -
Page 4: Basic Function Instructions
4. Basic Function Instructions Answering a Door Call When you receive a call, the monitor will ring, at the same time ,the visitor's image will be seen on screen.(Note:the screen will turn off after 30 seconds if nobody answers.) Press Button or touch icon, you can talk with the visitor for 90 seconds. -
Page 5: Basic Setup Instructions
If multi Monitors are installed in one user, select and press the Inner Call item, the Inner Call: other Monitors will ring at the same time, whichever Monitor answers the call, conversation is started,and the other monitors will stop ringing at the same time. A Monitor can be assigned as Guard Unit Monitor;... -
Page 6: Ring Volume Setting
Ring Volume Setting You can set a ring volume for day time,6:00 AM~18:00 PM is the day time by default. To open ring volume setting page: 1. On the home screen, touch User Setup icon. 2. Touch item. Ring Volume 3. -
Page 7: Monitor Time Setting
Monitor Time Setting 90 seconds is the default monitor time.But you can change the value at any time. To open monitor time setting page: 1. On the home screen, touch Manual Monitor icon. 2. Touch item. Monitor Time 3. A digital keypad will be shown,touch the keypad to input the setting. -
Page 8: Date And Time Setting
Date and Time setting You can reset the date and time shown on the calendar page. To open clock setting page: 1. On the home screen, touch User Setup icon. 2. Touch item. Clock 3. Touch the digital keypad to input the correct time. -
Page 9: Monitor Parameter Setting
6. Monitor Parameter Setting You can set the parameter setting on monitor [0010] #: Remove all remote control [0011] #: Add remote control directly. [8000] #: Set as master unit 0 [8001] #: Set as slaver unit 1 To open Installation setting page: [8002] #: Set as slaver unit 2 [8003] #: Set as slaver unit 3 1. - Page 10 The code number from 8021 to 8029 are used to set the unlock time to 1~ 9 seconds. How to add the remote control function The DT25TD5 monitor has assigned with remote control function,you can control the monitor via remote control.
-
Page 11: Specification
The code number of 0010 is used to remove all remote control function. The code number of 0011 is used to add remote control function. Button functions of Remote control A:Monitor/Talk button B:Reserve C:Reserve D:Unlock/Confirm button 7. TPC Function The DT25/TD5 monitor has assigned with TPC function that you can divert calls to the telephone. - Page 12 DT-ENG-DT25TD5-V1 2011W0625...
