2.3.1.3
Rack Mount (Optional)
A mounting bracket, shown in
mounting PDU in a rack, refer to the installation drawing provided with the mounting bracket.
RACK
MOUNTING
BRACKET
2.3.2
Installation of PDU Cables
There are fife PDU cables:
• Power cable
• Alarm cable
• Communication cables
• MHU (Bias-T) cables
• Ground cable.
Figure 5
is available that allows the PDU to be mounted in a rack. If

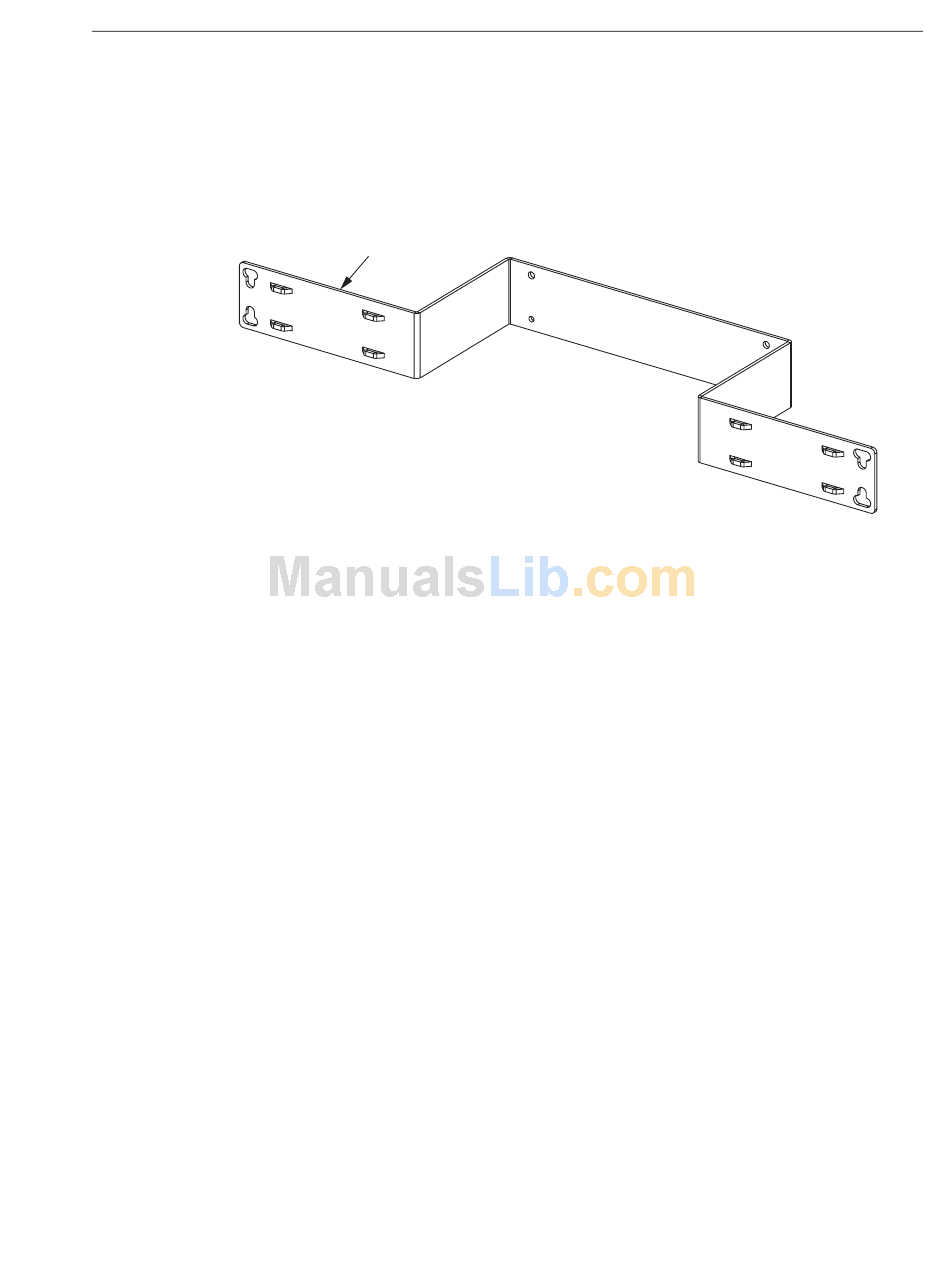

Figure 5. PDU Rack Mount Bracket
ADCP-75-214 • Issue 2 • September 2006
21300-A
© 2006, ADC Telecommunications, Inc.
Page 7
