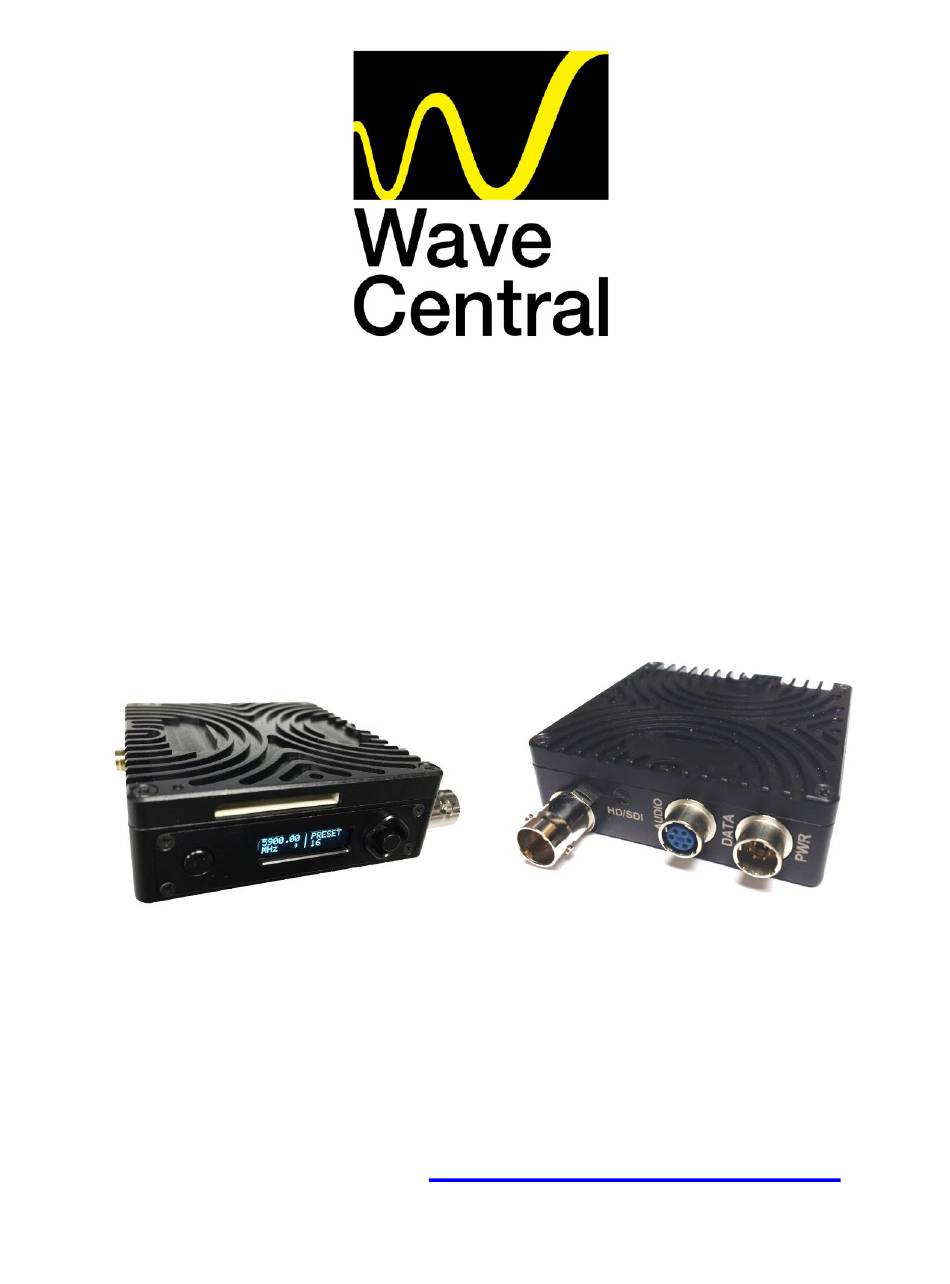

- Page 1 AXIS TX PICO Mini RF Transmitter Menu Guide Wave Central LLC 99 Garden Parkway, Suite C., Carlisle, PA 17013 +1 888 736 9283 www.wavecentralrf.com VER.3 OCTOBER 2017...
- Page 2 WARNING The HD/SDI Video input connector is 75 Ohms. Make sure that the video cable(s) are fitted with 75 Ohm connectors. The illustration on the right is the correct BNC connector. Failure to do so will damage the BNC connector on the Pico and Pico Plus transmitters.
- Page 3 AXIS PICO TRANSMITTER USER CONTROL INTERFACE CANCEL/BACK DISPLAY SCREEN SCROLL/ BUTTON CONFIRM BUTTON Apply power to the unit; power up sequence will then start. VER.3 OCTOBER 2017...
- Page 4 To select a menu header, you press the button on the left of the LED display and then using the joystick controller on the right side of the LED display, you can scroll through the menu headings: STATUS / CONFIGURATION / PRESET / UNIT By selecting the “Status”...
- Page 5 CONFIGURATION There are four menus heading under the CONFIGURATION menu: RF / VIDEO / AUDIO / DATA By pressing the joystick and scrolling down, you can select which menu you want to see. By pressing the joystick again, you will enter that menu.
- Page 6 RF Frequency: (Should be set to desired channel e.g. 5900.0000 MHz) RF Bandwidth: (Should be set to 8 MHz) RF Modulation: (Should be set to 16-QAM) RF FEC: (Should be set to 2/3) VER.3 OCTOBER 2017...
- Page 7 RF GUARD INT. (Should be set to 1/32) VIDEO VIDEO Format: (Should be set to AUTO) VIDEO Mode: (Should be set to Ultra Low Delay) VER.3 OCTOBER 2017...
- Page 8 By pressing the little button on the left of the LED display, will get you to the top menu level. Scroll down once click and you will see the next menu heading. AUDIO AUDIO Source: (Should be set to Embedded) AUDIO Mode: (Should be set to Stereo) VER.3 OCTOBER 2017...
- Page 9 AUDIO Encoder: (Should be set to MPEG-1 Layer2) AUDIO Bitrate: (Should be set to 192 kbps) AUDIO Mic P48: (Should be set to Off) VER.3 OCTOBER 2017...
- Page 10 DATA DATA Input: (Set to Off) DATA Baud Rate: (Set to 4800 Baud) DATA Format: (Set to 8 Bit – None) By pressing the little button on the left of the LED display, will get you to the top menu level. Scroll down once click and you will see the next menu heading.
- Page 11 There are 16 different preset files. This enables the user to change parameters and save the changes to different files (if wanted). Normally, we would have all the preset parameters match from one to sixteen, the only change from one file to the other would be the frequency. Then by changing from one preset to another, it becomes very easy to only change the unit’s channel…….
- Page 12 By scrolling down, you can see the unit’s internal temperature, software version and serial number. By pressing the little button on the left of the LED display, will get you to the top menu level. VER.3 OCTOBER 2017...
- Page 13 DOCUMENT DISCLAIMER SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WAVE CENTRAL LLC, IS NOT LIABLE FOR DAMAGES TO THIS OR ASSOCIATED EQUIPMENT CAUSED BY ANY ERRORS OR OMMISSIONS CONTAINED HEREIN. FIMIULARIZATION OF THESE MENUS IS ENCOURAGED. HOWEVER ANY CHANGES MAY AFFECT THE OPERATION PARAMETERS THAT WERE PRE- PROGRAMED.
