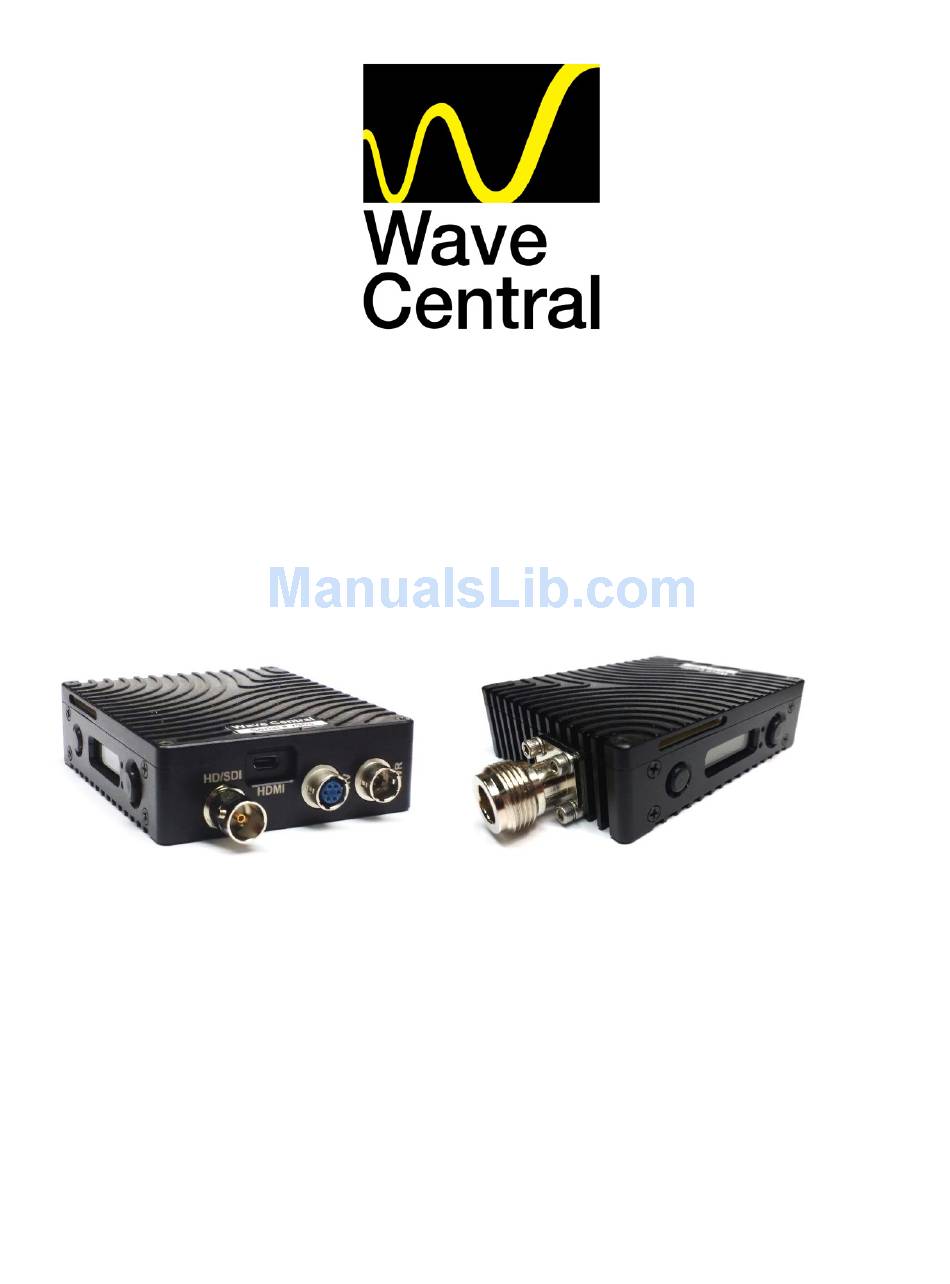

- Page 1 AXIS TX PICO PLUS Mini RF Transmitter Menu Guide Wave Central LLC 99 Garden Parkway, Suite C., Carlisle, PA 17013 +1 888 736 9283 www.wavecentralrf.com VER.1 FEBUARY 2017...
- Page 2 PICO PLUS TRANSMITTER MENU GUIDE Apply power to the unit, turn on power switch, start up sequence will start. CANCEL/BACK DISPLAY SCREEN SCROLL/ BUTTON CONFIRM BUTTON To select a menu header, press the joystick button on the right of the LED display and then using the joystick controller scroll through the menu...
- Page 3 headings: STATUS / CONFIG RF / CONFIG VIDEO / CONFIG AUDIO / CONFIG DATA / PRESET / PATTERN GENERATOR / UNIT. Select by pushing right joystick button, scroll, push to highlight selection, and then scroll to desired setting. Push right button again to confirm setting. STATUS By selecting the “Status”...
-
Page 4: Configuration Menus
CONFIGURATION MENUS There are four menus: RF / VIDEO / AUDIO / DATA pressing the right joystick button and scrolling down, you can select which menu you want to see. Pressing the right joystick button again, will enter that menu. RF ON/OFF RF POWER RF FREQUENCY... - Page 5 RF BANDWIDTH RF CONSTELLATION RF FEC RF GUARD INT...
-
Page 6: Video Source
CONFIG VIDEO VIDEO SOURCE VIDEO FORMAT VIDEO MODE... -
Page 7: Config Audio
ASI ON/OFF Pressing the button on the left of the LED display, will take you to the top menu level. Scroll down with right joystick button to advance to the next menu heading. CONFIG AUDIO Press right joystick button for next audio sub-menu AUDIO SOURCE 1... -
Page 8: Audio Mode
AUDIO SOURCE 2 AUDIO MODE AUDIO ENCODER AUDIO BITRATE... - Page 9 LEFT LEVEL GAIN RIGHT LEVEL GAIN 2v MIC OPTION...
-
Page 10: Config Data
CONFIG DATA DATA INPUT: (Set to Off) DATA BAUD DATA FORMAT... - Page 11 Pressing the button on the left of the LED display serval times, will take you back to the top menu level. Press the right joystick button once and you will see the next menu heading, scroll down to the available top menus. Press again, will take you to its sub- menu for settings and changes.
-
Page 12: Pattern Generator
PATTERN GENERATOR... - Page 13 CONTROL Provides Video & Audio test signals MODE Visual pattern has moving object UNIT Scrolling down, you can see the unit’s internal temperature, software versions, serial numbers and supplied input voltage. TEMPERATURE C°...
- Page 14 TX VERSION [Transmitter Software] SERIAL NUMBER PICO VERSION [Display Software] MCU VOLTAGE [Input Supply]...
- Page 15 DOCUMENT DISCLAIMER SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE. WAVE CENTRAL LLC, IS NOT LIABLE FOR DAMAGES TO THIS OR ASSOCIATED EQUIPMENT CAUSED BY ANY ERRORS OR OMMISSIONS CONTAINED HEREIN. FIMIULARIZATION OF THESE MENUS IS ENCOURAGED. HOWEVER ANY CHANGES MAY AFFECT THE OPERATION PARAMETERS THAT WERE PRE- PROGRAMED.
