Assembly and Operation Guide

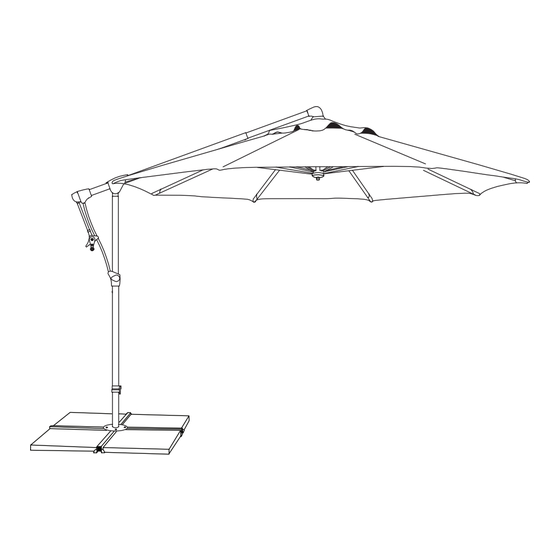

AG19 CANTILEVER
AG19 10' octagon
AG19SQ 8.5' square

Advertisement

loading
Need help?

Need help?

Do you have a question about the AG19 CANTILEVER Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Treasure Garden AG19 CANTILEVER Series

Summary of Contents for Treasure Garden AG19 CANTILEVER Series

  • Page 1 Assembly and Operation Guide AG19 CANTILEVER AG19 10’ octagon AG19SQ 8.5’ square...
  • Page 2 Thank you for purchasing Treasure Garden’s AG19 Cantilever. Please remove all contents from the package, inspect and review checklist. Some parts may be included in the styrogoam packaging. Do not discard any packaging or box until assembly is complete. CHECKLIST...
  • Page 3 STEP ASSEMBLE UNIVERSAL CROSS BAR STAND IMPORTANT: Prior to assembly it is important to decide on the location of the umbrella. • Allow ample height to avoid damage to your umbrella during assembly and usage. • Choose a location that is level and sturdy. •...

  • Page 4: Assemble Frame

    STEP ASSEMBLE FRAME Insert the top pole with canopy into the bottom pole until spring locks (Fig. 4). Hold the canopy closed and slowly lift cantilever upwards until arm is fully extended and spring locks into place (Fig. 5). Screw the crank handle clockwise into the crank case. *NOTE: Shortening of the cantilever is merely for packaging purposes or storage.
  • Page 5 STEP OPENING UMBRELLA Hold the tilt degree scale on the cantilever and lift it up (Fig. 6) and outward (Fig. 7) until the shoulder is reached and the spring lock button locks into place (Fig. 8). Secure operating handle to the umbrella by attaching the crank case to the support strut (Fig. 9). Turn the crank (Fig.
  • Page 6 STEP TILTING UMBRELLA IMPORTANT: PRIOR TO USING TILT FEATURE. To avoid personal injury or damage to the umbrella, make sure the area behind you is clear and free from any furniture or structure. Position yourself behind umbrella. Pull the operating handle from the support strut (Fig. 12). Pull the steering rod further away from the support strut (to a 45°...
  • Page 7 STEP ROTATING UMBRELLA Loosen the base pole clamp by turning the clamp counter-clockwise. Rotate the umbrella to the desired position. Turn the clamp in a clockwise direction to secure into place (Fig. 16). Base Pole Clamp (Fig. 16) STEP LIGHT ADAPTER FEATURE To ATTACH Umbrella Light: (sold separately) Loosen the light adapter built into the umbrella runner by turning counter-clockwise (Fig.
  • Page 8 STEP CLOSING UMBRELLA IMPORTANT: When closing the umbrella, the canopy must be in a horizontal position, or damage to umbrella may occur. Hold the operating handle against supporting strut and turn the crank counter-clockwise (Fig. 19) until the canopy is closed (Fig. 20). Unlock the umbrella by detaching the crank case from the support strut (Fig.

  • Page 9: Care And Maintenance

    CARE AND MAINTENANCE • When not in use, close and cover umbrella with a protective cover (not included). • Allow a wet canopy to dry while in open position, but do not leave unattended. • If necessary, clean the fabric with lukewarm water, mild detergent, and a sponge. •...

  • Page 10: Warranty

    If a defect in the original material or at your expense. workmanship appears during the warranty period; Treasure Garden will (at its option) This warranty gives you specific legal repair or replace the product without rights, and you may have other rights charge.
  • Page 11 ©2020 Treasure Garden, Inc. - All Rights Reserved. v.04.27.20...
