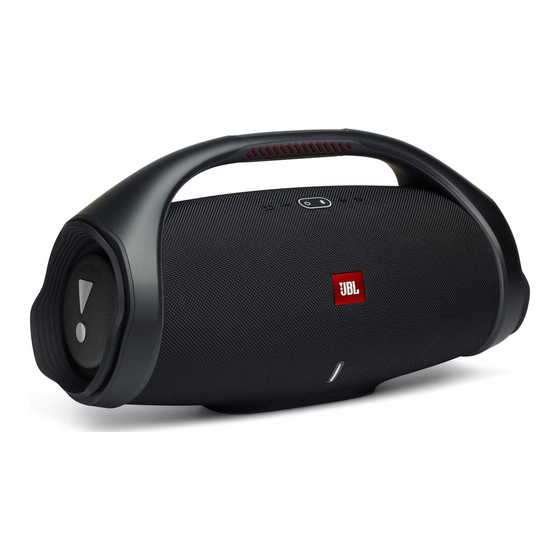

Harman JBL BOOMBOX 2 Quick Start Manual

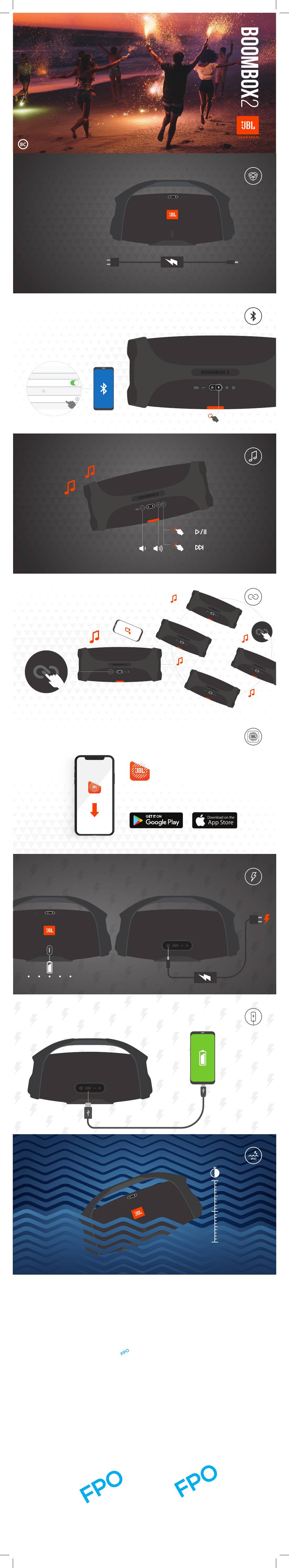

quick
START
GUIDE
WHAT'S
IN THE
BOX
Bluetooth
pairing
Settings
Bluetooth
Bluetooth
DEVICES
JBL Boombox 2
Connected
Now Discoverable

Play

PARTYBOOST

1.

APP

chargING

20 50 100
% %

POWERBANK

WATERPROOF
IPX7

TECH SPEC

General specification:
Transducers:
Rated output power:
Power input:
Frequency response:
Signal-to-noise ratio:
Battery type:
Battery charge time:
Music play time:
USB specification:
USB charge out:
DA
WHAT'S IN THE BOX (*Power cord quantity and plug type vary by regions.) /
Bluetooth pairing / Play / PARTYBOOST / APP (JBL Connect: Use the JBL
Connect app for speaker configuration and software upgrade.) / chargING /
POWERBANK / WATERPROOF IPX7
TECH SPEC
General specification:
4 inch woofer, 20 mm tweeter
Transducers:
Rated output power: 2 x 40 W RMS (AC mode) 2 x 30 W RMS
(battery mode)
24 V / 4.2 A
Power input:
Frequency response: 50 Hz - 18 kHz (-6 dB)
> 80 dB
Signal-to-noise ratio:
Li-ion polymer 72.6 Wh (equivalent to
Battery type:
7.26 V / 10,000 mAh)
Battery charge time: 6.5 hours (24 V / 4.2 A)
up to 24 hours (dependent on volume
Music play time:
level and audio content)
USB specification:
5 V / 2.1 A (maximum)
USB charge out:
Wireless specification:
5.1
Bluetooth® version:
A2DP 1.3, AVRCP 1.6
Bluetooth® profile:
Bluetooth® transmitter frequency 2.402 GHz – 2.480 GHz
range:
≤ 9 dBm (EIRP)
Bluetooth® transmitter power:
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Dimensions:
Dimensions (W x H x D): 484.43 x 200.75 x 256.1 mm
5.865 kg
Weight:
SA_JBL_Boombox 2_QSG_Global_DV2_V5.indd 1
*
* Power cord quantity and plug type vary by regions.
ON
%
4 inch woofer, 20 mm tweeter
2 x 40 W RMS (AC mode) 2 x 30 W
RMS (battery mode)
24 V / 4.2 A
50 Hz - 18 kHz (-6 dB)
> 80 dB
Li-ion polymer 72.6 Wh (equivalent
to 7.26 V / 10,000 mAh)
6.5 hours (24 V / 4.2 A)
up to 24 hours (dependent on volume
level and audio content)
5 V / 2.1 A (maximum)
DE
WHAT'S IN THE BOX (*Power cord quantity and plug type vary by regions.) /
Bluetooth pairing / Play / PARTYBOOST / APP (JBL Connect: Use the JBL
Connect app for speaker configuration and software upgrade.) / chargING /
POWERBANK / WATERPROOF IPX7
TECH SPEC
General specification:
Transducers:
Rated output power:
Power input:
Frequency response:
Signal-to-noise ratio:
Battery type:
Battery charge time:
Music play time:
USB specification:
USB charge out:
Wireless specification:
Bluetooth® version:
Bluetooth® profile:
Bluetooth® transmitter frequency
range:
Bluetooth® transmitter power:
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Dimensions:
Dimensions (W x H x D):
Weight:
JBL CONNECT
Use the JBL Connect app for speaker configuration and
software upgrade.
Wireless specification:
Bluetooth® version:
Bluetooth® profile:
Bluetooth® transmitter frequency range: 2.402 GHz – 2.480 GHz
Bluetooth® transmitter power:
Bluetooth® transmitter modulation:
Dimensions:
Dimensions (W x H x D):
Weight:
4 inch woofer, 20 mm tweeter
2 x 40 W RMS (AC mode) 2 x 30 W RMS
(battery mode)
24 V / 4.2 A
50 Hz - 18 kHz (-6 dB)
> 80 dB
Li-ion polymer 72.6 Wh (equivalent to
7.26 V / 10,000 mAh)
6.5 hours (24 V / 4.2 A)
up to 24 hours (dependent on volume
level and audio content)
5 V / 2.1 A (maximum)
5.1
A2DP 1.3, AVRCP 1.6
2.402 GHz – 2.480 GHz
≤ 9 dBm (EIRP)
484.43 x 200.75 x 256.1 mm
5.865 kg
×1
×1
×2
30 mins
1m
5.1
A2DP 1.3, AVRCP 1.6
≤ 9 dBm (EIRP)
GFSK, π/4 DQPSK, 8DPSK
484.43 x 200.75 x 256.1 mm
5.865 kg
EL
WHAT'S IN THE BOX (*Power cord quantity and plug type vary by regions.) /
Bluetooth pairing / Play / PARTYBOOST / APP (JBL Connect: Use the JBL
Connect app for speaker configuration and software upgrade.) / chargING /
POWERBANK / WATERPROOF IPX7
TECH SPEC
General specification:
4 inch woofer, 20 mm tweeter
Transducers:
Rated output power: 2 x 40 W RMS (AC mode) 2 x 30 W RMS
(battery mode)
24 V / 4.2 A
Power input:
Frequency response: 50 Hz - 18 kHz (-6 dB)
> 80 dB
Signal-to-noise ratio:
Li-ion polymer 72.6 Wh (equivalent to
Battery type:
7.26 V / 10,000 mAh)
Battery charge time: 6.5 hours (24 V / 4.2 A)
up to 24 hours (dependent on volume
Music play time:
level and audio content)
USB specification:
5 V / 2.1 A (maximum)
USB charge out:
Wireless specification:
5.1
Bluetooth® version:
A2DP 1.3, AVRCP 1.6
Bluetooth® profile:
Bluetooth® transmitter frequency 2.402 GHz – 2.480 GHz
range:
≤ 9 dBm (EIRP)
Bluetooth® transmitter power:
Bluetooth® transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Dimensions:
Dimensions (W x H x D): 484.43 x 200.75 x 256.1 mm
5.865 kg
Weight:
10/30/2019 11:48:28 AM
2.
