5.10.4. Grounding operation from the open position
Initial conditions: Grounding switch open, circuit-
breaker closed and springs charged.
1. Close the circuit-breaker by pressing the "I" close button
and check the status indicator.
2. Check that no voltage is present using the ekor.vpis
unit.
3. Move the access handle in the yellow zone to its lower
position.
gas-insulated
6
IG-183-EN version 06; 31/03/2020
Recommended sequence of operations

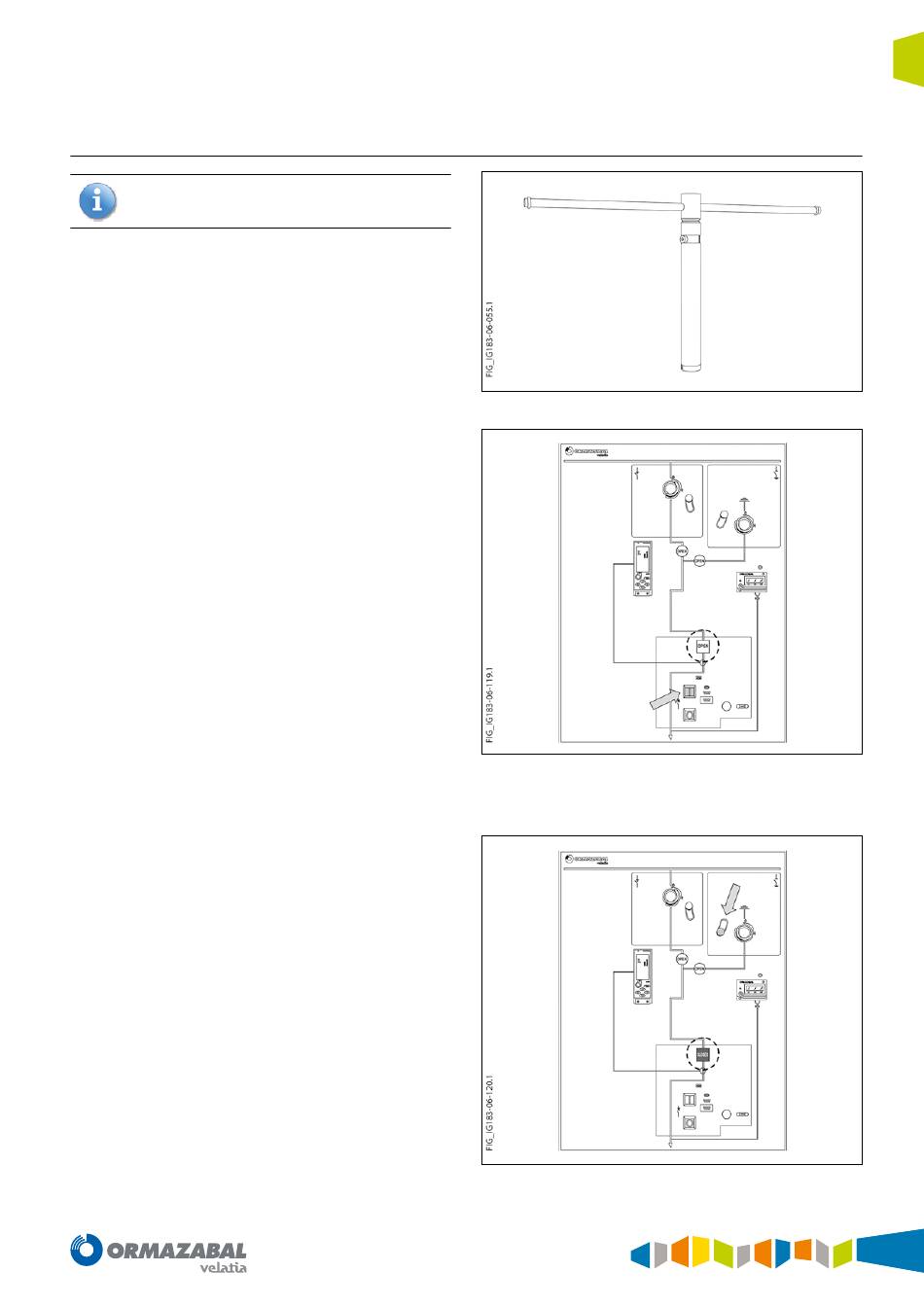

Figure 5.48. B/BM Driving mechanism lever
Figure 5.49. Press the "I" button
Figure 5.50. Move the handle in the yellow area
