Recommended sequence of operations
5.6.2.

Closing operation from the open position

1. Move the actuation shaft access handle in the grey
zone to its lower position.
2. Insert the lever in the switch-disconnector actuation
shaft and turn clockwise.
3. Remove the lever, the handle returns to its original
position.
4. Verify that the cubicle is in closed position.
52
cgm.3 system: medium voltage SF
cubicles up to 38 kV according to IEEE and CSA standards

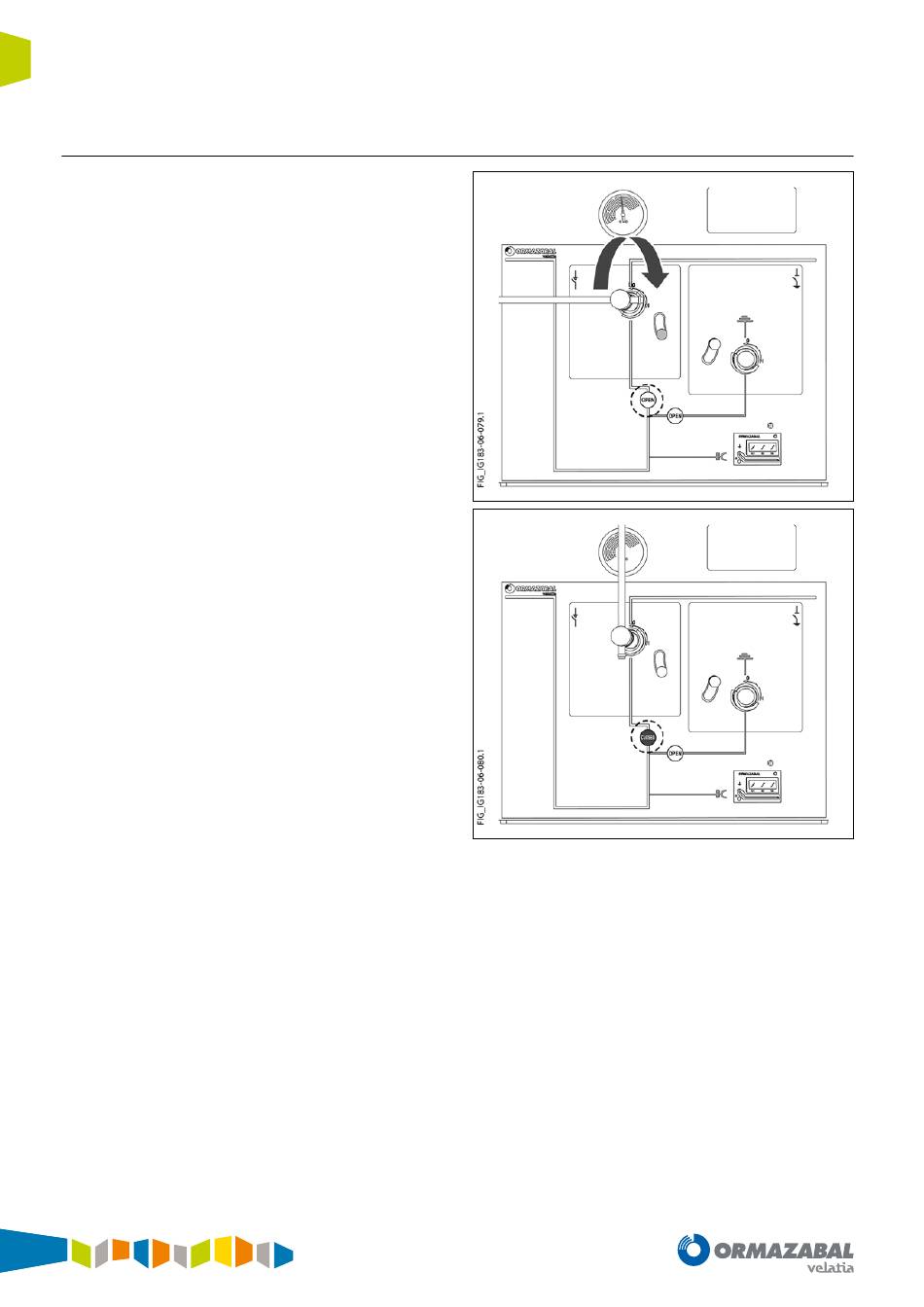

Figure 5.15. Closing operation from open position in cgm.3-s-pti
