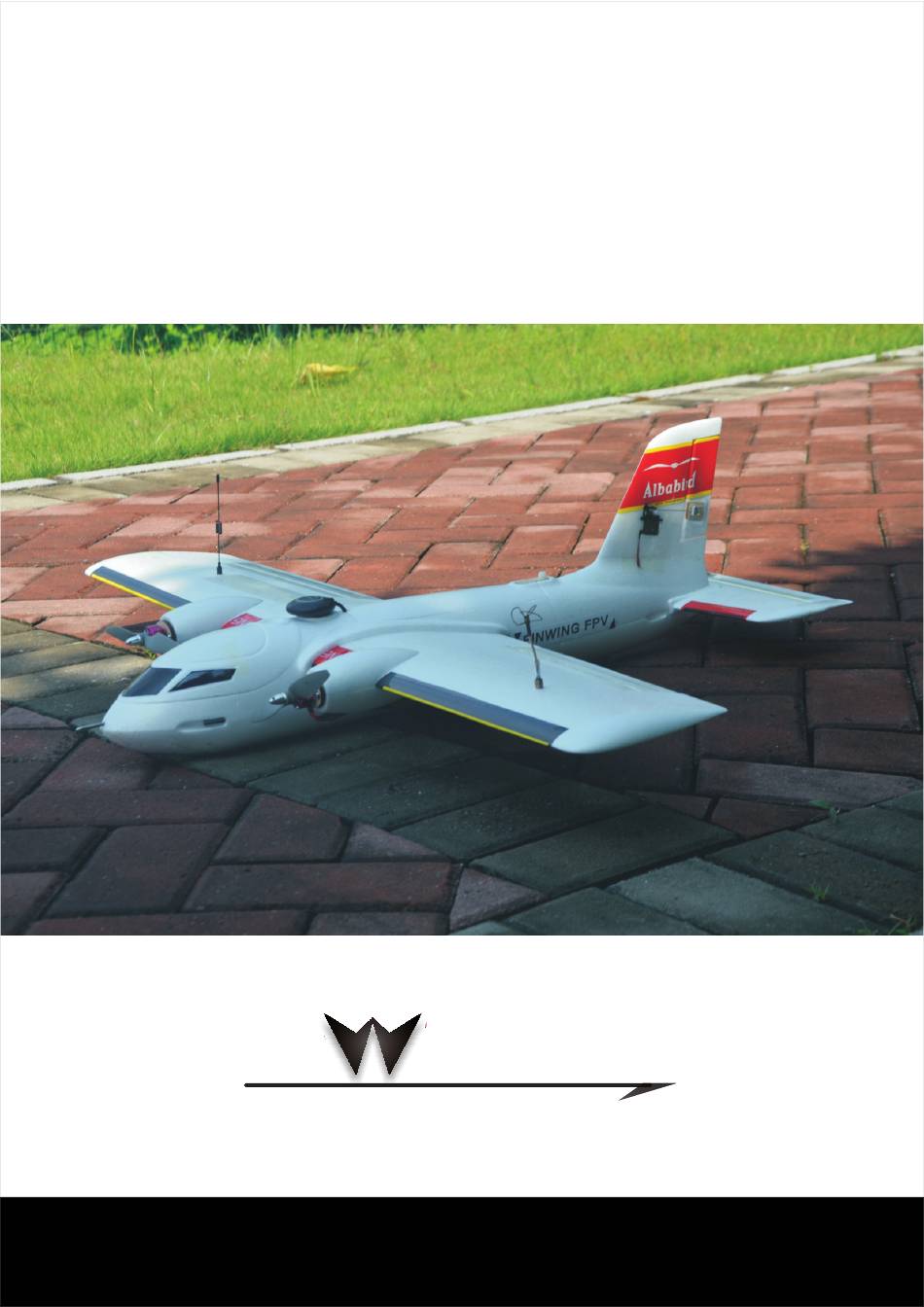

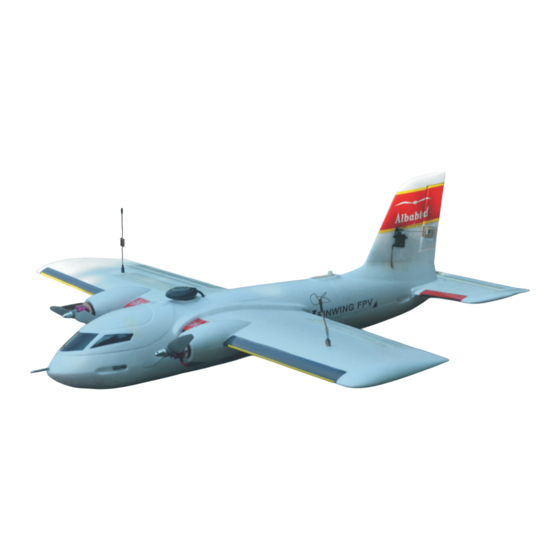

- Page 1 AlbaBird User Manual inghobby Finwinghobby WWW FINWINGHOBBY COM FINWING TECHNOLOGY PATENT OWNER FINWINGHOBBY...
- Page 2 RC plane. Please visit the finwinghobby com official website for more introductions. Warning: 1 This model airplane is not a toy not recommended for children under 14 years old 2. Be cautious and prepared while flying this plane as a range of issues could lead to a crash...
- Page 3 Moving CG backward a little 3mm if plane pitch down tendency Moving CG forward a little 3mm if plane pitch up tendency if still not good after CG Adjustment must checking horizontal wing and main wing especial after crash happened Finwinghobby com...
-
Page 4: Special Recommendations
But But if installing properly and horizontal wing not deformed this won t happened At last Reminder must let fuselage drying at least 12 hours after gluing together to avoid that problem Finwinghobby com... - Page 5 Airframe Building Pleae do to building as per instructions as below step by step Glue vertical wing Install properly and drying Glue Fuselage Note Don't install wings and other devices until drying at least 12 hours Finwinghobby com...
- Page 6 Detachable Fuselage Non detachable fuselge please skip to next page Fuselage Fuselage tail boom Finwinghobby com...
- Page 7 Airframe Building Plywood plywood reinforcements Detachable fuselge must install rods Standard Non Detachable fuselge no need to install rods please skip to next page Finwinghobby com...
- Page 8 We can build main wing now let fuselage glue drying Glue motor mounts Reminder with this remarks to the right wing Right wing Left wing Carbon strip Carbon strip Glue properly to the red area drying one minutes then install properly to the main wing Finwinghobby com...
- Page 9 1 hour before continuing to step 6 Detachable Fuselage please skip ） Glue tail boom to fusealge Reminder must let fuselage drying at least 12 hours this is very important otherwise may cause horizontal wing wrongly pitch up Finwinghobby com...
- Page 10 Detachable fuselage please skip Let it stand up like this drying 12 hours 2020 Newly added this plywood For Non Detachable fuselage < > No need for detachable fuselage Gule to fuselage for reinforcement 40 25MM 40 25MM Ground Finwinghobby com...
- Page 11 Connector Male Female No regular rules on how to solder wires do as per your requirements freely Female to Wings Male to fuselage Screws for Screws secured Male connector to fuselage Female Connector Https www fiwninghobby com...
- Page 12 Standard 9PIN Connector 9PIN Female 9PIN Male Male to Fuselage Female to Wing There is no regular wire connection Please do according to your devices wires as below just for your reference Aileron Aileron To Main wing To Fuselage Finwinghobby com...
- Page 13 Standard 9PIN Connector Reminder Correct Orientation Finally secured by screws Finwinghobby com...
- Page 14 Motor ESC Servo Screw color silvery or Black Wires Length 3 Finwinghobby com...
-
Page 15: Servo Horn
Motor ESC Servo Servo Horn Screw Screw Big one Smaller one Horizontal wing UP Finwinghobby com... - Page 16 Orders after July 2020 will use this new servo horn Newly upgraded Servo Horn Use Left Screw to secure the push rod Right Screw was fixed don t screw off Front 2 Rear 2 This is old one before upgrading Old one New One WWW Finwinghobby com...
- Page 17 Motor ESC Servo Main wing Rudder Finwinghobby com...
- Page 18 Building Wires length required 16CM Stock PNP servo wire is long enough Figure out proper wire length for your devices soldering to the 9 2 connector directly ESC Power wires recommend 18AWG is fine Https www fiwninghobby com...
- Page 19 Building Servo Motor Show in the manual is for you reference only you can do as per your preference Motor Antenna Servo Https www fiwninghobby com...
- Page 20 Building Finished male ready to install to fuselage Shrink film or Hot Melt Glue to prevent it from loosing wires Aileron in Parallel Two ESC Signal Wires in Parallel You can solder all devices and wires before installing to fus l ge Because it is removable freely c , onnector could be installed from inside instead of outside...
- Page 21 How to install Motors and Propellers 1 Propeller running inward > 2 Left Right > 3 Propeller s Character forward > Tie screw like this if you are afraid of missing screws WWW Finwinghobby com...
