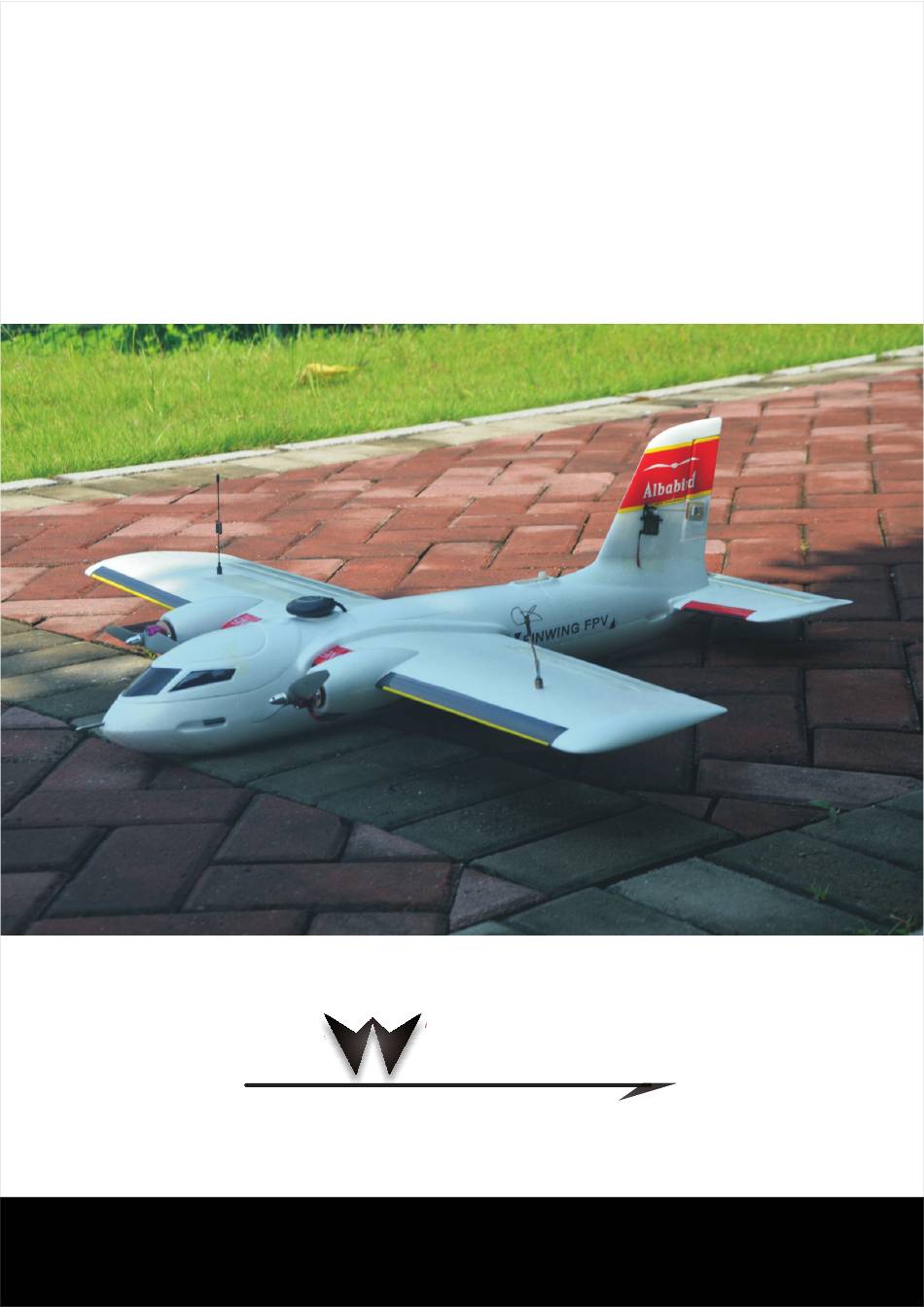

- Page 1 AlbaBird User Manual inghobby Finwinghobby WWW FINWINGHOBBY COM FINWING TECHNOLOGY PATENT OWNER FINWINGHOBBY...
- Page 2 RC plane. Please visit the finwinghobby com official website for more introductions. Warning: 1 This model airplane is not a toy not recommended for children under 14 years old 2. Be cautious and prepared while flying this plane as a range of issues could lead to a crash...
- Page 3 Moving CG backward a little 3mm if plane pitch down tendency Moving CG forward a little 3mm if plane pitch up tendency if still not good after CG Adjustment must checking horizontal wing and main wing especial after crash happened Finwinghobby com...
-
Page 4: Special Recommendations
But But if installing properly and horizontal wing not deformed this won t happened At last Reminder must let fuselage drying at least 12 hours after gluing together to avoid that problem Finwinghobby com... - Page 5 Airframe Building Pleae do to building as per instructions as below step by step Glue vertical wing Install properly and drying Glue Fuselage Note Don't install wings and other devices until drying at least 12 hours Finwinghobby com...
- Page 6 Detachable Fuselage Non detachable fuselge please skip to next page Fuselage Fuselage tail boom Finwinghobby com...
- Page 7 Airframe Building Plywood plywood reinforcements Detachable fuselge must install rods Standard Non Detachable fuselge no need to install rods please skip to next page Finwinghobby com...
- Page 8 We can build main wing now let fuselage glue drying Glue motor mounts Reminder with this remarks to the right wing Right wing Left wing Carbon strip Carbon strip Glue properly to the red area drying one minutes then install properly to the main wing Finwinghobby com...
- Page 9 1 hour before continuing to step 6 ） Detachable Fuselage please skip Glue tail boom to fusealge Reminder must let fuselage drying at least 12 hours this is very important otherwise may cause horizontal wing wrongly pitch up Finwinghobby com...
- Page 10 Airframe Building ） Detachable fuselage please skip Let it stand up like this drying 12 hours Ground Finwinghobby com...
- Page 11 Standard 9PIN Connector 9PIN Female 9PIN Male Male to Fuselage Female to Wing There is no regular wire connection Please do according to your devices wires as below just for your reference Aileron Aileron To Main wing To Fuselage Finwinghobby com...
- Page 12 Standard 9PIN Connector Reminder Correct Orientation Finally secured by screws 5 2 7W2 Connector orientation is exactly the same with Standard 9 PIN connector Finwinghobby com...
- Page 13 Motor ESC Servo Screw color silvery or Black Wires Length 3 Finwinghobby com...
-
Page 14: Servo Horn
Motor ESC Servo Servo Horn Screw Screw Big one Smaller one Horizontal wing UP Finwinghobby com... - Page 15 Motor ESC Servo Main wing Rudder Finwinghobby com...
- Page 16 Customized 5 2 7W2 Connectors 5 2 7W2 There is no regular wire connection Please do according to your devices wires Female Mainwing Male Fuselage Finwinghobby com...
