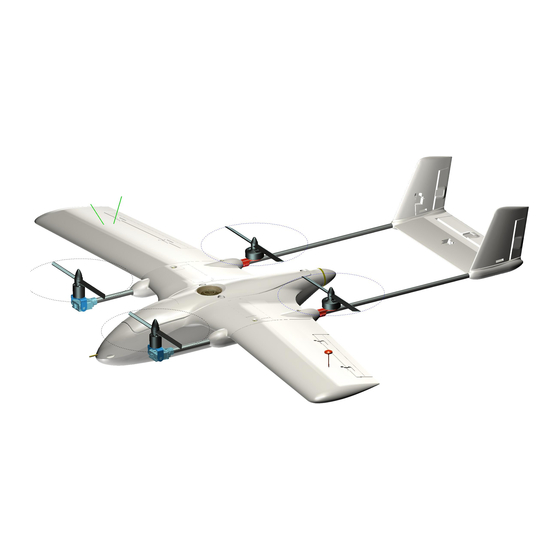

- Page 1 VTBIRD VTOL Version User Manual Manual updating version Building instructions of 4 1 and Tilt Rotor inghobby Finwinghobby WWW FINWINGHOBBY COM FINWING TECHNOLOGY PATENT OWNER FINWINGHOBBY...
- Page 2 Please visit the finwinghobby com official website for more in formation Warning: 1 This model airplane is not a toy don t recommended for anyone under 18 years old 2. Be cautious and prepared while flying this plane as a range of issues could lead to a crash...
- Page 3 CG s exactly the same location no matter 4 1 Tilt Rotor Fixed wing Dual motors and Pusher Front motors should be Tilt Down forward if balance CG for Tilt Rotor Version Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
-
Page 5: Power Configurations
VTBIRD TiltRotor Power Configurations Tilt Servo Wires Required 750MM V TBI RD Customized Tilt Servo Wires is 750MM Tilt Servo Size 4 0 4 0 2 0M M (+ /- . 0 15MM VTOL Front Motor Wires Required 520MM 16AWG VTOL Rear Motor Wires Required 360MM 16 18AWG VTOL ESC X Rotor 40A 4 2 6S... - Page 6 You can glued the whole module to fuselage or keep it removable DIY your own module Top parts glued to fuselage Pre glued in the factory Removable bottom Module Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 7 Install the metal hinge it s only 2 g but reliable Servo Horn please refer to next page Front Screw 2 6 10 Rear 2 8 Solder wires directly to DB 9 Pin Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 8 Anyway for anyone who don t trust there is a options as well another arm is free you can use extension wires as traditionally did Built in Connector The right Arm Free to extension wires The left Arm Extension wires included Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 9 Must use foam glue spreading to the 3K carbon arm before install red pillar let glue drying at least 12 hours prior to installing motors and servo This is good to prevent it from loosing Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com <...
- Page 10 12 hours prior to installing motors The hole was designed for you to find the right position 4pcs Metal shims between Fibre glass and motor is required Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 11 First step pusher motor has been moved backward 18MM All order after 1 9 2020 including all those parts Buyers order before 1 9 2020 can ask for free offer except shipping cost Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 12 All order after 1 9 2020 including all those parts Buyers order before 1 9 2020 can ask for free offer except shipping cost This is good for Propeller Airflow Motor up 8PCS Pillars Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 13 's S 4 1 Rear Propeller pace Install directly if yours are Finwing Stock motors and Propeller But if buying other motors and Propellers please refer to the following introductions. Note: Don t move it away too much keep 8MM 10MM is enought instead of the more the better because moving backward is negative to balance CG Tail heavy Testing proved Space at 8MM 10MM...
- Page 14 VTBIRD VTOL Motor Mount Tilt Rotor Beware of the hole position very important Beware of the hole position very important do it exactly as the drawing do it exactly as the drawing Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 15 ESC Power wires to be as backward as possible it s good to avoid interferences to Compass Note2 recommend to make thread wire like this is good to anti electronic magnetic interference Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 16 VTBIRD FC Board Pre designed Flight controller location Join Facebook Groups Finwinghobby FPV Aircrat www finwinghobby com < >...
- Page 17 Rudder or Not? < Note Standard kits and Electronic combo > not including servo horn parts and servos for rudders Originally design for Twin tail boom plane all without Rudder Non Vtail VTBIRD is also the same without rudder During all our testing we never use rudder But some of the user recommend d to reser ve a rudder options below we have reser ved ser vo bay and control surface position Purpose of the design is not to use rudder...
