Summary of Contents for Modular 65 Series

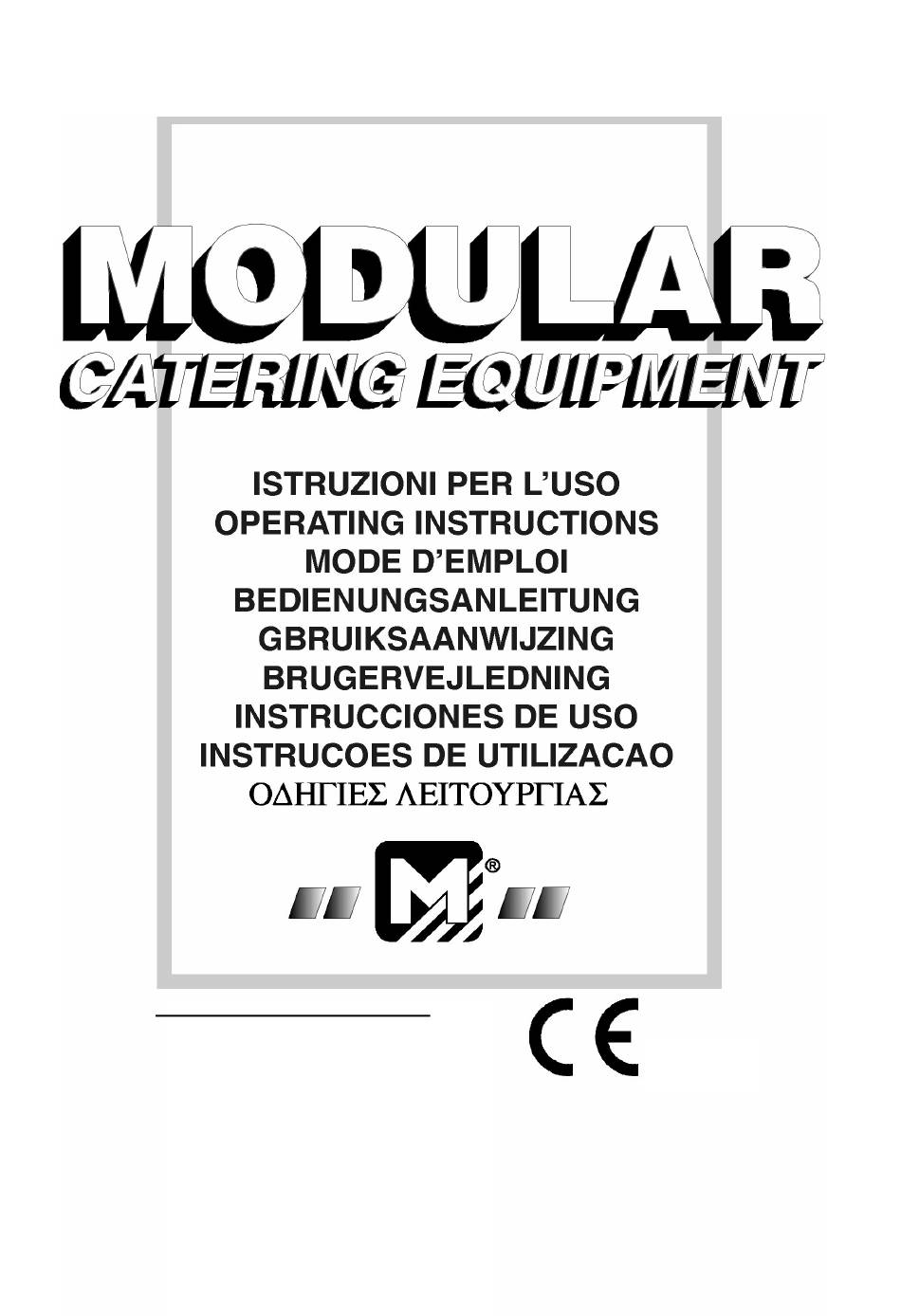

- Page 1 ¸ Cod. 252.170.11 LAVA STONE GRILLS - SERIES 65 0051 MOD. 65/40 GRL 65/70 GRL GB-IE CAT. II 2H3+...
- Page 2 INDEX Warnings Compliance with “EEC” Directives for gas appliances Installation diagrams Technical data table – Lava stone Grills Gas characteristics Instructions for the qualified installer Appliance installation Laws, technical regulations and general rules Discharge of fumes for type ”A” appliances Checking for gas leaks Maintenance Conversion for use with a different type of gas...
- Page 3 THIS APPLIANCE HAS BEEN MADE FOR COOKING FOOD AND MUST ONLY BE USED BY PROFESSIONALLY SKILLED PERSONNEL IN THE WAY DESCRIBED IN THIS INSTRUCTION MANUAL. WARNINGS ♦ Read this handbook through carefully as it provides important information for safe installation, use and maintenance. ♦...
- Page 4 TECHNICAL DATA TABLE – LAVA STONE GRILLS TOTAL DIAMETER OF NOZZLES IN TOTAL GAS POWER HUNDREDTHS OF A BURNERS CONSUMPTION MILLIMETRE MODEL X POWER NATURAL NATURAL No. x kW G30 – G31 G30 – G31 kg/h 30mbar 37mbar M³/h 20 mbar 65/40 GRL 1 x 5.5 0.427...
- Page 5 INSTRUCTIONS FOR THE QUALIFIED INSTALLER APPLIANCE INSTALLATION • Take the unit out of the packaging. Check that it is in good condition. If in doubt, do not use it and contact professionally qualified personnel. Always place the unit under an aspiration hood. After installation, it will need to be levelled by using the feet.
-
Page 6: Checking For Gas Leaks
CHECKING FOR GAS LEAKS • Once installed, check there are no gas leaks from the pipe joints by using a soapy water solution. You will know if there are leaks by the foamy bubbles that form. Never use bare flames to check for leaks. - Page 7 • Changing the pilot nozzle (19): remove the panel (12), unscrew the small pilot connecting pipe, change the nozzle, inserting it and the small pilot connecting pipe in the nozzle holder together. Check that there are no gas leaks by using a soapy water solution. •...
- Page 8 USER INSTRUCTIONS LIGHTING THE GRILL PILOT Push the knob (8) and turn it counter clockwise round to the pilot position (spark symbol). Simultaneously press the piezoelectric lighter knob and button and the pilot burner will light. Keep the knob pressed for 10 to 15 seconds and then let it go. Check the flame is lit through the holes (22) on the panel (12).
-
Page 9: Maintenance, Cleaning And Care
MAINTENANCE, CLEANING AND CARE Always disconnect the appliance from the gas supply before embarking on any maintenance work. MAINTENANCE • There is very little maintenance to do thanks to the correct way the appliances have been made. However, we do advise having the systems checked by qualified personnel at least twice a year. - Page 10 10.1 EXPLODED FUNCTIONAL PARTS TABLE – LAVA STONE GRILLS FIG. 2 MOD. 65/40 GRL 65/70 GRL FIG. 3 FIG. 4 PILOTA CHIUSO PILOT,VEILLEUSE CLOSED, FERME' MAXIMUM MINIMUM ZÜNDFLAMME GESCHLOSSEM LAAS HOOG VAAKULAM DICHT...
