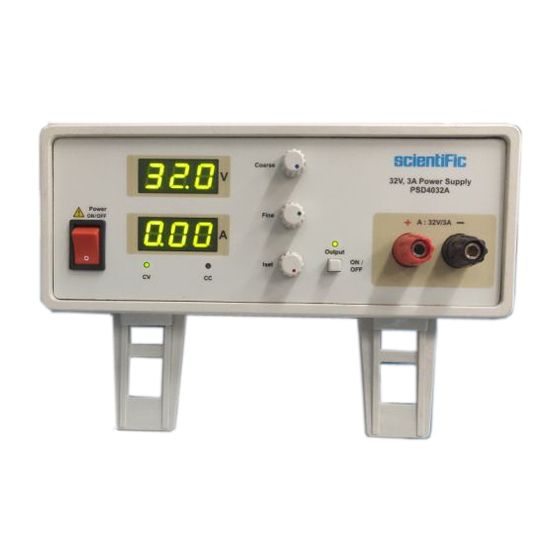

- Page 1 32V 3 A DC Power Supply PSD4032A User Manual...
- Page 2 Information in this manual supercede all corresponding previous released material. Scientific continues to improve products & reserves rights to amend part or all of the specifications, procedures, equipment at any time without notice. Ver 1.01 / 0717 Scientific Mes-Technik Pvt.
-
Page 3: Table Of Contents
32 V 3 A Power Supply PSD4032A Table of Contents Introduction Technical Specifications Front Panel Controls Operating Instructions General Information Safety Operating Conditions First Time Operation Operation Maintenance Power Line Fuse Replacement Despatch Procedure for Service Warranty Conditions User Manual PSD4032A... -
Page 4: Introduction
Output ON/OFF control Wide mains operation 190-270 V AC The PSD4032A is 32 V, 3 A DC Power supply. The power supply is designed as a constant current (CC) and constant voltage (CV), source for laboratories, industries and field testing applications, featuring Low Power Loss, compact and light weight. -
Page 5: Technical Specifications
Drift < + (0.5%+5 mA) within 8 hrs. Warm up at constant line, load & ambient temperature condition Temperature Coefficient : < + (0.05% + 10 mV/ C) Current Limit Adjustment : 100 mA to max approx User Manual PSD4032A... - Page 6 0 - 50° C , RH 95 % Dimension W : 196, H : 80, D : 340 (mm) Weight 3.75 kg (approx.) Accessories User Manual, Spare Fuse, Connecting Cables Note : * For line variation 230±10% User Manual PSD4032A...
-
Page 7: Front Panel Controls
Iset : Potentiometer for current limit setting. Adjustment range 0.1 A to 3.00 A. Output ON/OFF LED & Push Button : When pressed the DC output is available on terminals, with LED indication. Terminals : Output terminals User Manual PSD4032A... - Page 8 Rear Panel Controls Mains Fuse : Mains fuse , when open replace it with appropriate rating. Mains Inlet : Mains input to the power supply. User Manual PSD4032A...
-
Page 9: Operating Instructions
Operating Instructions General Information The logical front panel layout of PSD4032A ensures rapid familiarization with the various functions. However, even experienced operators should not neglect to carefully read the following instructions, to avoid any operational errors and to be fully acquainted with the instrument when later in use. -
Page 10: Operating Conditions
The ambient temperature range during operation should be between + 0 to +50°C and should not exceed. - 40°C or + 70°C during transport or storage. The operational position is optional, however, the ventilation holes on the PSD4032A must not be obstructed. -
Page 11: Maintenance
Maintenance There are no user serviceable part inside PSD4032A. Your PSD4032A Power Supply is thoughtfully engineered for ease of use, accuracy and reliability. The instrument is carefully tested and calibrated using standards traceable to National Laboratories. Take care of your instrument by cleaning the exterior of the instrument regularly with a dusting brush. -
Page 12: Despatch Procedure For Service
2. Dispatch the instrument (only on the receipt of our advise) securely packed in original packing duly insured and freight paid along with accessories and a copy of the faults details noticed at our Service Center listed on last page of this manual, nearest to you. User Manual PSD4032A... -
Page 13: Warranty Conditions
Warranty Conditions Scientific warrants all its Instruments to be free from defects in material and workmanship when used under normal operating conditions in accordance with the instructions given in the manual for a period of 12(Twelve) months from date of purchase from Scientific or its authorised dealers. The service during the warranty period will be rendered on return to factory/service center basis.
