- Page 1 CC220E Refrigerant Charging Scale OWNER’S MANUAL (English) TO BE OPERATED BY QUALIFIED PERSONNEL ONLY 1.800.561.8187 information@itm.com www. .com...
-
Page 2: Key Features

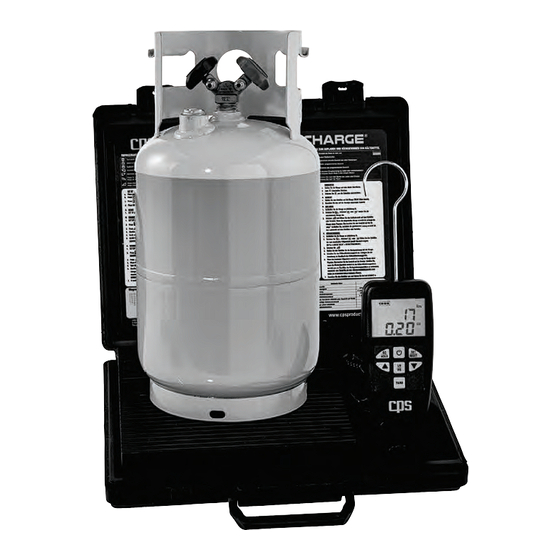

OVERVIEW The Compute-A-Charge CC220E is a battery operated, precision scale with a visual charge and recover alarm feature, for weighing, charging and recovering refrigerants used in HVAC/R systems. KEY FEATURES • Weight Capacity - 220 lb (100 kg) • Weight Accuracy - 0.015% of reading [or +/- selected resolution, whichever greater] •... -
Page 3: General Safety Instructions
7 BUTTON KEYPAD (FUNCTIONS & DEFINITIONS) 5. SET/RESET KEY 1. POWER KEY There are 5 modes to select and/or where a.Press to turn power ON or OFF. information can be entered: Scale (Weigh), Charge, Recover, APO, Resolution 2. UNITS KEY - Press to select a. -
Page 4: Specifications
GENERAL SAFETY INSTRUCTIONS (CONT’D) CAUTION: To avoid cross contamination of refrigerant and potential leakage to the atmosphere, proper hoses and fittings should be used and checked for damage. CAUTION: To avoid overfilling refrigerant tank, read and follow manufacturer’s recommended filling instructions for refrigerant being recovered and constantly monitor the scale display. -
Page 5: Lcd Display Abbreviations
LCD DISPLAY ABBREVIATIONS DISPLAY ABBREVIATIONS APO = Auto- MODES TO SCL= Scale CHg = Charge rEC = Recover rES = Resolution SELECT matic Power OFF c = Charge (track- F = Final programmed charge WHEN IN CHARGE MODE ing) in process achieved r = Recovery n = Net gain... - Page 6 CHARGE MODE (CONT’D) 7.When programmed charge amount (weight) has been reached, the screen will flash a large “F” (FINAL) (Figure C-7). Quickly close tank and/or manifold valves. 8. SHUT DOWN - When CHARGE function done, turn off recovery machine, close valves, remove cylinder from platform. Press to turn scale OFF.
- Page 7 RECOVER MODE (CONT’D) 7. TANK FILL LIMIT REACHED (OR EXCEEDED) While recovering refrigerant, be ready to turn OFF recovery machine and/or CLOSE valves, while constantly monitoring the display so that the tank will NOT be overfilled. Characters will flash if tank overfill has occurred and a “negative”...
-
Page 8: Appendix A ( Battery Level Indicator )
• Class F 100 lb weight S/N’s 2390, 1QNZ WARRANTY CPS Products, Inc. guarantees that all products are free of manufacturing and material defects to the original owner for one year from the date of purchase. If the equipment should fail during the guarantee period it will be repaired or replaced (at our option) at no charge.
