Cleveland NT-100 Operation Manual

Peristaltic pump filler

Advertisement

Quick Links

NT-100 Peristaltic Pump Filler
Operation Manual
866-888-6327
sales@clevelandequipment.com
3889 E Raines Rd
Memphis, TN 38118
www.clevelandequipment.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NT-100 and is the answer not in the manual?

Questions and answers

Summary of Contents for Cleveland NT-100

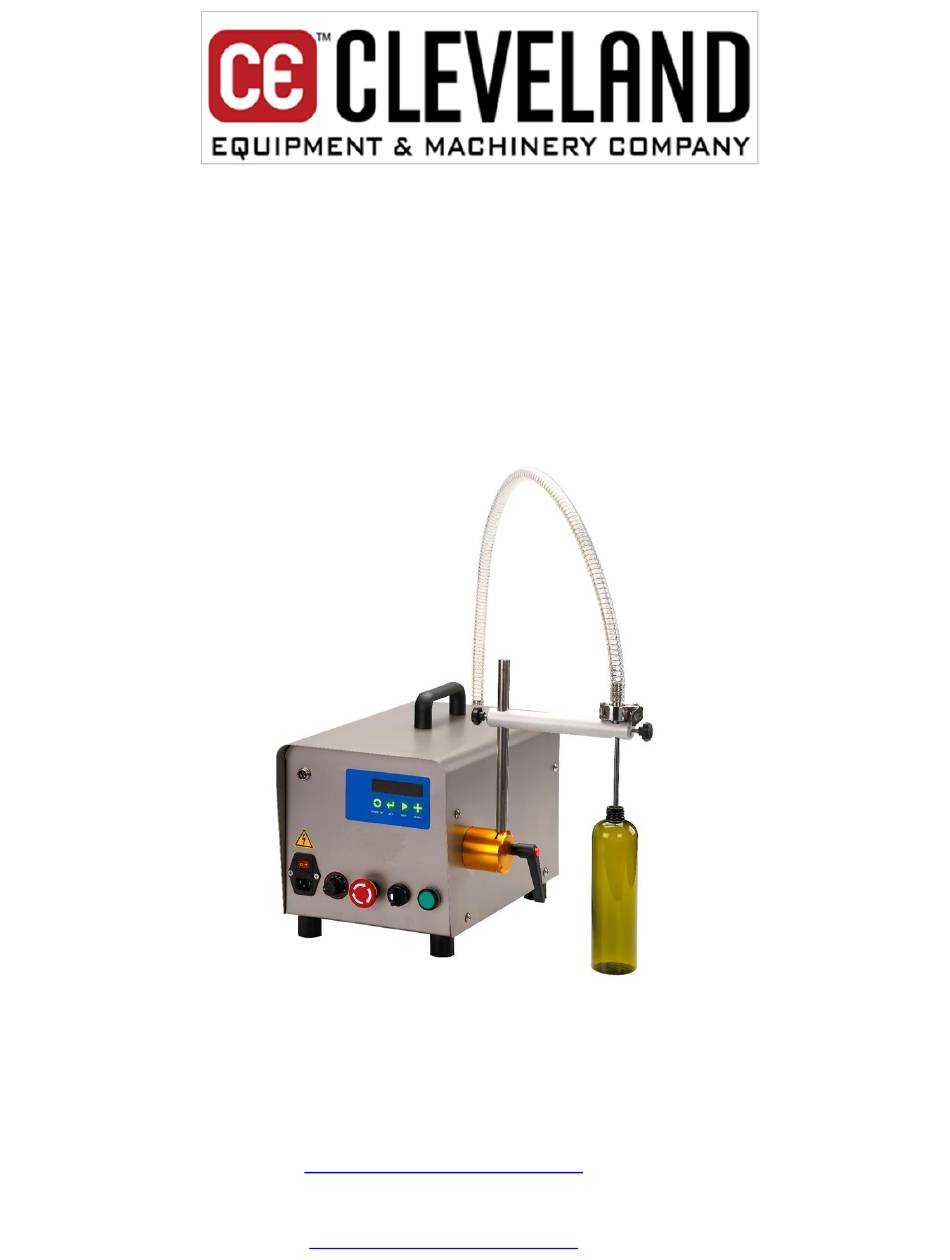

  • Page 1 NT-100 Peristaltic Pump Filler Operation Manual 866-888-6327 sales@clevelandequipment.com 3889 E Raines Rd Memphis, TN 38118 www.clevelandequipment.com...
  • Page 2 NT-100 Peristaltic Pump Filler Page 2...
  • Page 3: Table Of Contents

    NT-100 Peristaltic Pump Filler Contents 1 Safety Instruction ..............5 2 Product Description ..............6 2.1 Components ............... 6 2.2 Control Interface ..............7 2.3 Control Panel ..............8 2.4 Parameter Setting .............. 9 2.5 Technical Specification ............. 10 3 Before Operation ..............11 3.1 Connections ..............
  • Page 4 NT-100 Peristaltic Pump Filler Page 4...
  • Page 5: Safety Instruction

    NT-100 Peristaltic Pump Filler 1 Safety Instruction This manual is designed for operators who are not acquainted with the machine, so please follow the instructions to operate and adjust the machine step by step. If you cannot thoroughly understand some of the instructions, please ask experienced technicians for help or contact us.
  • Page 6: Product Description

    NT-100 Peristaltic Pump Filler roduct Description 2.1 C omponents liquid outlet side liquid inlet side Page 6...
  • Page 7: Control Interface

    NT-100 Peristaltic Pump Filler 2.2 C ontrol Interface 1. Power Switch / Socket for Power Supply Cable 2. Knob for filling speed adjustment - Clockwise: speed up. - Counterclockwise: slow down. 3. Emergency Stop Button 4. Knob for Filling Mode...
  • Page 8: Control Panel

    NT-100 Peristaltic Pump Filler 2.3 C ontrol Panel 1. TEST/RESET Keep pressing to reset the filling counter to zero. 2. SET Parameter choosing: for choosing the parameters you want to set. Parameter entering: setting the parameters, you need to push SET button for entering.
  • Page 9: Parameter Setting

    NT-100 Peristaltic Pump Filler 2.4 Parameter Setting P = Filling Volume 2.4.1 Push SET button, the screen will show P00000. 2.4.2 Enter the parameter for filling volume (please see P.4 for instructions). Ex: After adjusting the parameter to 00250, push SET again to finish setting the parameter.
  • Page 10: Technical Specification

    NT-100 Peristaltic Pump Filler 2.5 Technical Specification FG-100 Model 10–5000 ml Filling Range Filling Accuracy ± 1 % Power Supply 110 or 220 VAC; 50/60 Hz; Single phase Driven Device DC Motor Dimension (L) 475 mm × (W) 340 mm × (H) 305 mm...
  • Page 11: Before Operation

    NT-100 Peristaltic Pump Filler efore Operation Connections Step1 Open the pump. Step2 Open the gripper. Page 11...
  • Page 12 NT-100 Peristaltic Pump Filler Step3 Insert the tube into the slot. Step4 Close the pump. Page 12...
  • Page 13: Driven Pump And Dispensing Air

    NT-100 Peristaltic Pump Filler Driven Pump And Dispensing Air 3.2.1 Switch the filling mode to the left to Test Mode. (Marked 4 in the picture on the right.) 3.2.2 Adjust the filling speed over than 70. (Marked 2 in the picture on the right.)
  • Page 14: Operation

    NT-100 Peristaltic Pump Filler peration 4.1.1 Switch on the power and the screen will show the number “ 0 ”. 4.1.2 Turn the emergency stop button (as shown on P.3) clockwise to activate the function. 4.1.3 Place the bottle (or container),...
  • Page 15 NT-100 Peristaltic Pump Filler 4.1.4 Switch the knob for filling mode choosing to Test Mode, push the start button continuously until the required filling volume, and then note down the parameter shown on the screen. ★ Please push continuously, or the parameter will not be accurate for the filling volume.
  • Page 16 NT-100 Peristaltic Pump Filler 4.1.6 After setting, the screen will show the value “ 0 ” again, and the filler is ready for operating. 4.1.7 While filling, the screen will show the number of the bottles (or containers) being filled to assist the...
  • Page 17: Maintenance

    NT-100 Peristaltic Pump Filler 5 Maintenance 5.2.1 Be sure to dry the hands before operating the machine for setting and adjusting to prevent from getting electric shocks or causing short circuit. 5.2.2 Avoid filling materials that is higher than 400C because liquids with higher temperature will cause resistance overloading of the control components and then affect the life span of the machine.
  • Page 18: Troubleshooting

    NT-100 Peristaltic Pump Filler 6 Troubleshooting Trouble(s) Possible Causes & Solutions 1. Check if the power switch is ON. (switch to “ - ” ) 2. Check if the emergency button is ON. Out of Power 3. Check if the power supply cable is loose or broken.
