Summary of Contents for Rockville Power GIG RPG-082K

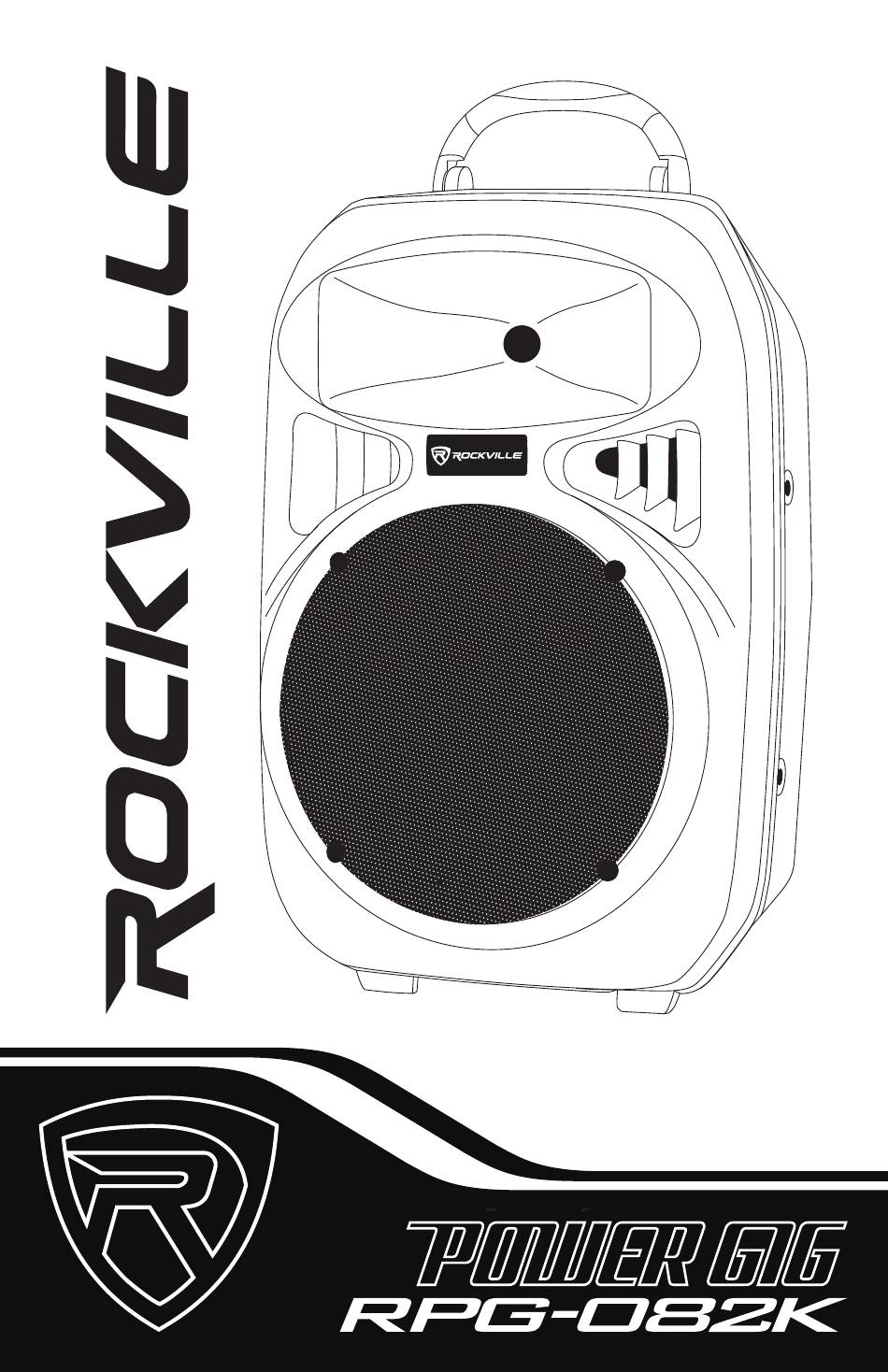

  • Page 1 OWNER’S MANUAL...

  • Page 2: Important Safety Instructions

    Thank you for purchasing this Rockville RPG082K pro audio speaker system. Please read this owner’s manual carefully for proper use of your RPG082K. Should you need technical assistance, please call our technical help line at 1-646-758-0144, Monday through Friday, 9am to 5pm EST.
  • Page 3 It is therefore recommended that when setting up your system you set up your speakers on speaker stands, such as the Rockville model RVSS-2 (not included) so that the tweeter sounds will radiate above the listening crowd. This will guarantee optimum sound disper- sion and achieve clear vocal sound reproduction.

  • Page 4: Mounting The Speaker

    Assembling Your Power Gig Professional Sound System RPG122K shown for display purposes. Actual equipment (speakers/stands) may differ slightly. Stands 1. Remove the stands from their packaging and examine them to ensure that they are in proper working order. 2. Loosen up the adjustment knob (fig. a) and spread the legs to the desired width (fig.
  • Page 5 fig. h fig. i Connecting the Passive Speaker To connect the passive speaker to the active unit, use the included ¼˝ to ¼˝ cable. Connect one end of the cable to the ¼˝ port on the active unit marked SPEAKEROUT (fig. j). Now con- nect the other end to the ¼˝...

  • Page 6: Line Input

    Setting Level Controls It is best practice to set your input volume (gains) in this manner: 1. Unplug all inputs except for the one you wish to set the gain for. In this instance, the AUX 1 RCA inputs. 2. Set the line level input device volume (smart phone, tablet, MP3 player, etc.) to 60%. 3.

  • Page 7: Aux Input

    2. Connect the music source to the combo XLR/ ¼˝ TRS input labeled LINE IN using an XLR or ¼˝ TRS cable. 3. Switch ON your RPG. 4. Refer to the “Setting Level Controls” section of this manual for instructions on how to properly adjust the input volume (gains).

  • Page 8: Speaker Out

    XLR, XLR to ¼˝, or a ¼˝ to ¼˝ cable to share the signal. We recommend you use high qual- ity cables such as Rockville’s RCXFM20E-B XLR to XLR cable, the RCXMB20-B XLR to ¼˝ TRS cable, or the RCTR series ¼˝ TRS to ¼˝ TRS cables. Do not use both outputs at once.

  • Page 9: Fuse Replacement Diagram

    Fuse replacement Diagram Fuse type: 250V 5A Remote Control Functions 1. Power 2. Mode selection buttons 3. BT: used to select BT mode 4. AUX 2: used to acces the LINE IN Combo XLR / ¼˝ line input 5. TUNE+/-: use to manually tune FM stations 6.
  • Page 10 Features...
  • Page 11 1. USB input 2. SD card input 3. MP3 Player controls • CH-/ and CH+/ : press to select tracks in USB, SD, and BT mode or select stations in FM radio mode. • AUTO/ : press button once to play track, press again to pause. In FM radio mode press and hold to scan and save available stations.
  • Page 12 Features (continued) • 500 watts peak/250 watts program power/125 watts RMS • Built-in high efficiency class D digital amplifier • High power 8˝ long-throw woofer a with 1˝ high end tweeter • 25mm compression horn drivers • Bluetooth module built-in •...

  • Page 13: Troubleshooting

    Troubleshooting PROBLEM SOLUTION 1. Make sure the unit is plugged in and the power switch is in the No power ON position. 2. Check that the power cable is plugged in tightly. 3. Check and replace the fuse if necessary. See fuse replacement diagram on page 9.
  • Page 14 FEDERAL COMMUNICATIONS COMMISSION COMPLIANCE INFORMATION Responsible party name: Rockville Address: 600 Bayview Ave. Entrance A Inwood, NY 11096 Hereby declares that the product(s) RPG082K complies with FCC rules as mentioned in the following paragraph: This device complies with Part 15 of the FCC rules. Operation is subject to the following...
  • Page 16 RockvilleAudio.com © 2020 ROCKVILLE // Features and specifications are subject to change and/or improvement without notice.
